INSTALLATION INSTRUCTIONS Installation
10MAR06
II4825-1
Page
20 of 72

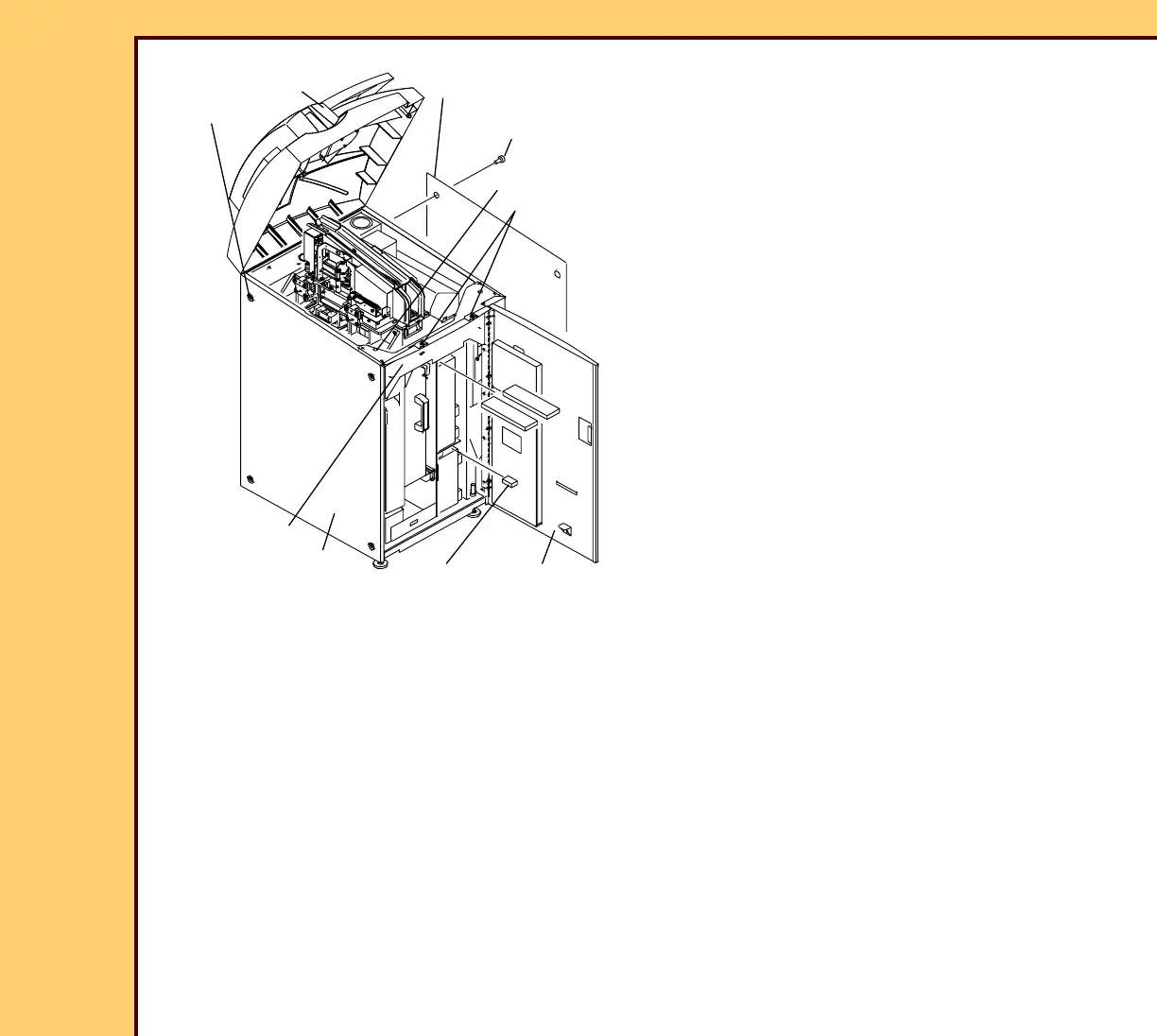

41 Install:
• RIGHT PANEL
• 2 SCREWS
• LEFT PANEL
• 2 SCREWS
• CROSSBRACE
• 7 SCREWS
42 Close the TOP COVER.
H194_0101GC
H194_0101GCA
RIGHT
2 SCREWS
LEFT PANEL
MATERIAL
FOAM PACKING
DOOR
FRONT
2 SCREWS
TOP COVER
7 SCREWS
CROSSBRACE
PANEL
2 SCREWS
