INSTALLATION INSTRUCTIONS Installation
10MAR06
II4825-1
Page
27 of 72

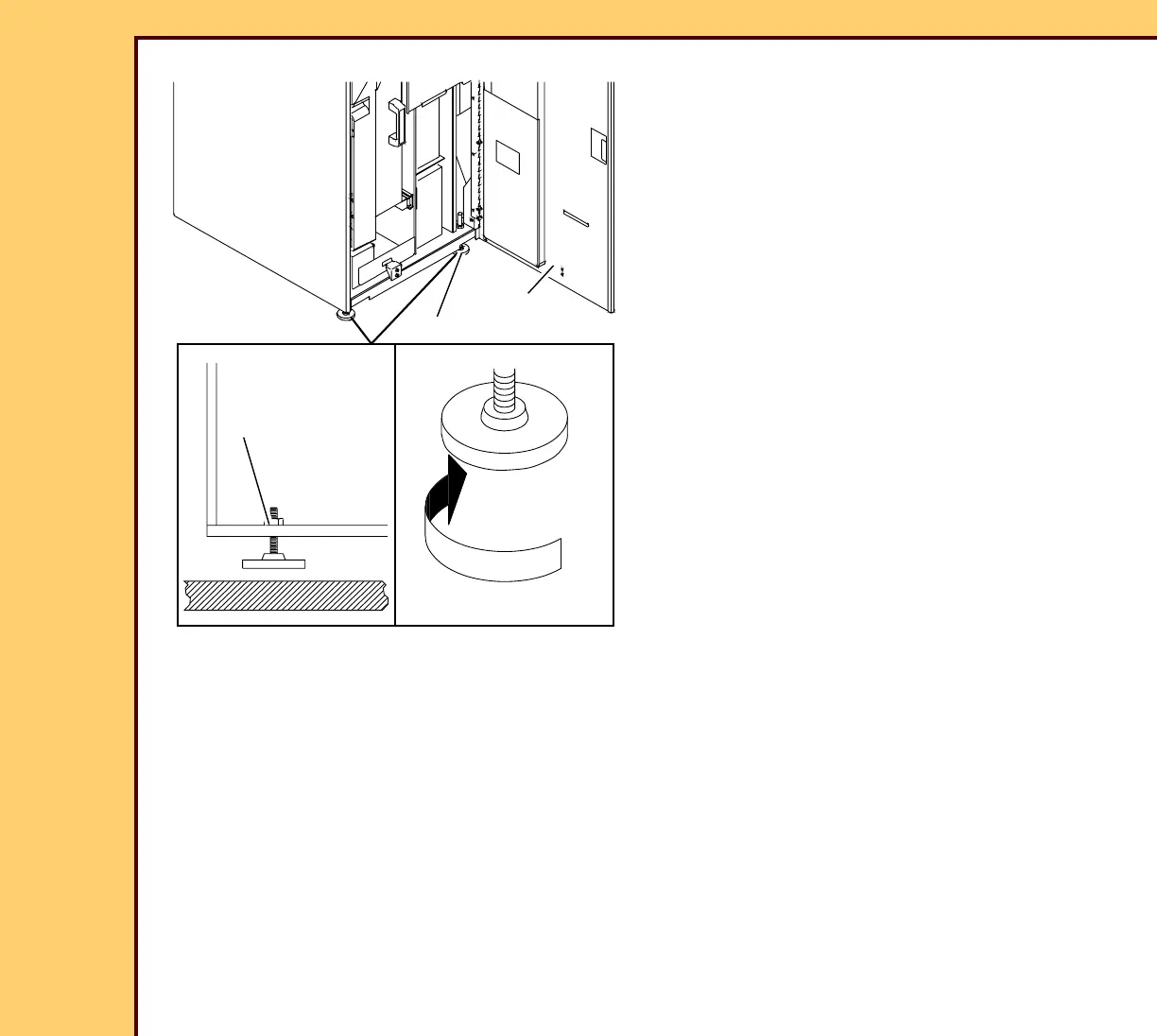

17 Place the system in the correct position
at the site.
18 Open the FRONT DOOR.
19 Loosen the 2 LOCKING NUTS.
20 Rotate the 2 HOLD DOWN FEET until
the HOLD DOWN FEET make contact
with the floor.
21 Tighten the 2 LOCKING NUTS.
H177_0132GC
H177_0132GCA
NUTS
2 LOCKING
FRONT DOOR
2 HOLD DOWN FEET
