Additional Service Procedures
SM8720-1 – 15APR10 55

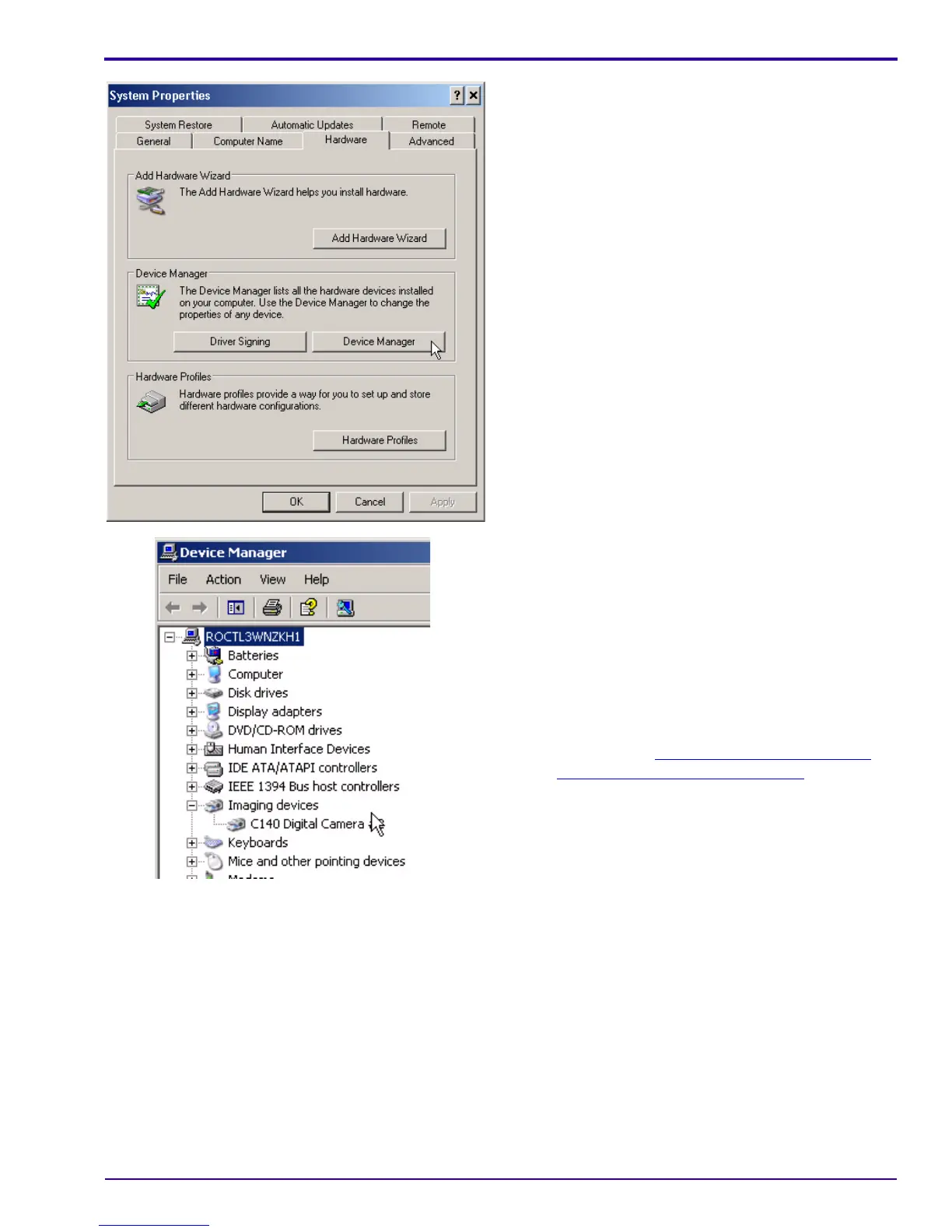

[21] At the “System Properties” window, select the
“Hardware” tab.
[22] Click [Device Manager].
[23] Double-click the “Imaging devices” icon.
[24] Check that “C140 Digital Camera” displays.
[25] Close all windows.
[26] De-energize the CAMERA.
[27] Remove the USB CABLE from the CAMERA.
[28] When the computer displays the “Desktop”,
double-click the “Vista for Service” icon.
[29] Energize the CAMERA.
[30] Connect the USB CABLE to the CAMERA.
[31] Continue with “
Doing the Configuration of the
SERVICE SOFTWARE” on Page 56.
