Kodak EASYSHARE C140 Service Manual

Replacements
SM8720-1 – 15APR10 47
Section 5: Replacements
LCD
Prerequisites:
[1] Do the procedure “MAIN BOARD, LCD - “Select LCD”” on Page 44.
[2] See the “
COVER AYs, BATTERY DOOR AYs and LCD” on Page 9. Remove:
• BACK COVER AY
• FRONT COVER AY
To Remove:
Caution
Dangerous Voltage
[1] Do a discharge of the FLASH CAPACITOR.
[2] Remove:
• 3 SOLDER JOINTS
• SCREW
[3] Remove the LCD HOLDER.
[4] Do a complete turnover of the LCD.
[5] Disconnect the FPC from the CONNECTOR.
[6] Remove the LCD.

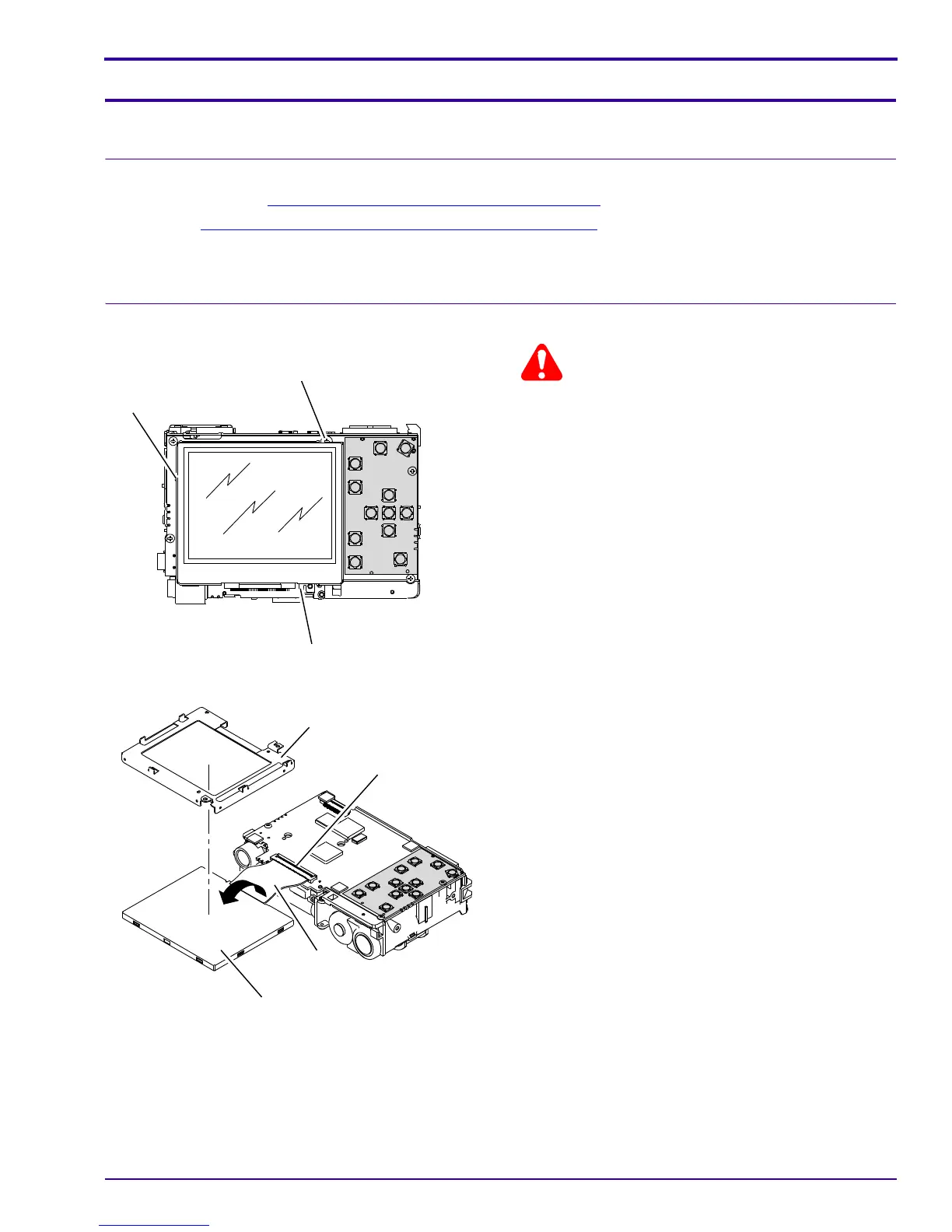

P291_1006AC
SOLDER JOINT
SOLDER JOINT
SCREW
P291_1006ACB
P291_1007AC
P291_1007ACA
MONITOR LCD
HOLDER
MONITOR
LCD
FPC
CONNECTOR

Kodak EASYSHARE C140 Specifications

General

Resolution	8.2 Megapixels
Optical Zoom	3x
LCD Screen Size	2.4 inches
Storage Media	SD/SDHC card
Type	Compact
Digital Zoom	5x
Sensor Type	CCD
Image Sensor Size	1/2.5 inch
Video recording	Yes
Battery Type	AA
Shutter Speed	1/1400 sec - 8 sec
Video Resolution	VGA (640 x 480)
ISO Sensitivity	80, 1600
