Illustrated Parts List
SM8720-1 – 15APR10 13
Caution
Dangerous Voltage
You must do a discharge of the STROBE CAPACITOR after you remove the FRONT COVER AY.
The LENS AY with the CCD also has a RUBBER BOOT and an UV-IR CUT FILTER that must remain with the
LENS AY.
For replacement of the LENS AY only, you must:
remove the new CCD from the new LENS AY
use the old RUBBER BOOT and the old UV-IR CUT FILTER
install the new LENS AY with the old CCD
For replacement of the LENS AY and the CCD:
remove the old CCD from the MAIN BOARD
remove the new CCD from the LENS AY
install the new CCD onto the MAIN BOARD
install the new RUBBER BOOT, UV-IR CUT FILTER and LENS AY
For replacement of the CCD only:
remove the old CCD from the MAIN BOARD
remove the new CCD from a new LENS AY
install the new CCD onto the MAIN BOARD
New CCDs and UV-IR CUT FILTERS are available for replacement parts.

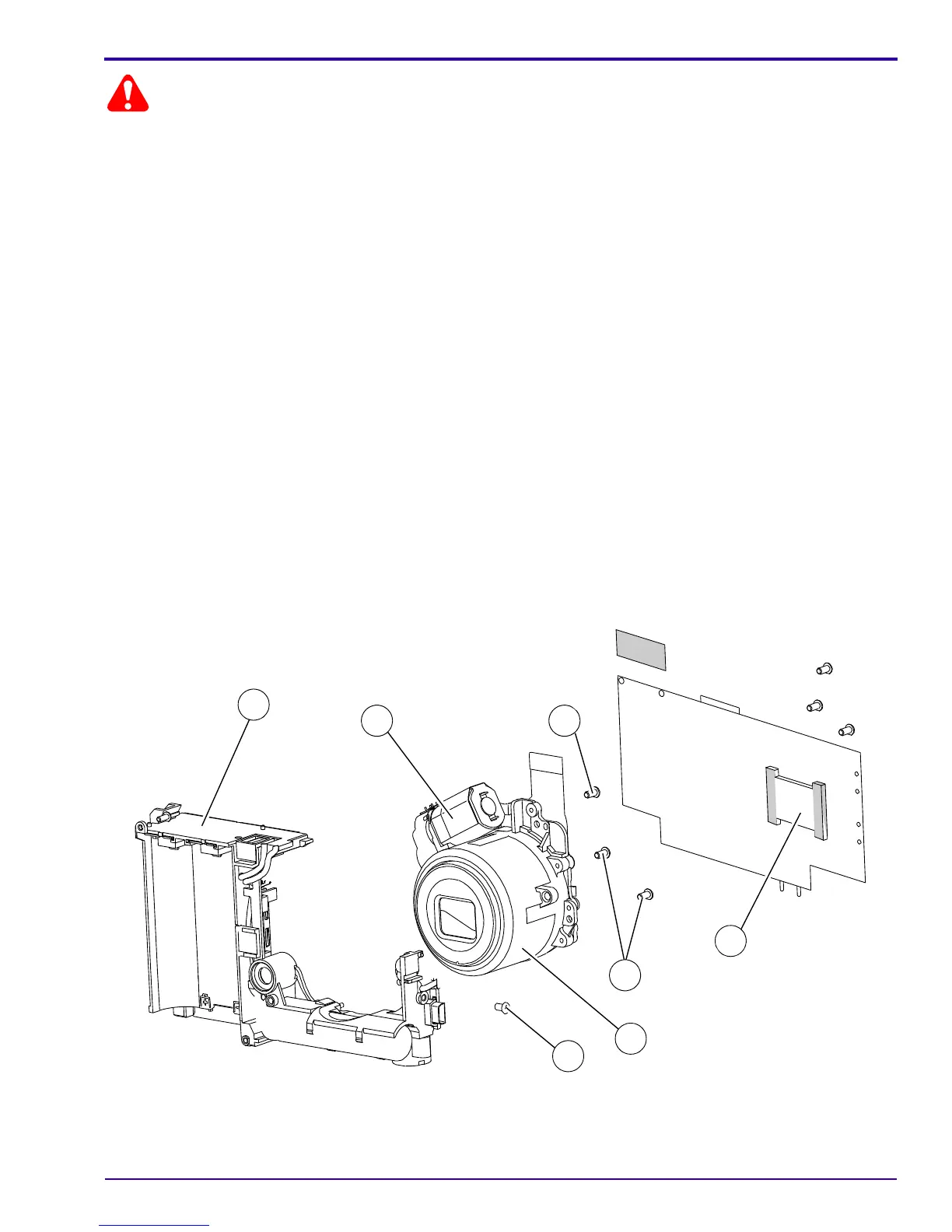

Figure 3 LENS and FRAME AYs
P323_1004HC
1
2
2
3
4
5
6
P323_1004HCA
1
2
3
4
5
6
2
