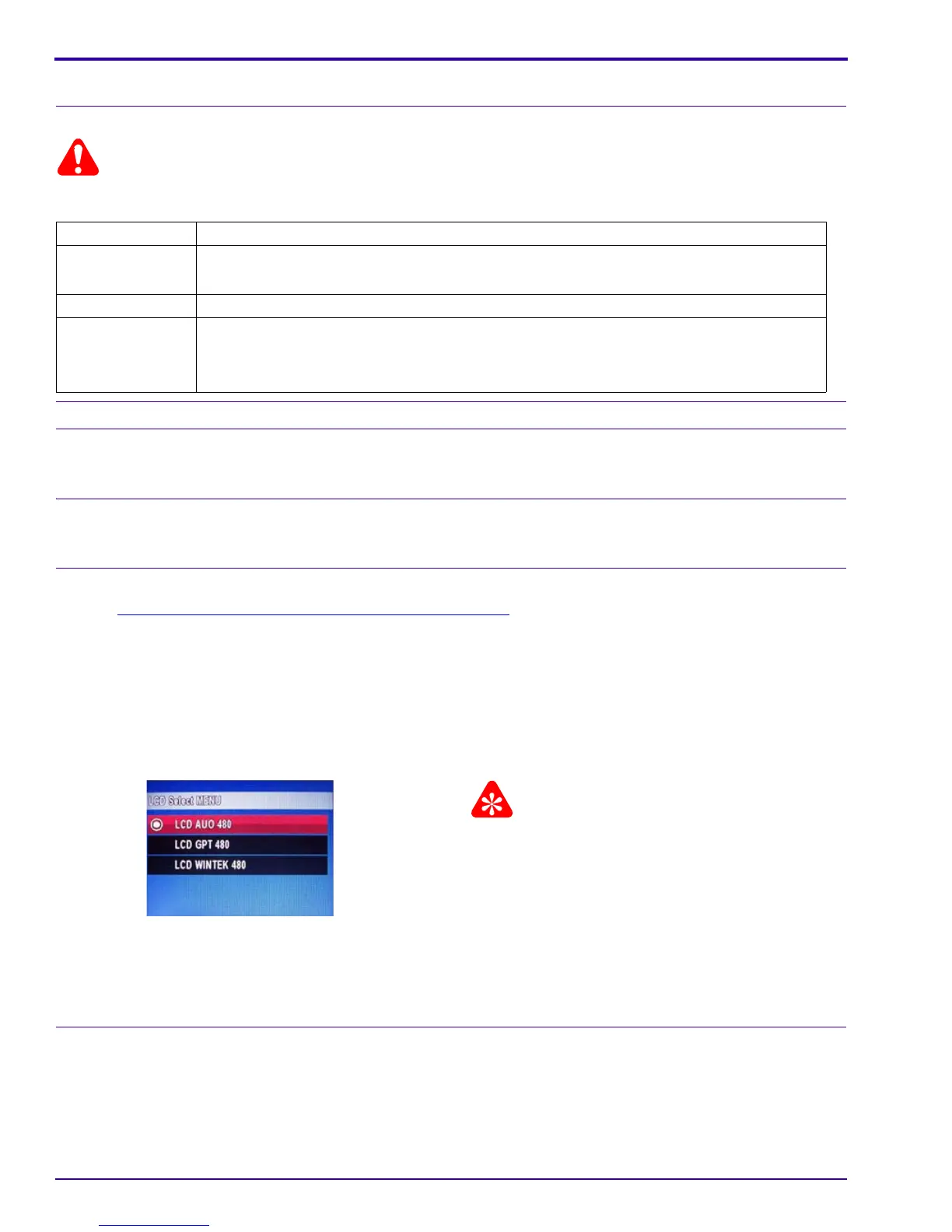

SERVICE MANUAL
44 15APR10 – SM8720-1
MAIN BOARD, LCD - “Select LCD”
Dangerous Voltage
Prerequisites:
None
To Check:
You cannot check this adjustment.
To Adjust:
[1] Do Preparing the “Select LCD” MEMORY CARD on Page 63.
[2] Insert into the CAMERA:
• BATTERIES with a full charge
• “C140 Select LCD” MEMORY CARD
[3] Energize the CAMERA.
[4] If the LCD displays “Set Date & Time”, select “Cancel”.
[5] Check that “Script Loading...” displays on the LCD.
The replacement LCD is the type AUO.
[6] When the test menu displays, select the correct
type of LCD.
[7] Press the “OK” BUTTON.
[8] De-energize the CAMERA.
[9] Remove the MEMORY CARD from the CAMERA.
[10] Energize the CAMERA to check that the LCD displays information correctly.
[11] De-energize the CAMERA.
Postrequisites:
None
Purpose: To set the type of the LCD.
Do When: • After installing a new MAIN BOARD.
• Before installing a new LCD.
Specification: No failure messages or red screen display.
Special Tools: • Computer with a MEMORY CARD READER/WRITER
• BATTERIES for the CAMERA
• MEMORY CARD
