Replacements

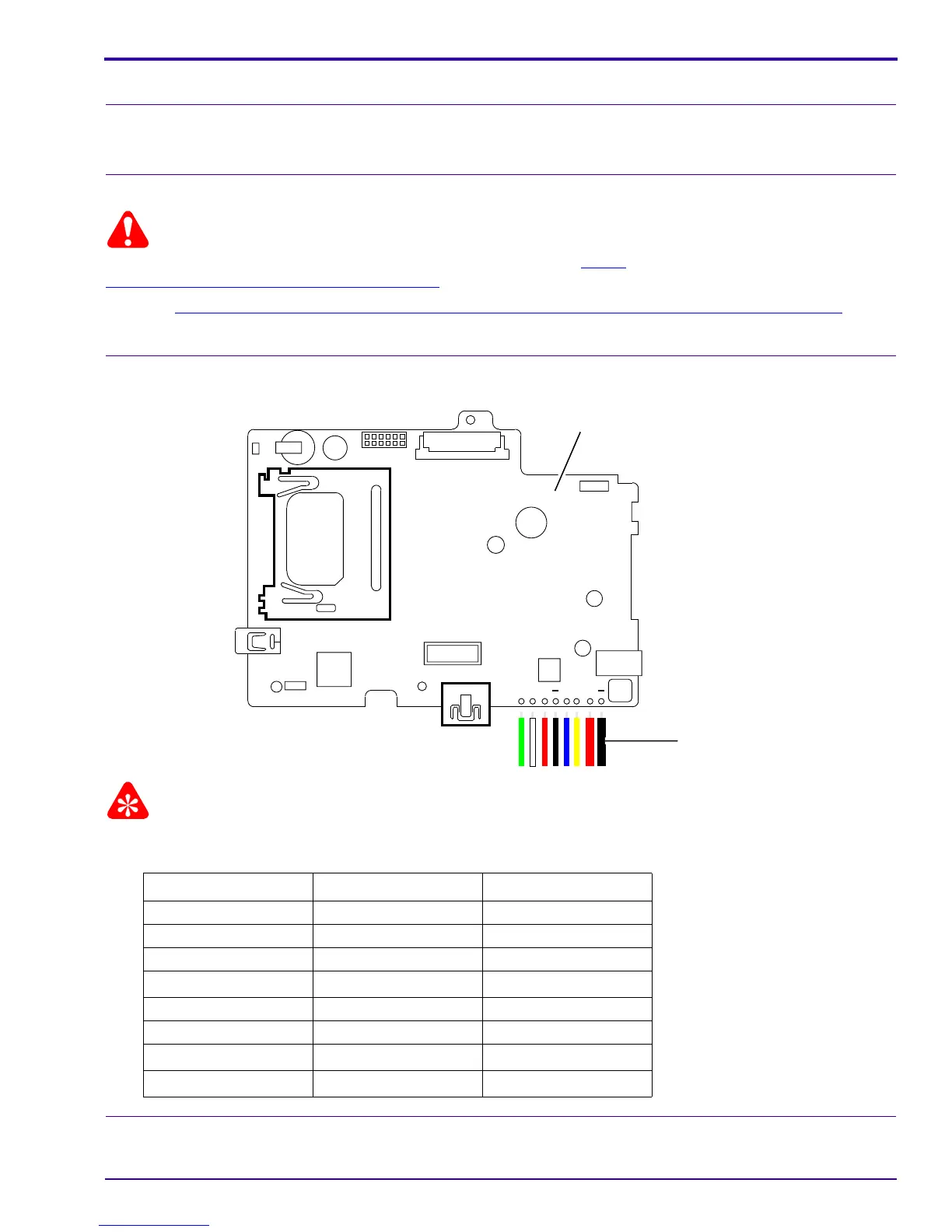

SM1399-1 – 19JUN06 47
MCU BOARD
Prerequisites:
None
To Remove:
Caution
To prevent injury, you must do a discharge of the CAPACITOR - see Step 1 in To Remove: for the
POWER BOARD AND FRAME AY on Page 44.
[1] See LENS AY AND MCU BOARD, POWER BOARD AND FRAME AY, SHUTTER BOARD
on Page 13 for the
parts diagram.
To Install:
Important
You must install the large red and black wires on the right.
[1] Solder each WIRE at the correct CONTACT on the MCU BOARD:
Postrequisites:
None
CONTACT Size of WIRE Color of WIRE
G small green
W small white
Rsmallred
-
small black
Bsmallblue
Y small yellow
+
large red
-
large black
GWR BY +
P273_1006BC
MCU BOARD
WIRES
P273_1006BCA
