Kodak EasyShare C643 Service Manual

Illustrated Parts List
SM1399-1 – 19JUN06 13
Caution
Before removing the LENS AY AND MCU BOARD, you must:
• remove the SOLDER from the SOLDER JOINTS
• do a discharge of the CAPACITOR at the CONTACTS - see Step 1
in To Remove: for the
“
POWER BOARD AND FRAME AY” on Page 44

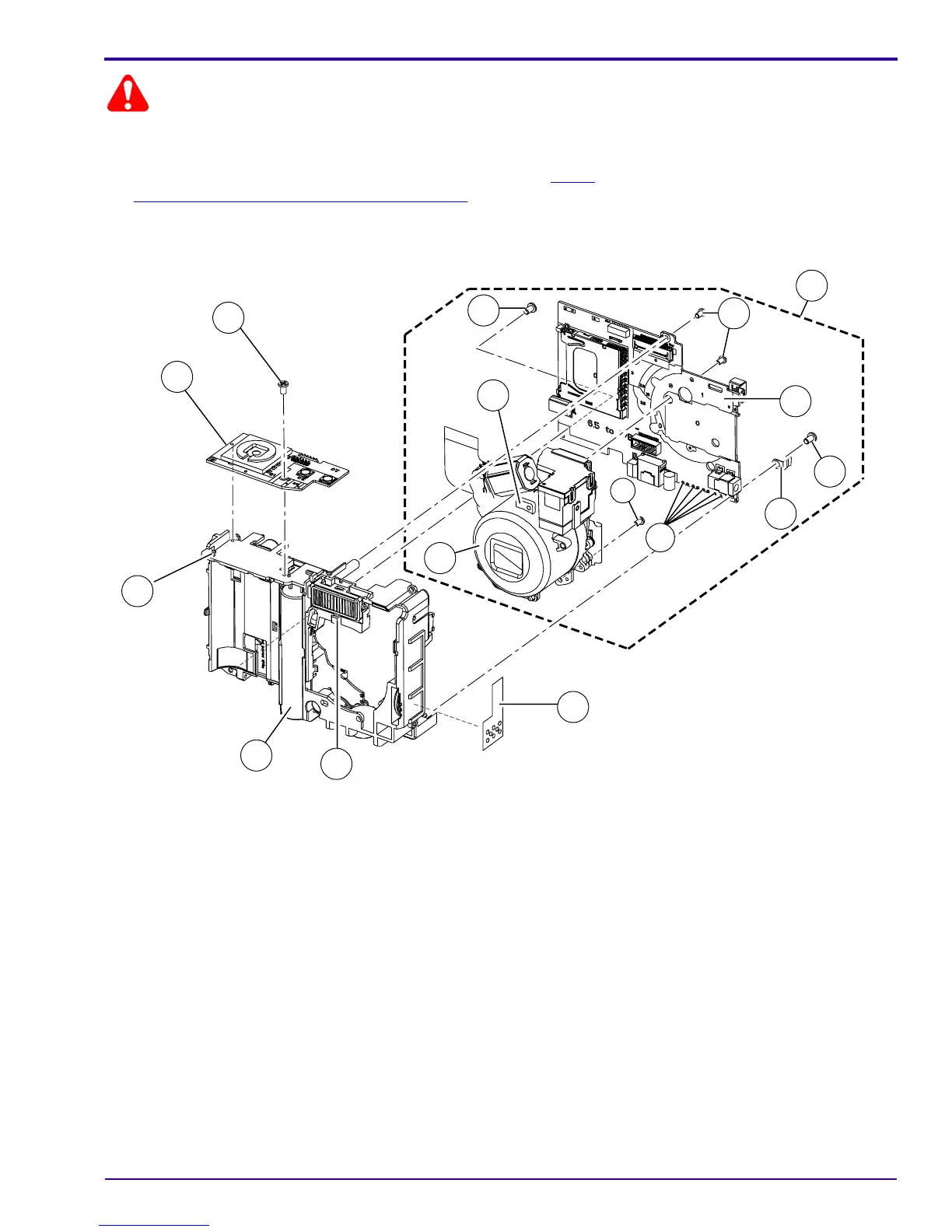

Figure 3 LENS AY AND MCU BOARD, POWER BOARD AND FRAME AY, SHUTTER BOARD
P273_1003HC
10
6
6
P273_1003HCA
6
6
7
4
3
2
1
5
8
9
6
11
12
1
2
3
4
5
6
6
6
7
6
8
9
10
6
11
12
