SERVICE MANUAL
38 19JUN06 – SM1399-1
MASTER CAMERA - “Calibration of the MASTER CAMERA”
Adjustment Specification
Important
Do not use the CAMERA DOCK in this procedure.
Prerequisites:
[1] Do MCU BOARD/LENS AY - “Shutter Delay” on Page 36.
To Check:
You cannot check this adjustment.
To Adjust:
Important
• The C643 CAMERA and MEMORY CARDS are used for the examples in this procedure.
• The procedure can be used for:
– C643 CAMERA
– C603 CAMERA
• If you are doing a calibration of the C603 CAMERA, use the correct MASTER CAMERA and MEMORY CARDS
made for that CAMERA in the procedure in Step 1
.
[1] Do Preparing the “C643_C603 Master Camera” MEMORY CARD
on Page 68.

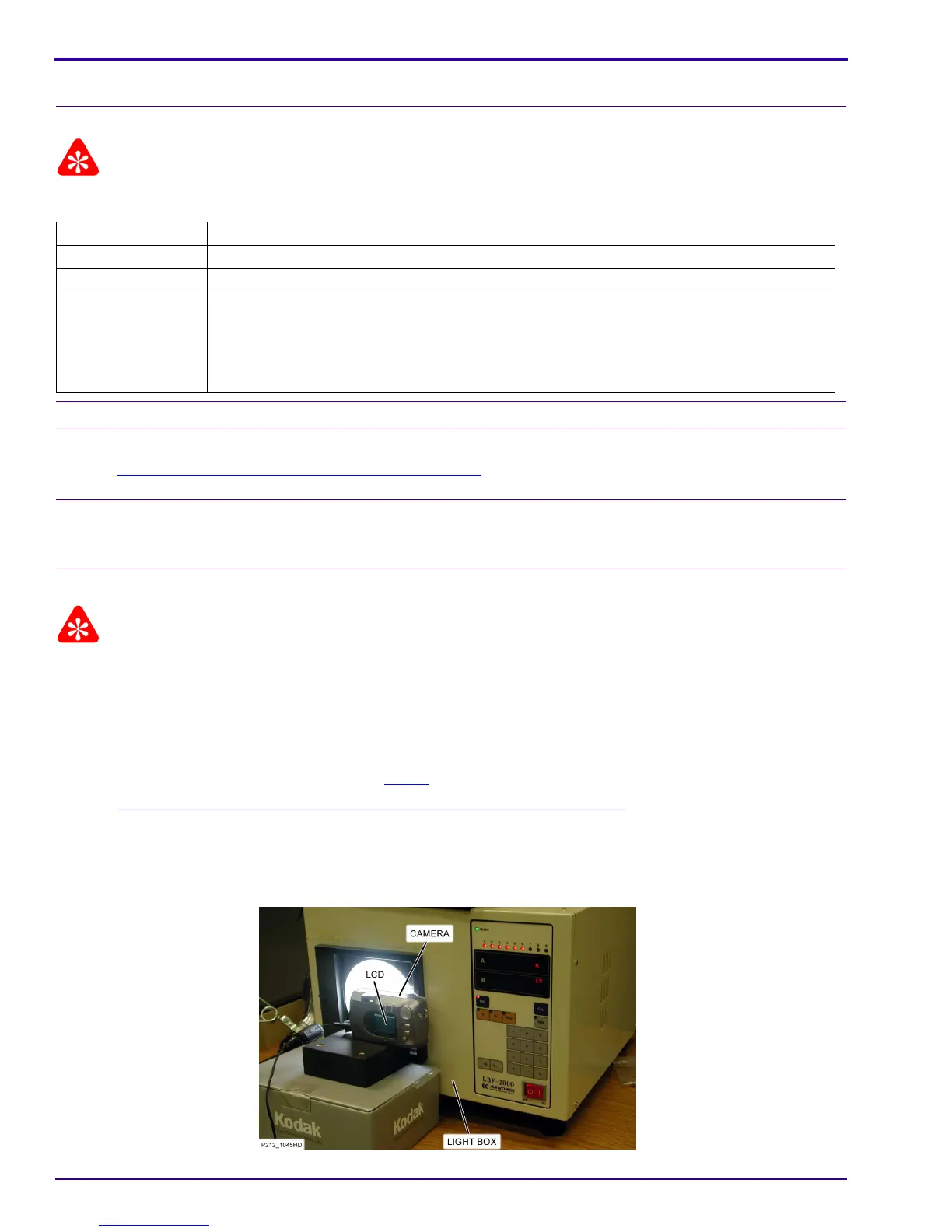

[2] Insert:
• new BATTERY with a full charge into a MASTER CAMERA for the C643 CAMERA
•“C643_C603 Master Camera” MEMORY CARD into the CAMERA
Purpose: To set the values for Automatic White Balance, ISO, and ID of the MASTER CAMERA.
Do When: Before calibrations of this type of CAMERA.
Specification: No failure messages display.
Special Tools: • Computer with a MEMORY CARD READER/WRITER
• BATTERY
• LIGHT BOX
• SD/MMC MEMORY CARDS
To Next Page
