Replacing the lower imaging guide (for all scanner models)

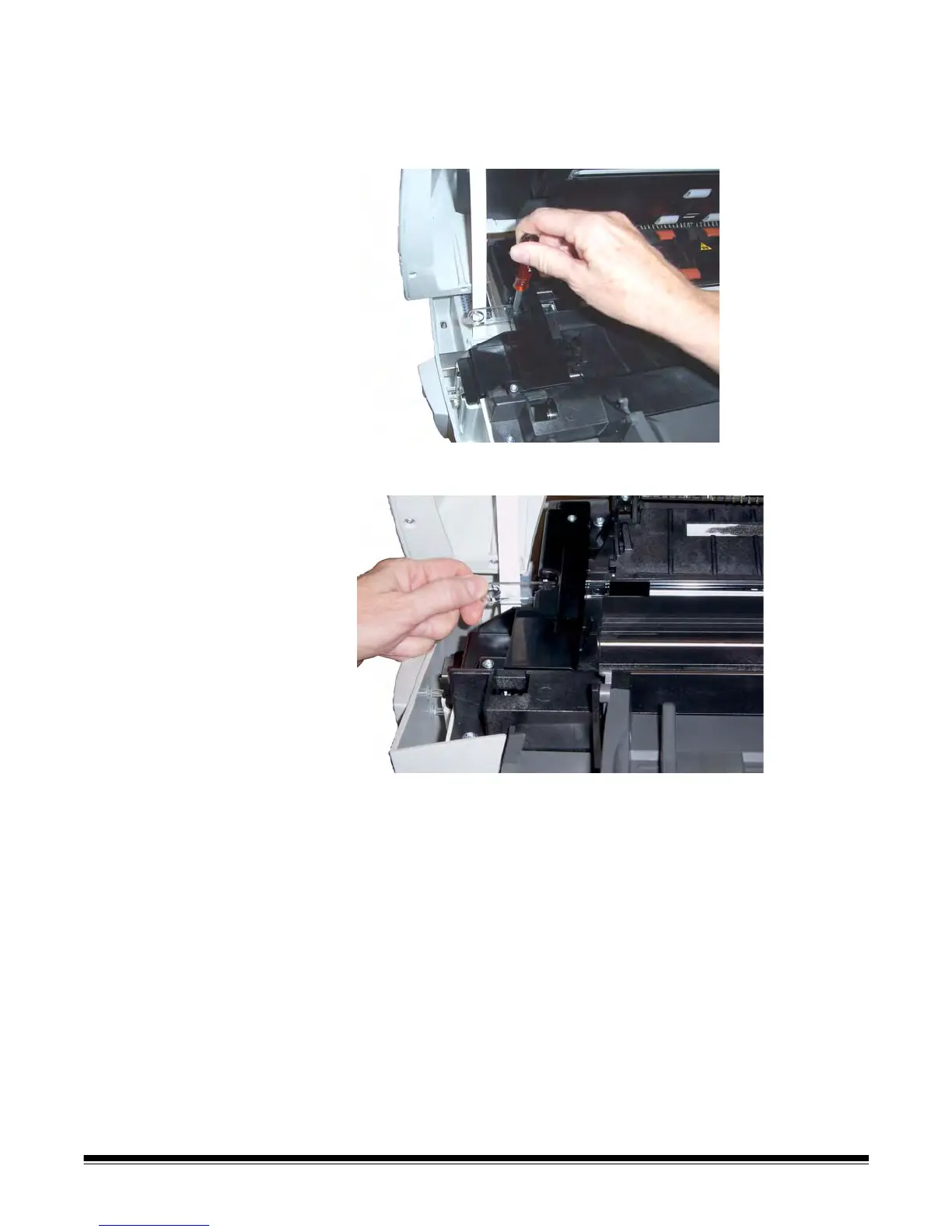

1. Locate the lower imaging guide.
2. Using a Phillips Head screwdriver, loosen the screw from the lower
imaging guide.
3. Slide the imaging guide out of the bracket and remove it from the
scanner.
4. Discard the used imaging guide.
5. Remove any dust or debris from the guide track. Do not allow debris
to fall into the scanner.
6. Wipe both sides of the new lower imaging guide with a fresh
Staticide Wipe.
7. Dry both sides of the new lower imaging guide with a dry Staticide
Wipe.
8. Align the new lower imaging guide in the guide track and slowly
push it in.
9. Reinstall and tighten the screw.
10.Close the scanner cover.
