Scan Station
components
Front view
1
2
3
4
5
6
7
8

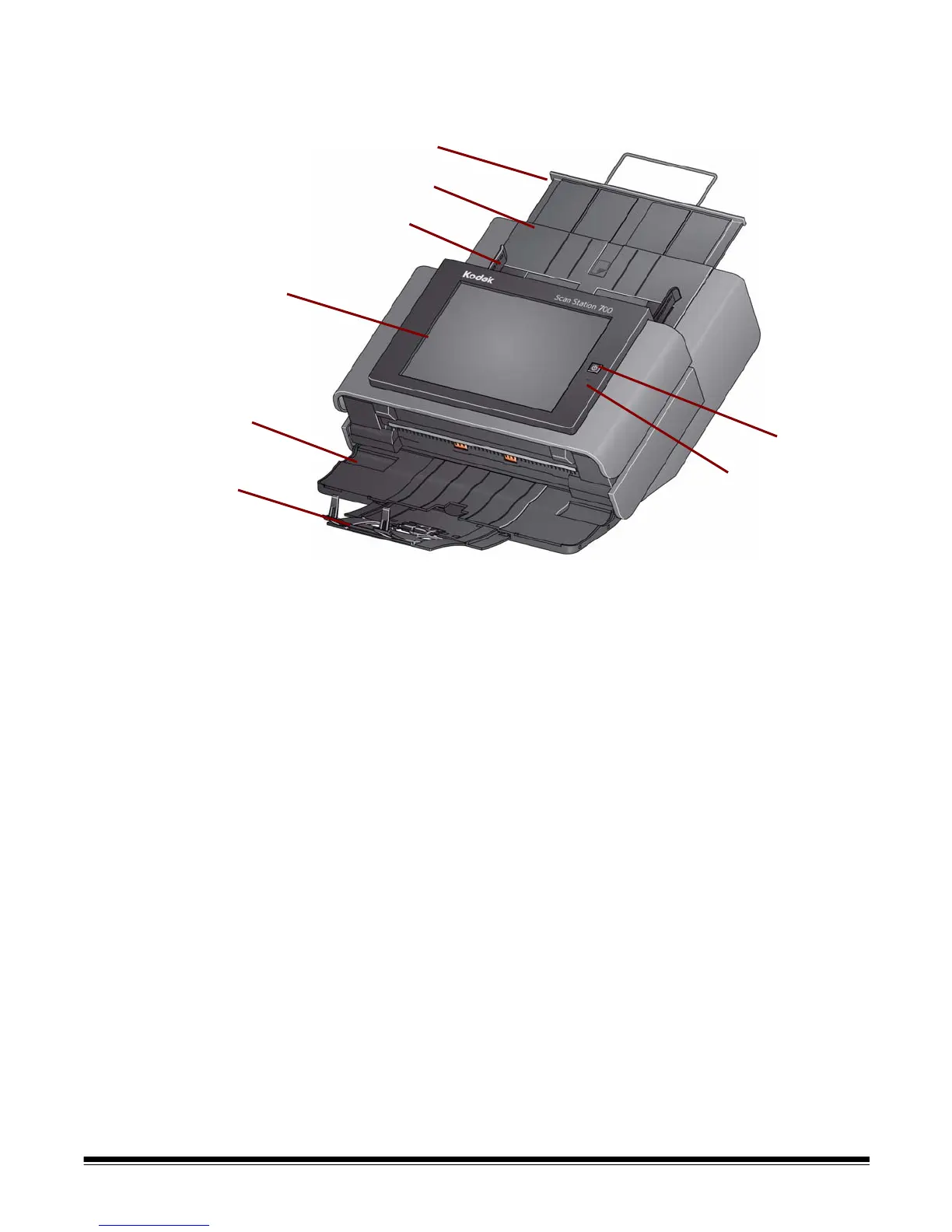

1 Input tray extender — pull this extender out to accommodate document
sizes over 8 1/2 x 11 inches (A4).
2
Input tray — holds up to 75 sheets of 80 g/m
2
(20 lb.) paper.
3 Side guides — slide the guides back and forth to accommodate the width
of the documents you want to scan.
4 Touch screen — allows you to easily select a job or navigate through
optional selections with a simple touch. The touchscreen is the primary
user interface for interacting with the Scan Station.
5 Output tray panel — covers the transport when not in use. This panel
must be open to scan documents. When opened, collects the scanned
documents. The Scan Station cover cannot be opened when the output
tray panel is closed.
6 Output tray extender — pull this extender out when scanning documents
longer than 11 inches (28 cm).
7 Microphone — used for creating voice annotation.
8Power — turns the power on. See the section entitled, “Indicator lights” in
Chapter 11 for more information.
