10-10 A-61796 September 2014
Replacing the feed module
and tires
NOTE: The paper present sensor is located to the left of the feed
module. Be careful not to damage the paper present sensor
when removing or cleaning around the feed module.

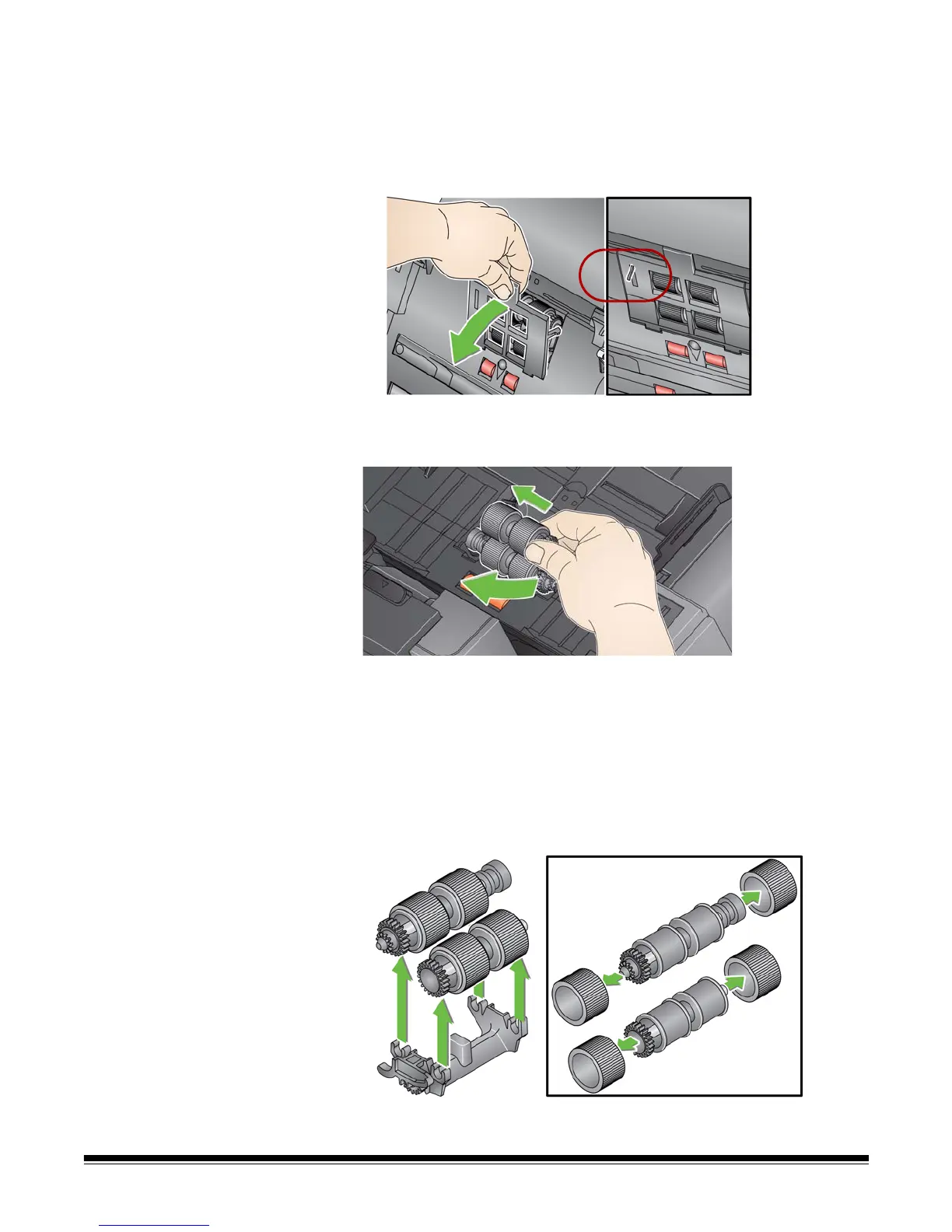

1. Pull against the raised edge of the feed module cover and lift it up
and out of position.
2. Rotate the feed module forward and push it to the left to lift it out of
position.
• If you are replacing the feed module, insert the new feed module
by aligning the pins and pushing it toward the left to fit it into
position. Be sure the gears are aligned and it snaps into place,
then go to Step 8.
• If you are replacing the tires, continue with Step 3.
3. Remove one core assembly by lifting up and out of position.
4. Remove each tire by sliding the tire off the core.
