- 27 -
KD 625-2 Workshop Manual_cod. ED0053029380_1° ed_ rev. 00
4
2
3
4

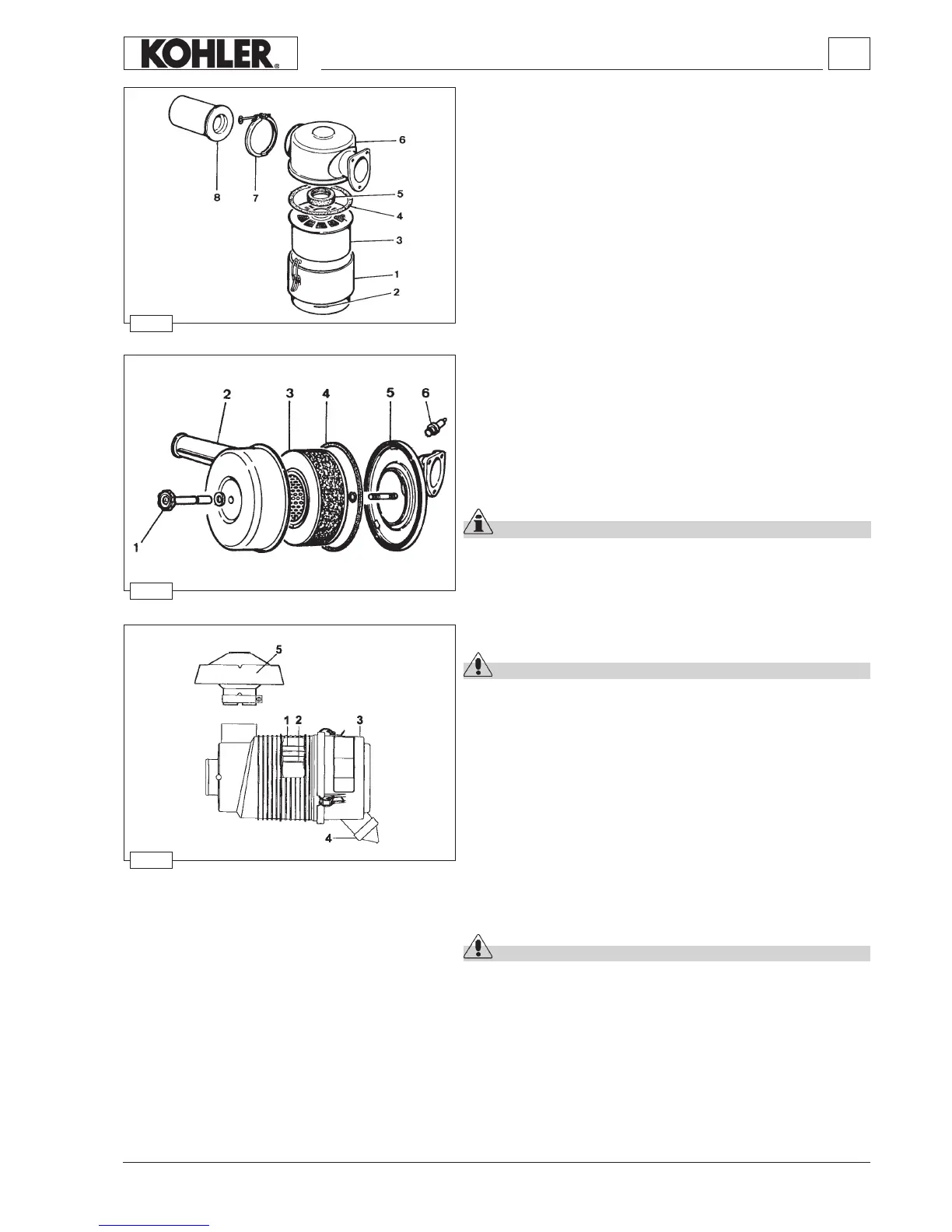

Disassembly / Reassembly
Components:
1 Bowl
2 Oil level mark
3 Filtering element
4 Seal ring
5 Internal seal ring
6 Cover
7 Clamp
8 Prelter
Dry air cleaner, Donaldson type
Danger - Attention
Never clean the lter element using highly ammable solvents.
It could cause an explosion!
In order to know how often you should check and replace the air
lter cartridge and the rubber hose (air lter – intake manifold) see
page 22.
1 Main cartridge
2 Safety cartridge
3 Axial cover
4 Scavenging valve
5 Cap complete with clamp
Scavenging valve 4 must be positioned as in gure 4.
Danger - Attention
During repair operations, when using compressed air, wear eye
protection.
The cartridge can be cleaned by blowing compressed air breadthways
outside and inside the cartridge, at a pressure not greater than 5
atmospheres, or in necessity case by knocking the front of the cartridge
several times against a at surface.
Use a lamp to check that the lter element is not damaged or inspect it
against the light while slanted.
In case of doubt, install a new cartridge.
Dry air cleaner
Components:
1 Hand wheel
2 Cover
3 Cartridge
4 Seal ring
5 Bracket
6 Clogging indicator
Important
Replace cartridge immediately when indicator shows that is clog-
ged.
