Kohler KD 625/2 User Manual

- 57 -
KD 625-2 Workshop Manual_cod. ED0053029380_1° ed_ rev. 00
6
119
121
120
1
2
3
4
5
6
7
8
9
10
118

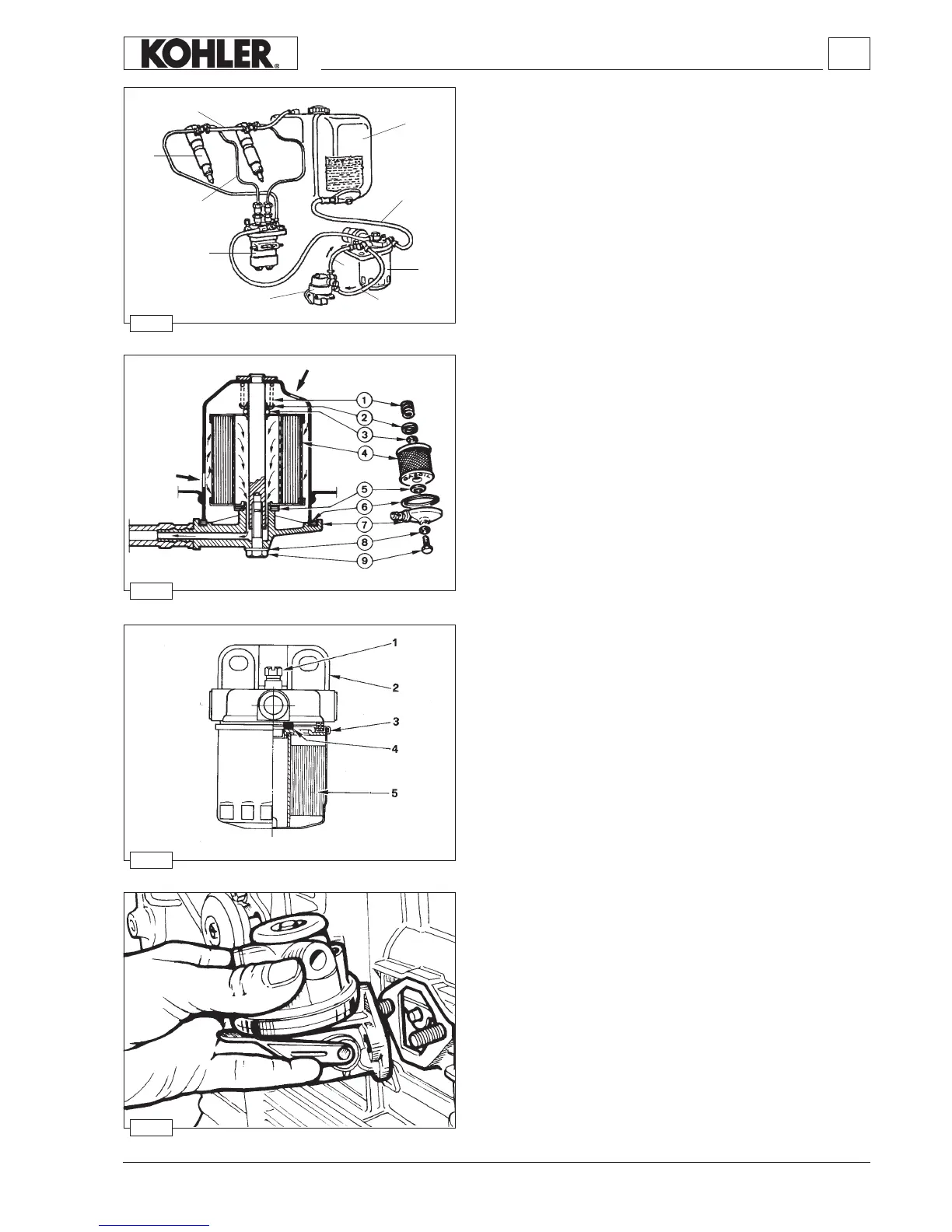

Fuel system
FUEL FILTER
Fuel lter (inside fuel tank)
Components: 1 Spring
2 Disc
3 Ring
4 Cartridge
5 Gasket
6 Gasket
7 Cap
8 Ring
9 Screw
 For characteristics see page 17.
FUEL LIFT PUMP
The fuel lift pump is of the diaphgragm type operated by a camshaft
eccentric through a drive rod.
It features an external lever for manual operation.
Fuel lter, external
1 Air relief valve
2 Support
3 Cartridge
4 Gasket
5 Filtering element
 For characteristics see page 17.
 For maintenance see page 22.
Fuel feeding / injection circuit with external fuel lter and QSD
(Quick Stop System)
Components:
1 Fuel tank
2 Fuel feeding tube
3 Fuel lter
4 Fuel lift pump intake tube
5 Fuel lift pump delivery tube
6 Fuel lift pump
7 lnjection pump
8 High-pressure pipe
9 Injector
10 Injector exhaust pipe
