Kohler KD 625/2

- 56 -
KD 625-2 Workshop Manual_cod. ED0053029380_1° ed_ rev. 00
114
115
2
4
5
6
7
8
3
116
1
1
4
6
8
7
9
5
3
2
117
1
2
4
6
8
7
9
5
3
10
10
6

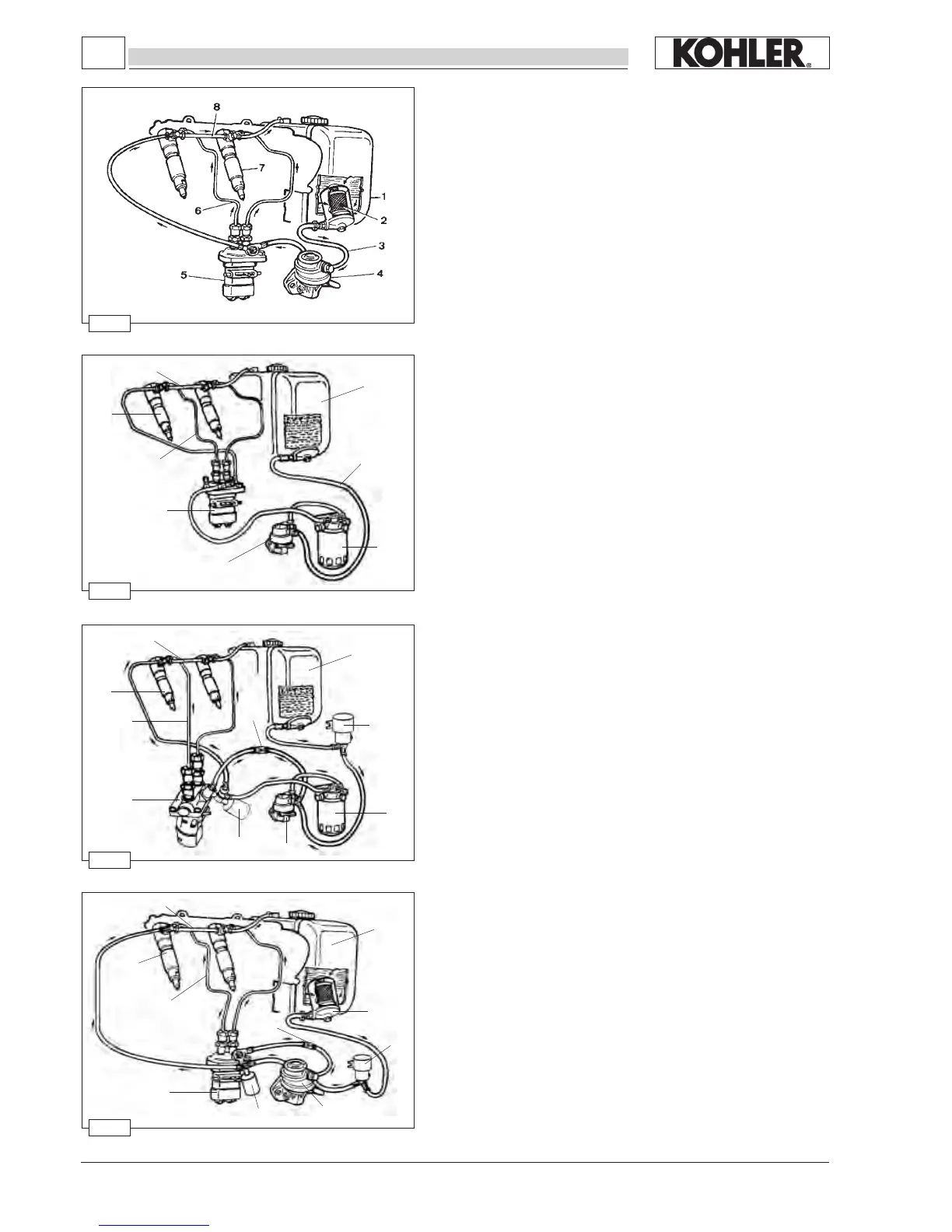

FUEL FEEDING / INJECTION CIRCUIT
Fuel feeding / injection circuit with fuel lter inside the fuel tank
Components:
1 Fuel tank
2 Fuel lter
3 Fuel feeding tube
4 Fuel lift pump
5 lnjection pump
6 High-pressure pipe
7 Injector
8 Injector exhaust pipe
Fuel feeding / injection circuit with external fuel lter
Components:
1
Fuel tank
2 Fuel feeding tube
3 Fuel lter
4 Fuel lift pump
5 lnjection pump
6 High-pressure pipe
7 Injector
8 Injector exhaust pipe
Fuel feeding / injection circuit with external fuel lter and
double solenoid valve
Components:
1 Fuel tank
2 Solenoid valve
3 Fuel lter
4 Fuel lift pump
5 Solenoid valve
6 lnjection pump
7 High-pressure pipe
8 Injector
9 Injector exhaust pipe
10 Non-return valve
Fuel feeding / injection circuit with fuel lter inside the fuel tank
and double solenoid valve
Components:
1 Fuel tank
2 Fuel lter
3 Solenoid valve
4 Fuel lift pump
5 Solenoid valve
6 lnjection pump
7 High-pressure pipe
8 Injector
9 Injector exhaust pipe
10 Non-return valve
FUEL SYSTEM
