Fuel system
Control rod
max. force
Rod stroke
from max
deliv. point
R.P.M. Delivery
Max. plunger
difference
Newton mm mm
3
/stroke mm
3
/stroke
0,50
10 1500 34÷37 3
13 500 7÷11 3
0 150 70÷78 --------
10 500 22÷26 3
Control rod
max. force
Rod stroke
from max
deliv. point
R.P.M. Delivery
Max. plunger
difference
Newton mm mm
3
/stroke mm
3
/stroke
0,50
9.5 1500 34÷37 3
11.5 500 3÷7 3
0 150 60÷68 --------
9.5 500 13÷18 3

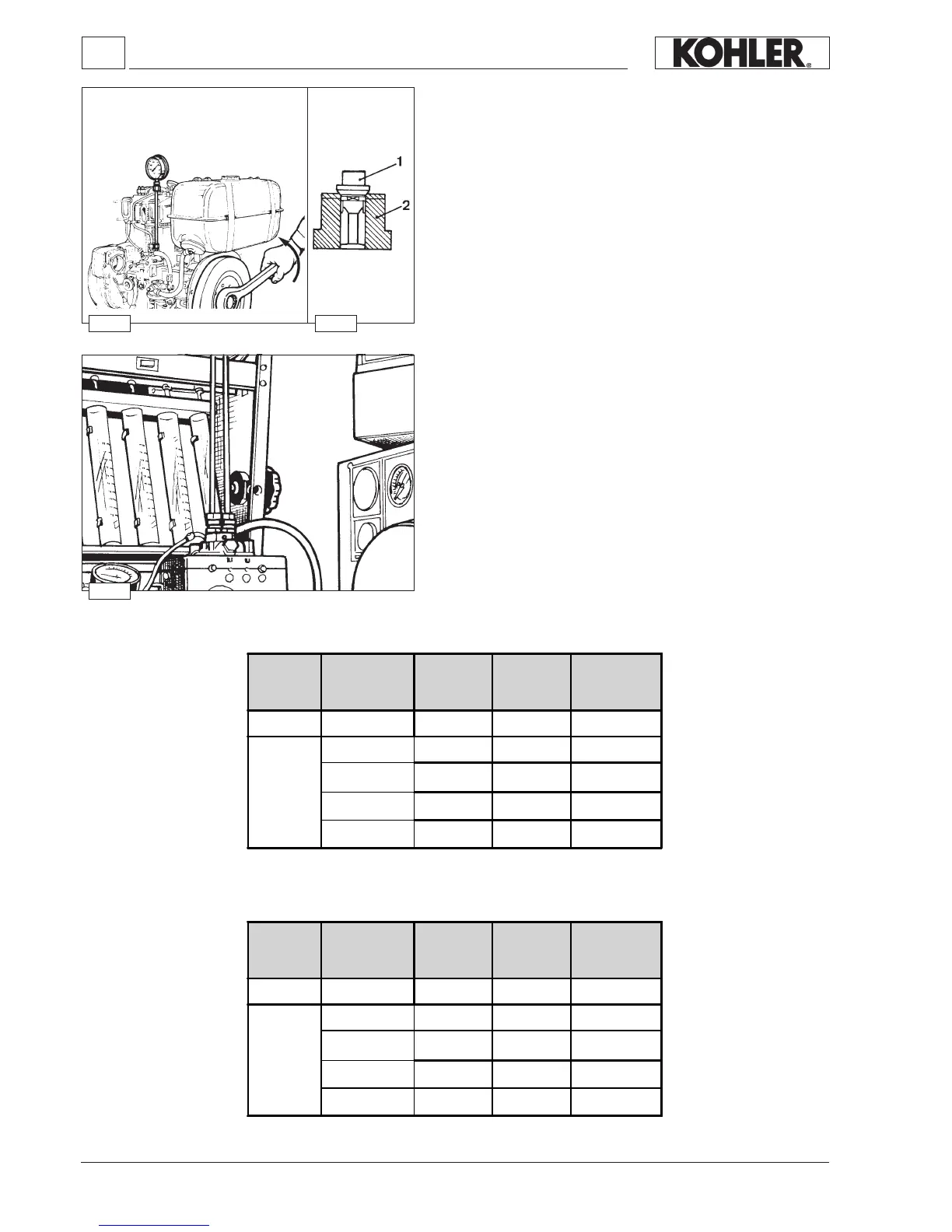

Test data for injection pump delivery
Check only maximum plunger difference by positioning rack rod accor-
ding to the indicated delivery value.
How to check injection pump delivery valve sealing
Components:
1 Valves
2 Seat
Adjust pump rack at half-stroke.
Turn ywheel according to its direction of rotation so that the plunger
puts the circuit under pressure.
During this operation the displayed pressure will gradually reach a peak
followed by a sudden drop which corresponds to valve closing.
Pressure drop should be 30÷50 bar.
Replace the valve if pressure drop is below this value.
Repeat the same operation for the other plunger.
