OIL PUMP
Check that the gear teeth are intact and that clearance between gear
edge and pump body does not exceed 0.15 mm.
Furthermore check that the control shaft is free to rotate with end oat
not exceeding 0.15 mm.
Oil pump delivery at 3000 r.p.m. is 9 liters/min.
Lubrication system
Components:
1) Oil pressure gauge
2) Breather
3) Connecting rod big end bearing
4) Crankshaft main bearing on gear side
5) Cartridge lter
6) Oíl pressure relief valve
7) Oil pump
8) Internal lter
9)
Oil ll plug
10) Rocker arm shafts
11)
Pushrod protection tube
12) Hydraulic pump gear
13) Camshaft joumal on ywheel side
14) Oìl dipstick
15) Oil drain plug
16) Oil radiator

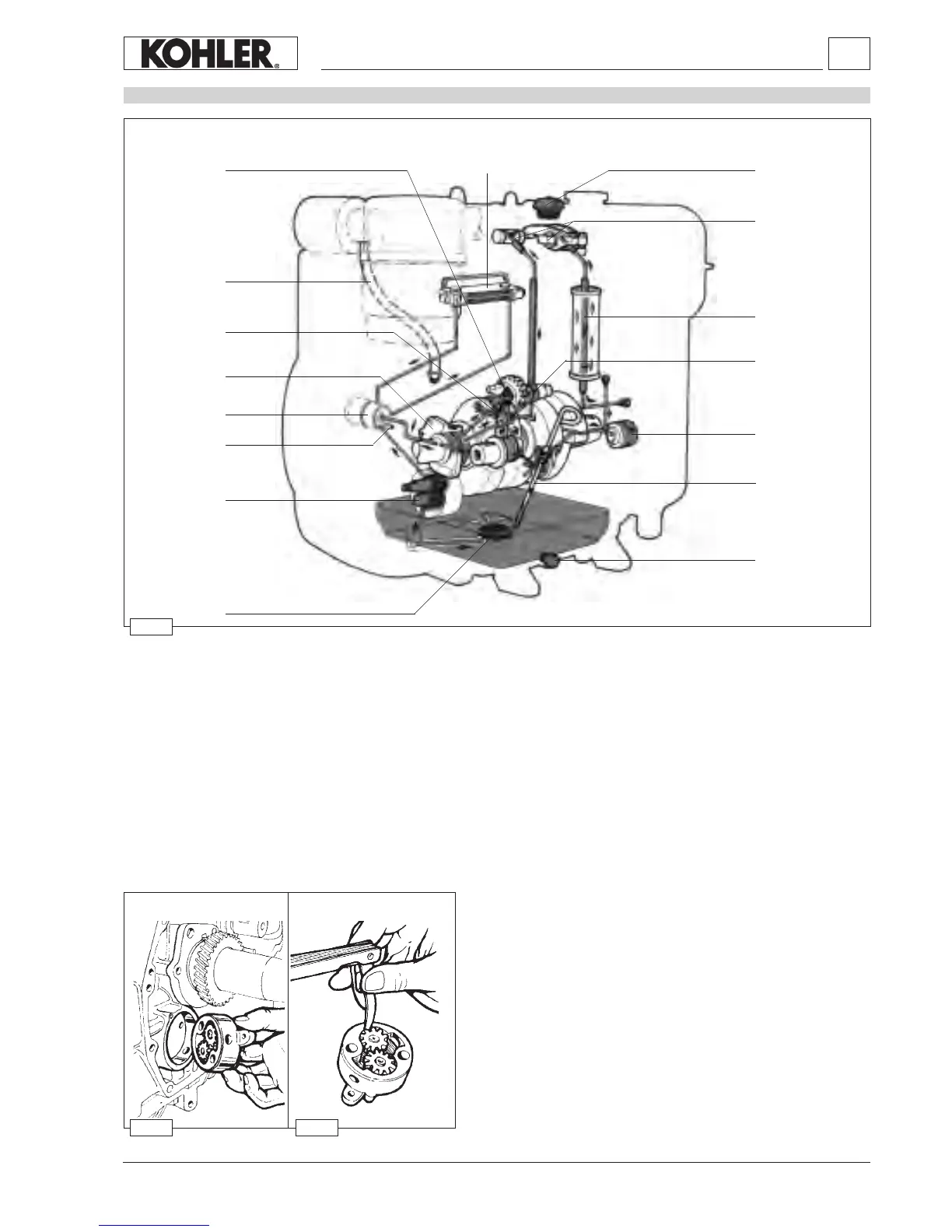

Lubrication system with oil radiator circuit
