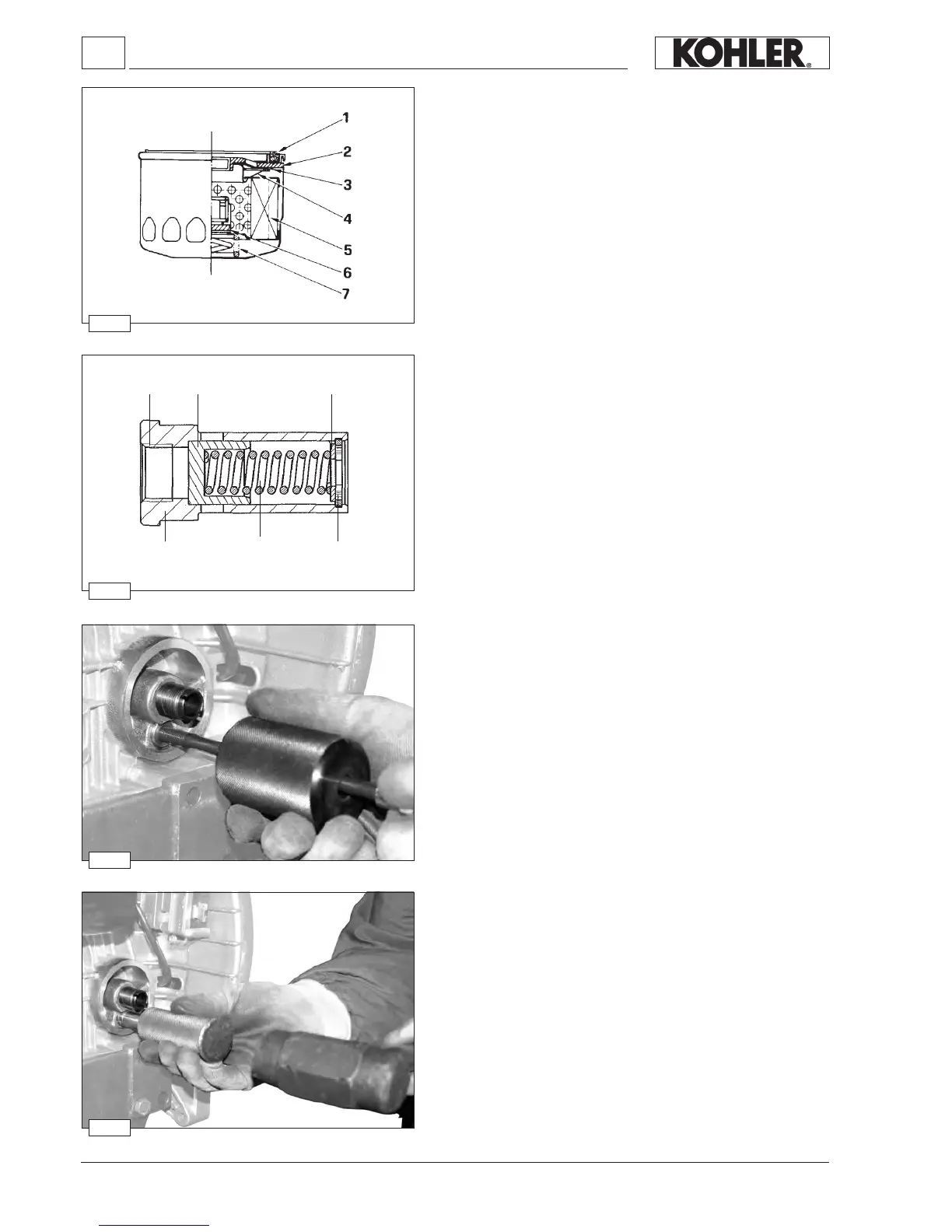

Lubrication System
OIL PRESSURE RELIEF VALVE
Details:
1 Plunger
2 Washer
3 Valve body
4 Spring
5 Ring snap
6 M9x1 threading for puller
Operation start pressure .............................5 bar.
OIL FILTER CARTRIDGE (EXTERNAL)
Components:
1 Gasket
2 Plate
3 Gommino
4 Spring
5 Filter element
6 Bypass valve
7 Spring
For characteristics see page 17.
Disassembly:
Before removing the oil pressure regulating valve, remove the oil lter
by using an appropriate wrench.
Remove the regulating valve using a hammer puller equipped with a
M9x1 threaded terminal.
Reassembly:
Make sure that the valve seat is free of scratches and scores which
could reduce the pressure seal.
Insert the entire oil pressure valve into its housing by keeping it in
line.
Make sure that the valve is completely assembled to the engine
guard by means of a pad.
