10.2.5 Expansion card -DEVICENET-
This section describes the DeviceNet expansion card for SERVOSTAR 600.
Information on the range of functions and the software protocol can be found in our manual
“DeviceNet Communication Profile”.

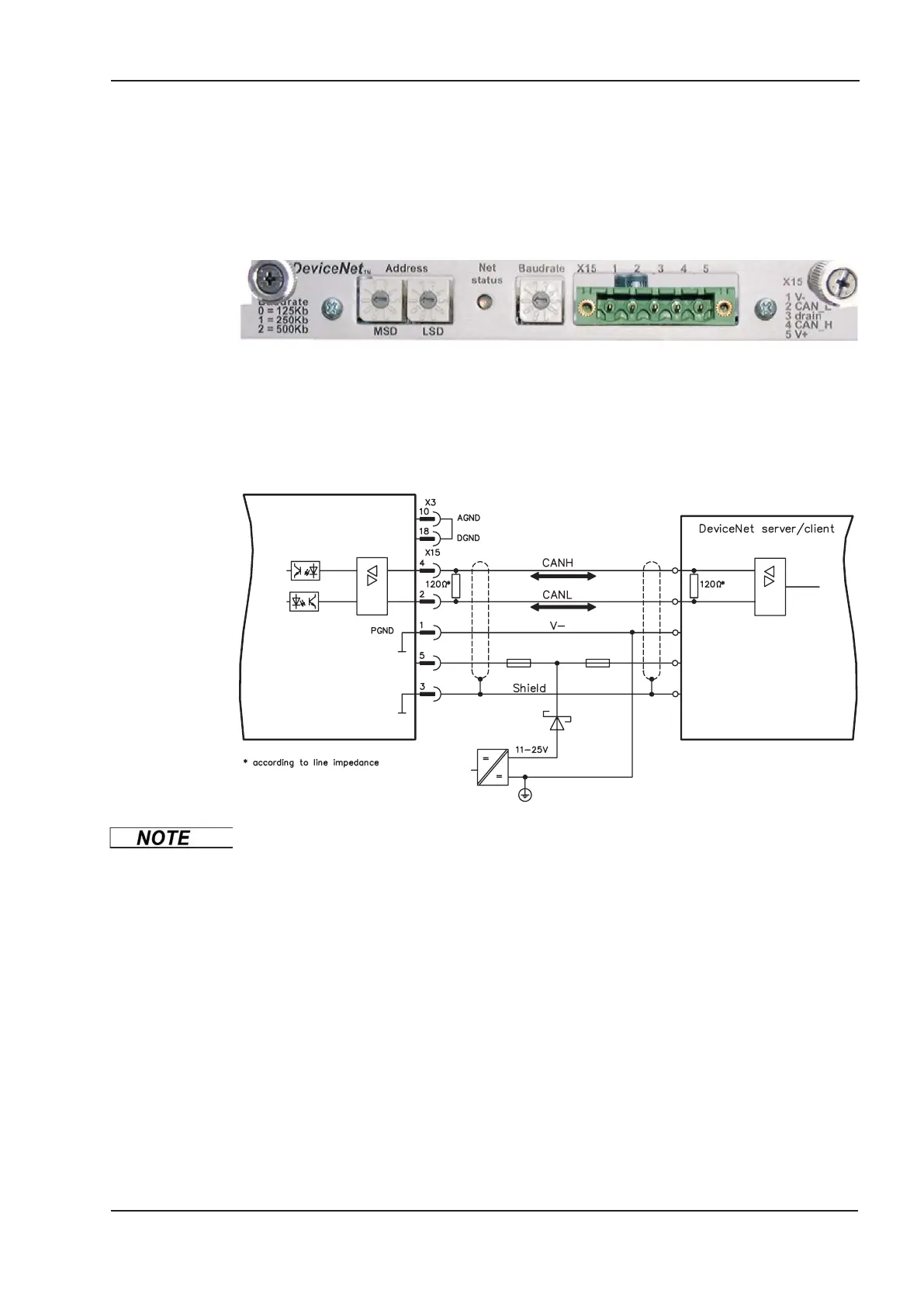

10.2.5.1 Front view
10.2.5.2 Connection technology
Cable selection, cable routing, shielding, bus connector, bus termination and transmission times are
all described in the “DeviceNet Specification, Volume I, II”, published by ODVA.
10.2.5.3 Connection diagram
AGND and DGND (connector X3) must be joined together !
SERVOSTAR
®
601...620 Instructions Manual 105
Kollmorgen
07/2010 Expansions / Accessories
SERVOSTAR 600
