10.3 Special Accessories

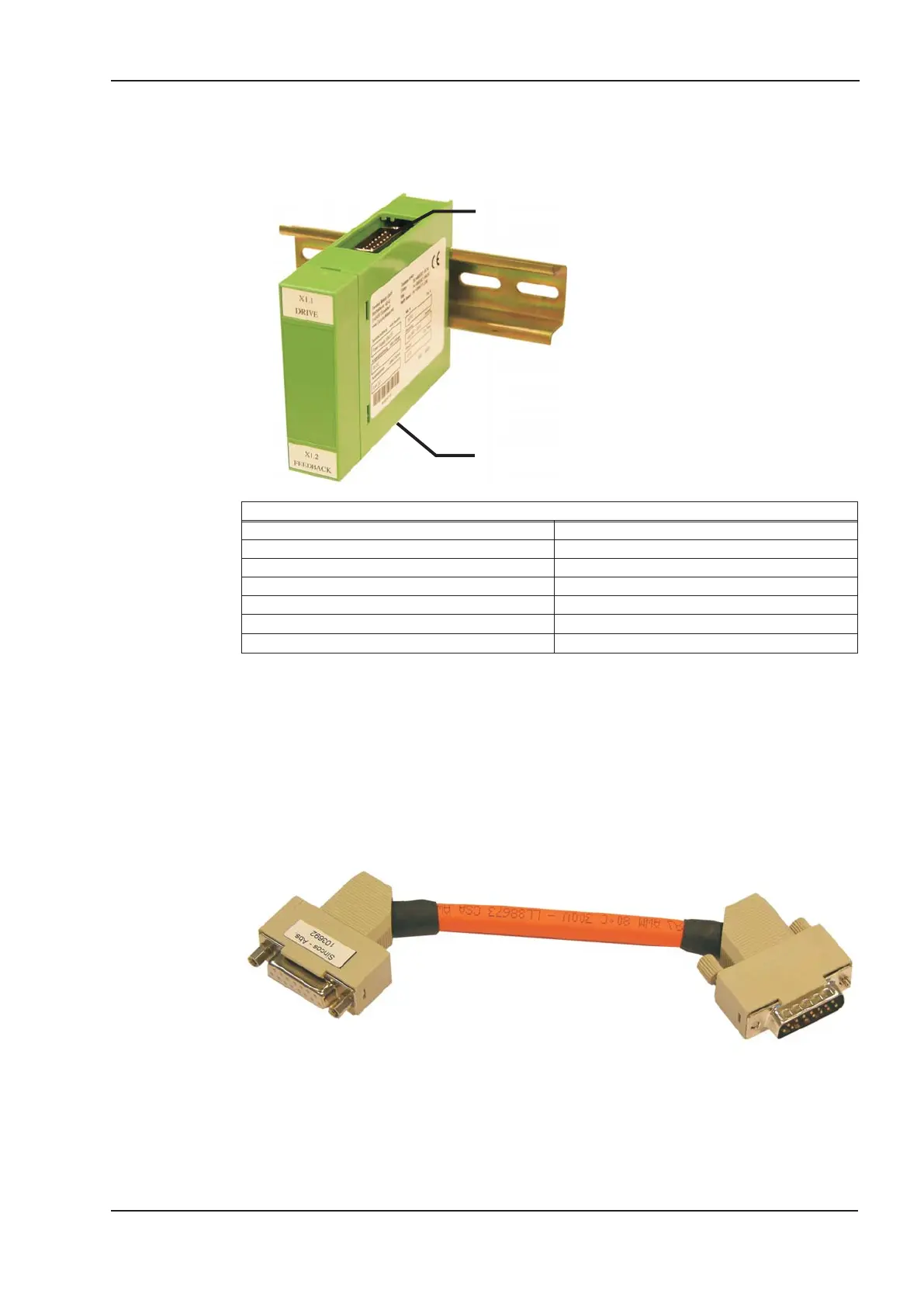

10.3.1 Power Supply SINCOS
The extended power supply enables the
operation of encoder systems at con
-
nector X1 with a power consumption of
up to 400 mA DC. This power supply is
switched between X1 and the encoder
and supplied by SERVOSTAR 600.
The connection between the amplifier
and the power supply requires a 1:1 pro
-
tected data cable with a maximum
length of 2 m (see ordering information,
p. 117ff).
The encoder is connected to the power
supply using the normal encoder con
-
nection cable (max. 50 m).
Technical Data
Output voltage 5 V DC (-5%…+5%)
Output current max. 400 mA DC
Protection type IP20
Ambient temperature 0…+55°C
Type of mounting Mounting rail
Cable length (amplifier -> mains supply) max. 2 m
Cable length (mains supply -> encoder) max. 50 m
10.3.2 Terminating adapter for encoder cables
Encoders that do not have integrated terminating resistors can be connected to X1 with our stan
-
dard cables using this adapter (see ordering information p.117ff).
The terminating resistors increase noise immunity. The adapter (approx. 200 mm long) is con
-
nected to the servo amplifier (X1).
SERVOSTAR
®
601...620 Instructions Manual 113
Kollmorgen
07/2010 Expansions / Accessories
to servo amplifier
(max. 2 m)
to feedback
(max. 50 m)
