8.11.1 Resolver (X2)

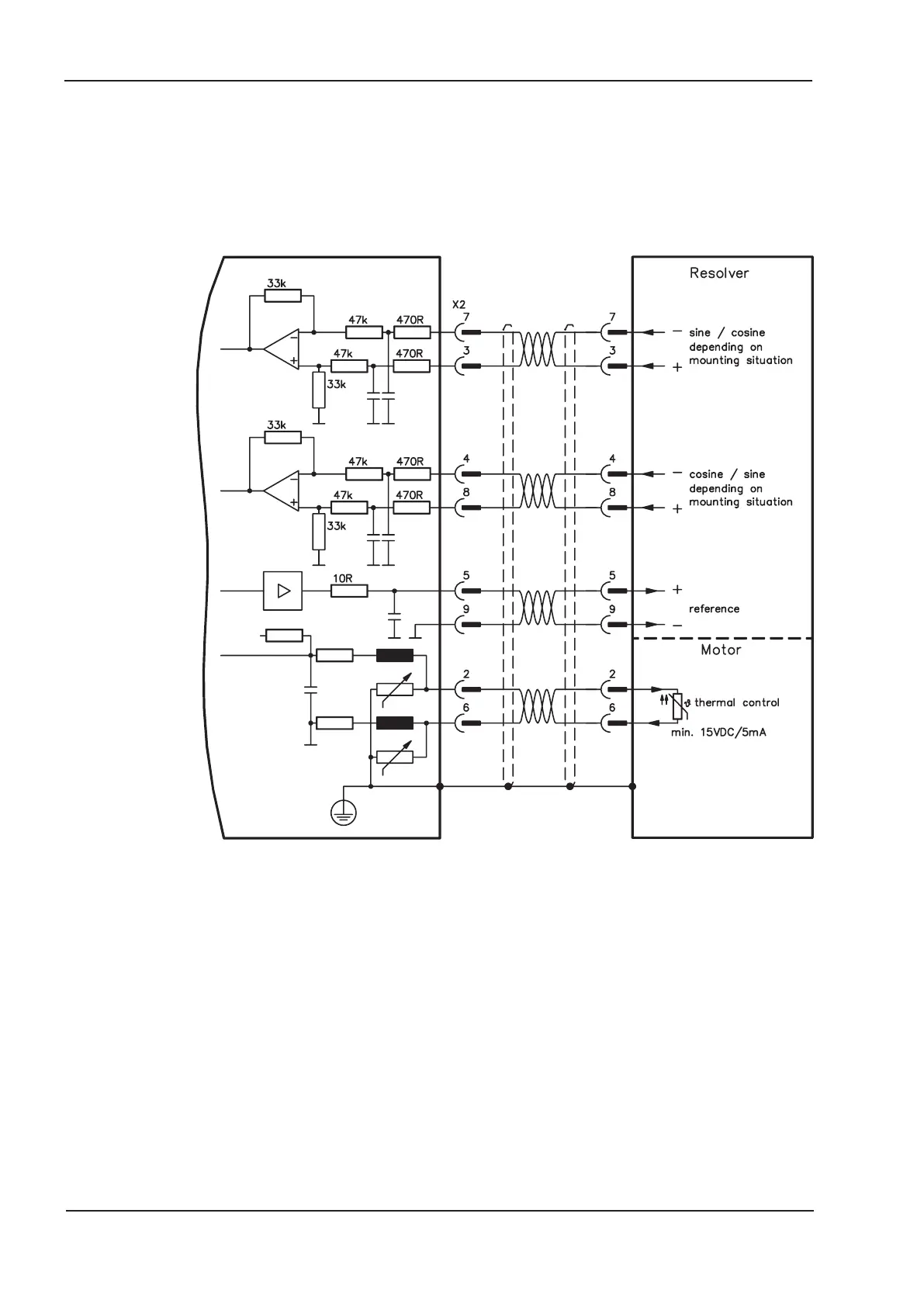

Connection of a Resolver (2 to 36-poles) as a feedback system (primary, ð p.51). The thermal con
-
trol in the motor is connected via the resolver cable to X2 and evaluated there.
If cable lengths of more than 100 meters are planned, please contact our customer service.
FBTYPE: 0, 3
The pin assignment shown on the encoder side relates to the Kollmorgen motors.
52 SERVOSTAR
®
601...620 Instructions Manual
Electrical Installation
07/2010 Kollmorgen
SERVOSTAR 600
SubD9
12pol.round
