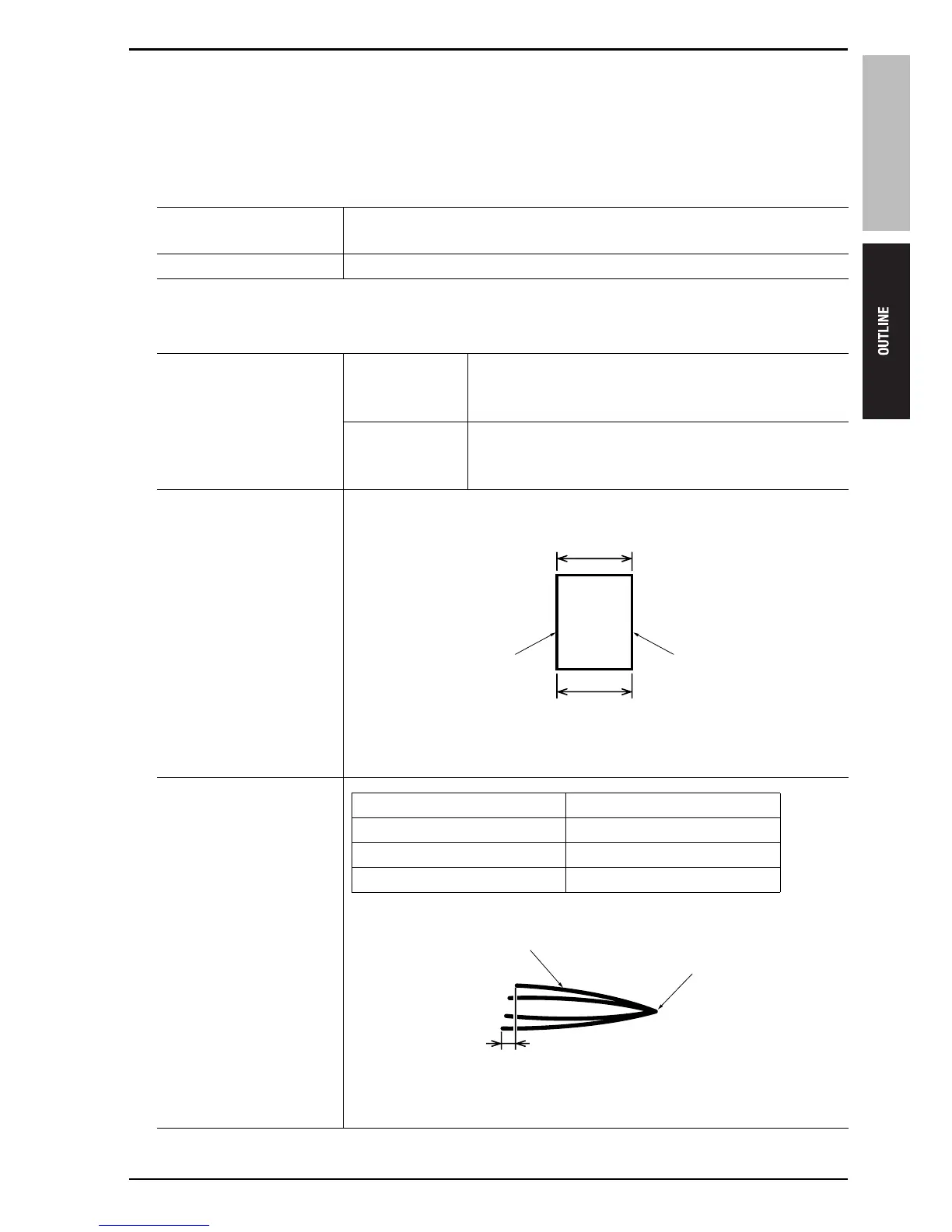

TU-501
1. PRODUCT SPECIFICATIONS
1
Field Service Ver1.0 Jun.2005
OUTLINE
1. PRODUCT SPECIFICATIONS
A. Type
B. Functions
Type Upper blade reciprocating type fore-edge trimming device with large capacity
stacker
Applicable type of machine FS-604 (When equipped, optional MK-707 is required.)
Number of sheets trimmed
*1
40 sheets, maxi-
mum
• 20 sheets of 80 g/m
2
folded into two
• 19 sheets of 80 g/m
2
+ 1 cover sheet of 200 g/m
2
folded into two
32 sheets, maxi-
mum
• 16 sheets of 81 to 105 g/m
2
folded into two
• 15 sheets of 81 to 105 g/m
2
+ 1 cover sheet of 200 g/
m
2
folded into two
Parallelism between the
folding edge and the trim-
ming edge
Parallelism |A - B| = 1 mm or less
[1] Folding edge
[2] Trimming edge
Difference in sheet trimming
[1] Sheets bundle
[2] Folding edge
15smt1c001na
A
B
[2][1]
No. of sheets to be stapled Difference in sheet trimming = A
2 to 5 0.5 mm or less
6 to 16 1.5 mm or less
17 to 20 1.8 mm or less
15smt1c002na
A
[2]
[1]
To Next Page
