2.1 Maintenance procedure of the paper feed section
Note
• Be sure to unplug the power cord of the main body from the power outlet.
2.1.1 Replacing the pick-up roller/paper feed roller/paper feed assist roller
A. Periodically replaced parts/cycle
• Pick-up roller: Every 4,500,000 prints (once for every 800,000 prints for actual replacement cycle)
• Paper feed roller: Every 4,500,000 prints (once for every 800,000 prints for actual replacement cycle)
• Paper feed assist roller: Every 4,500,000 prints (once for every 800,000 prints for actual replacement cycle)
B. Procedure

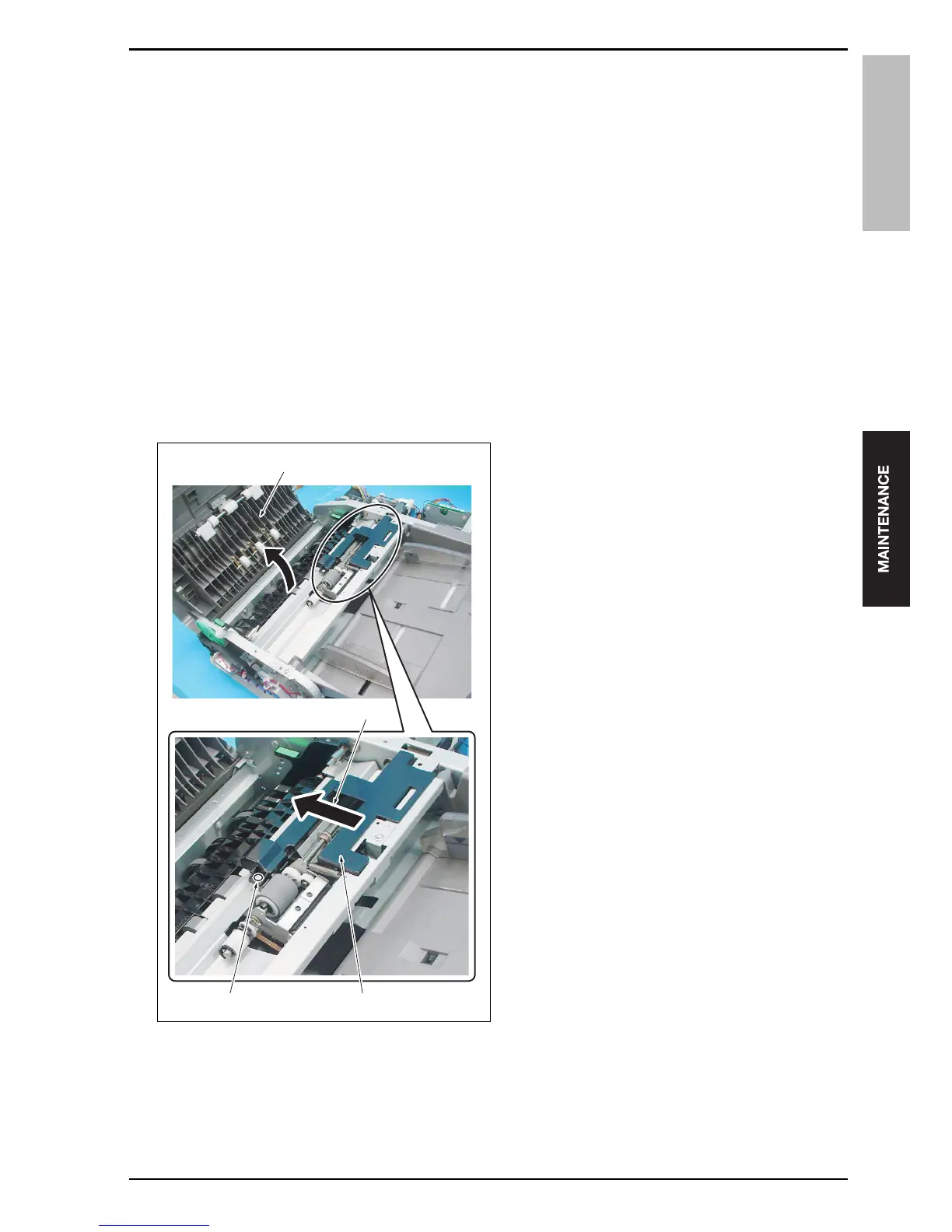

1. Open the open/close cover [1].
2. Remove the screw [2] and then remove the sen-
sor cover [3] in the arrow-marked direction [4].
[2] [3]
[1]
[4]
15saf2c001na
