3. OTHER PARTS
3.1 Items not allowed to be disassembled and adjusted
A. The screw not allowed to be removed in the folding stopper (FS-604)
(1) Parts not allowed to be removed
There is a screw in the folding stopper, that is not allowed to be removed.
Note
• For ease of understand, the position of the folding stopper is shown lower than the actual position
in the illustration.
(2) Reason
The tilt adjustment of the folding stopper should be made at the slide shaft of the folding stopper. (See "4.10
Folding stopper tilt adjustment (FS-604).")
Never loosen the screw not allowed to be removed in the folding stopper because the tilt of the folding stopper
may be changed and the adjustment reference in the slide shaft may be misaligned if the screw is loosen.

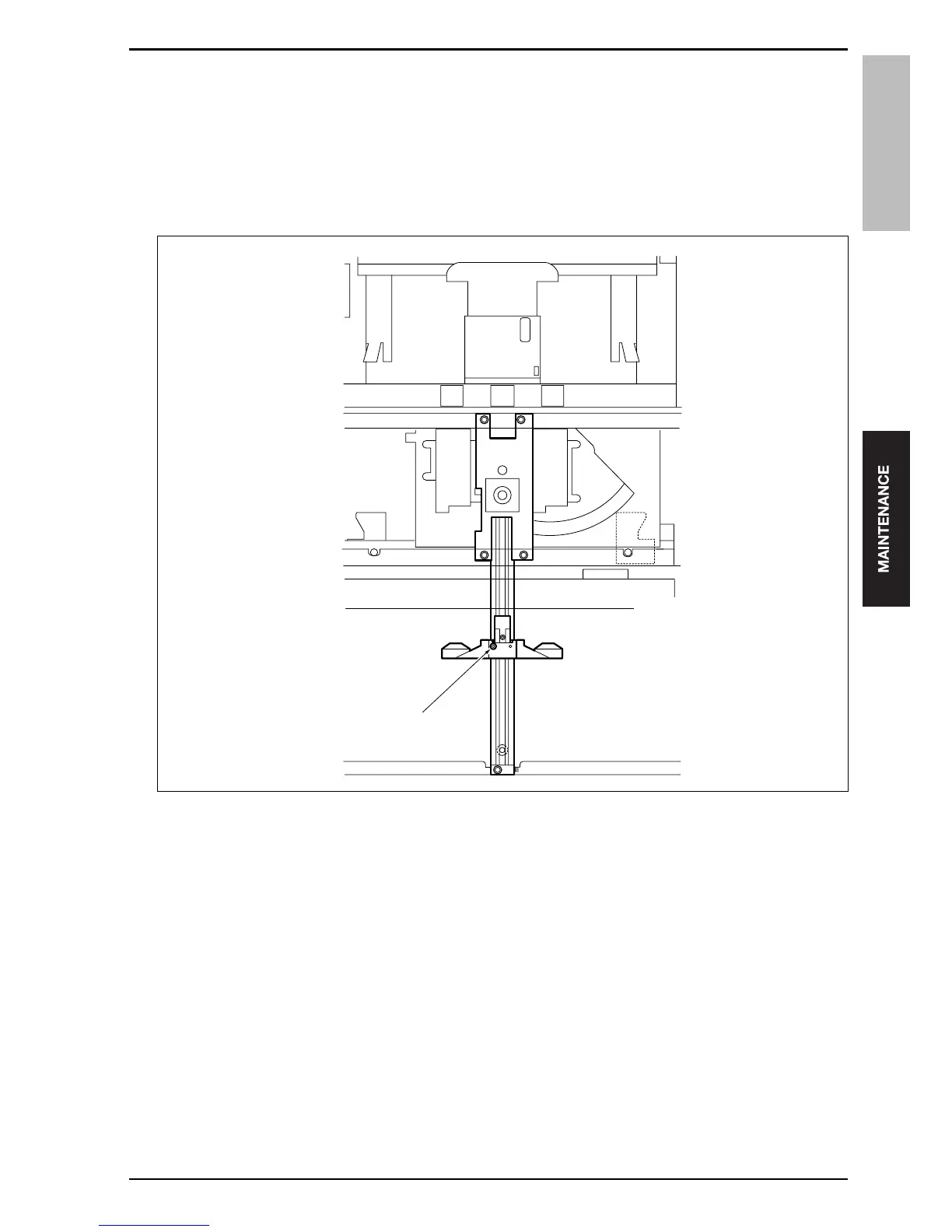

[1] The screw not allowed to be removed in the folding stopper
15sjf2c027na
[1]
