VS-88H2A – Connecting VS-88H2A
9
See (see Connecting Output to a Balanced/Unbalanced Stereo Audio Acceptor
on page 9).
5. If required, connect:
▪ The 5V/2A USB port to the USB port of another device to charge it.
▪ The ETHERNET port to a control device.
▪ The RS-232 port to a control device (not shown in Figure 3).
6. Connect the power cord to the power connector and to the mains electricity (not
shown in Figure 3).
We recommend that you use only the power cord that is supplied with this machine.

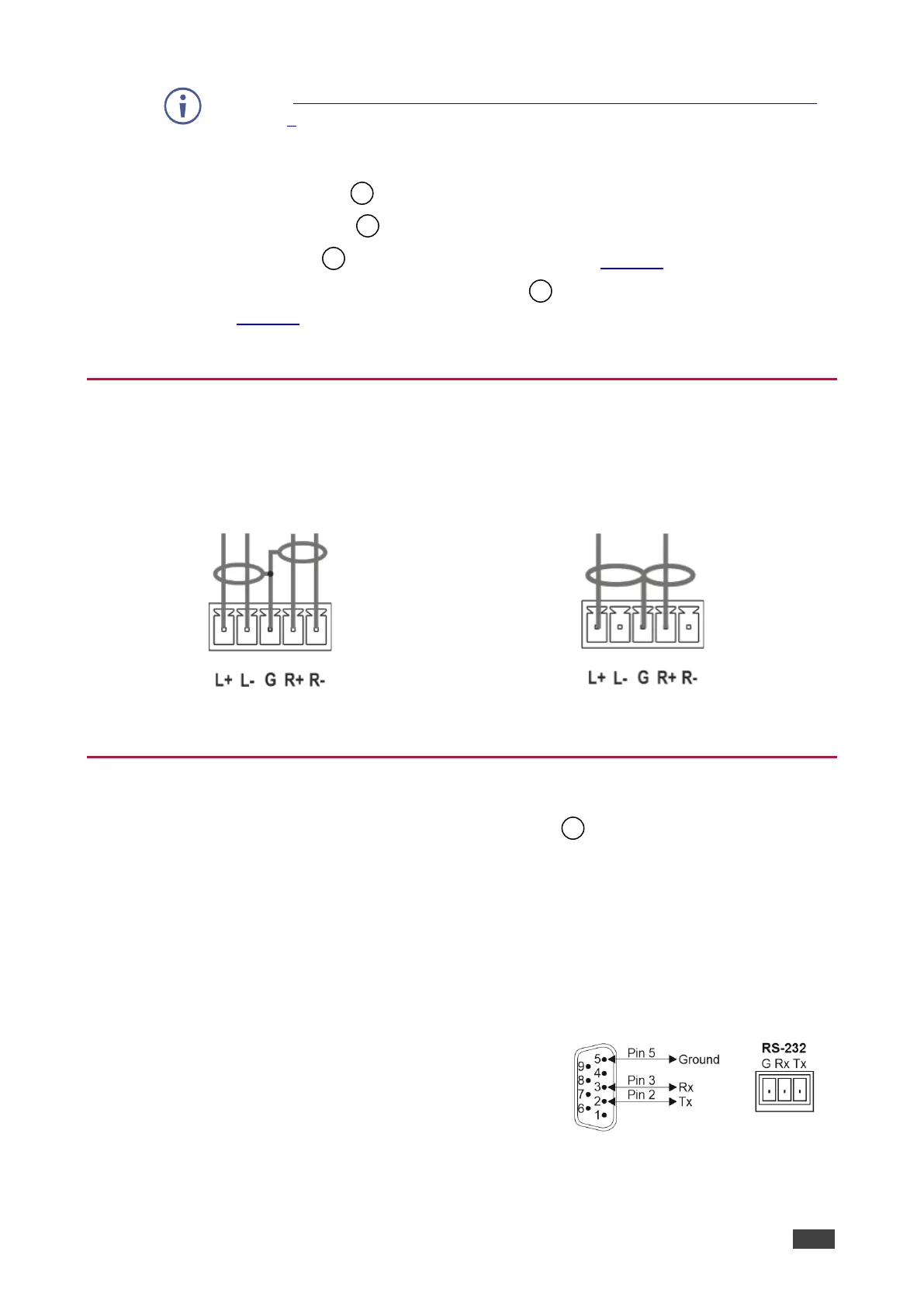

Connecting Output to a Balanced/Unbalanced Stereo
Audio Acceptor
The following are the pinouts for connecting the output to a balanced or unbalanced stereo
audio acceptor:
Figure 4: Connecting to a Balanced Stereo Audio
Acceptor
Figure 5: Connecting to an Unbalanced Stereo Audio
Acceptor
Connecting to VS-88H2A via RS-232
You can connect to VS-88H2A via an RS-232 connection using, for example, a PC.
VS-88H2A features an RS-232 3-pin terminal block connector allowing the RS-232 to control
VS-88H2A.
Connect the RS-232 terminal block on the rear panel of VS-88H2A to a PC/controller, as
follows:
From the RS-232 9-pin D-sub serial port connect:
• Pin 2 to the TX pin on the VS-88H2A RS-232 terminal
block
• Pin 3 to the RX pin on the VS-88H2A RS-232 terminal
block
• Pin 5 to the G pin on the VS-88H2A RS-232 terminal block
RS-232 Device VS-88H2A
18
20
22
23
22

Kramer VS-88H2A Specifications

General

HDCP	Yes
Video bandwidth	60 Hz
Maximum resolution	- pixels
Number of displays supported	8
USB hub	No
Console ports	3.5mm headphone, HDMI, RJ–45, USB A
HDMI ports quantity	16
Power source	AC
Power plug type	Type F (CEE 7/4)
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Package depth	330 mm
Package width	530 mm
Package height	107 mm
Package weight	3400 g
Cabling technology	-
Ethernet LAN (RJ-45) ports	1
Product color	Black

Weight and Dimensions

Depth	183 mm
Width	436.4 mm
Height	43.6 mm
Weight	2500 g
