VS-88H2A – Mounting VS-88H2A
7
Mounting VS-88H2A
This section provides instructions for mounting VS-88H2A. Before installing, verify that the
environment is within the recommended range:
• Operation temperature – 0 to 40C (32 to 104F).
• Storage temperature – -40 to +70C (-40 to +158F).
• Humidity – 10% to 90%, RHL non-condensing.
Caution:
• Mount VS-88H2A before connecting any cables or power.
Warning:
• Ensure that the environment (e.g., maximum ambient temperature & air flow) is
compatible for the device.
• Avoid uneven mechanical loading.
• Appropriate consideration of equipment nameplate ratings should be used for avoiding
overloading of the circuits.
• Reliable earthing of rack-mounted equipment should be maintained.

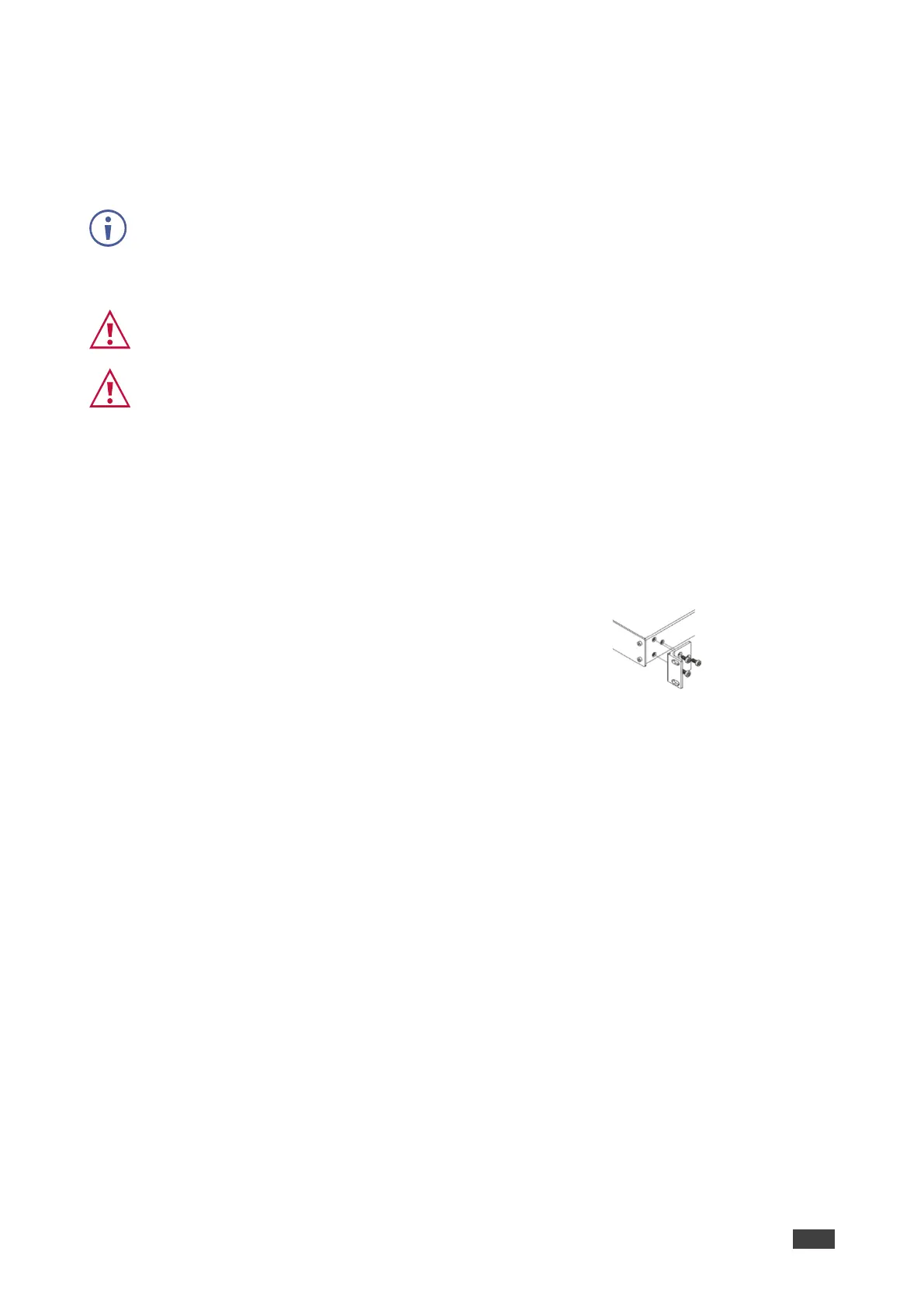

Mount VS-88H2A in a rack:
• Attach both rack ears by removing the screws from each
side of the machine and replacing those screws through
the rack ears.

Kramer VS-88H2A Specifications

General

HDCP	Yes
Video bandwidth	60 Hz
Maximum resolution	- pixels
Number of displays supported	8
USB hub	No
Console ports	3.5mm headphone, HDMI, RJ–45, USB A
HDMI ports quantity	16
Power source	AC
Power plug type	Type F (CEE 7/4)
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Package depth	330 mm
Package width	530 mm
Package height	107 mm
Package weight	3400 g
Cabling technology	-
Ethernet LAN (RJ-45) ports	1
Product color	Black

Weight and Dimensions

Depth	183 mm
Width	436.4 mm
Height	43.6 mm
Weight	2500 g
