Operation
78
11.12 Selecing Rotor Operation
Depending on how the machine is equipped, different rotor operations can be selected with the
rotary rake.
Twin-rotor operation: Swath placement to the middle with right and left rotor
Single rotor operation: Swath placement to the middle with left rotor
Single rotor operation: Swath placement to the middle with the right rotor
11.12.1 For design with hydraulic single-rotor lifting mechanism
SW700086_1

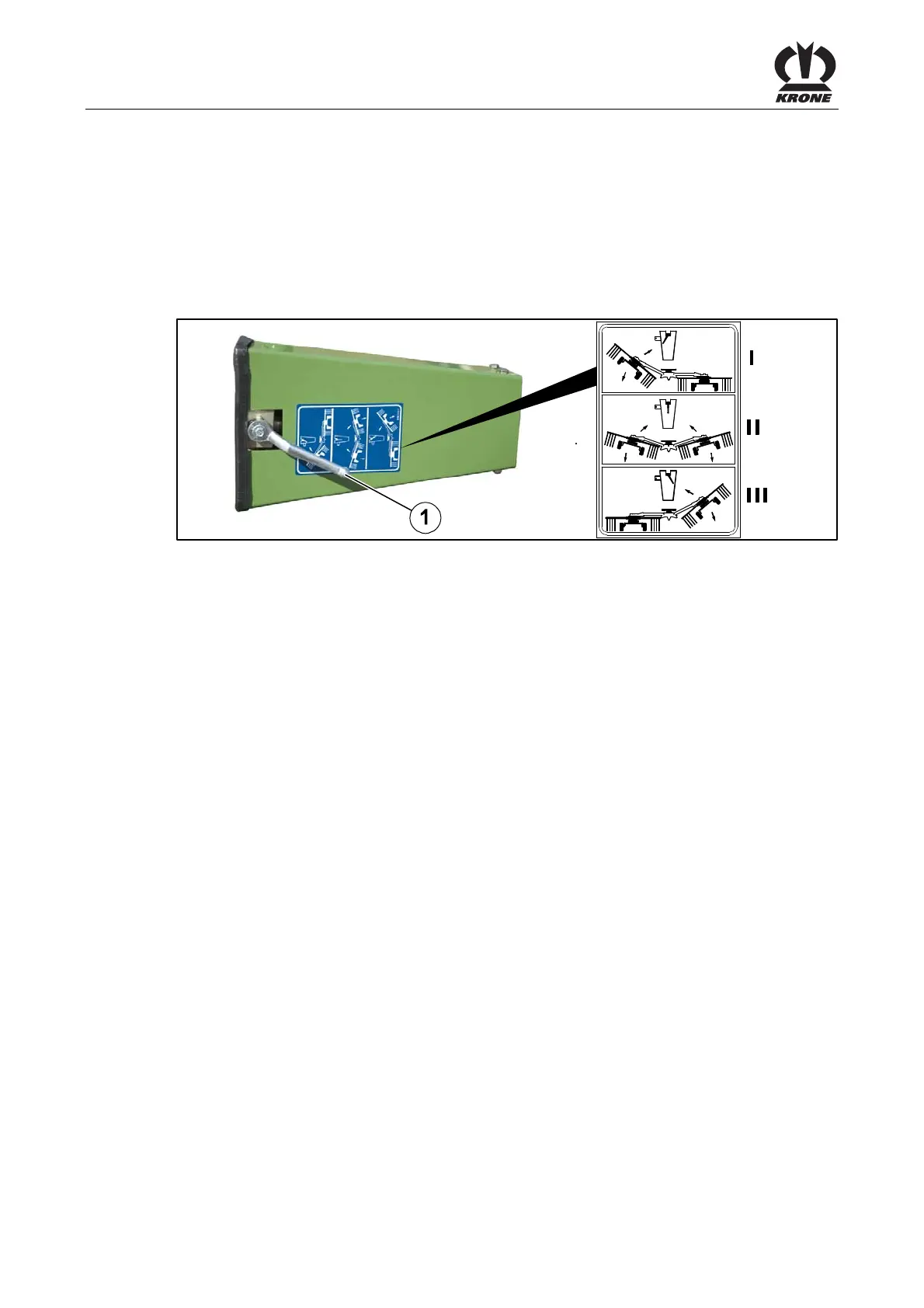

Fig. 48
Single-Rotor Operation with Right Rotor
To swath just with the right rotor, proceed as follows:
• Move the rotor arms to the working position.
• Move the switching valve (1) to position (1).
• Activate the single-acting control unit to lift the left rotor into headland position.
Twin-Rotor-Operation
To swath with both rotors, proceed as follows:
• Move the rotor arms to the working position.
• Bring switching valve (1) to position (II).
• Move the single-acting control unit to position (“Lowering / Float Position”).
Single-Rotor Operation with Left Rotor
To swath just with the left rotor, proceed as follows:
• Move the rotor arms to the working position.
• Move the switching valve (1) to position (III).
• Activate the single-acting control unit to lift the right rotor into headland position.
