3 Transport/Temporary Storage/Disposal
13 of 64
Etaline

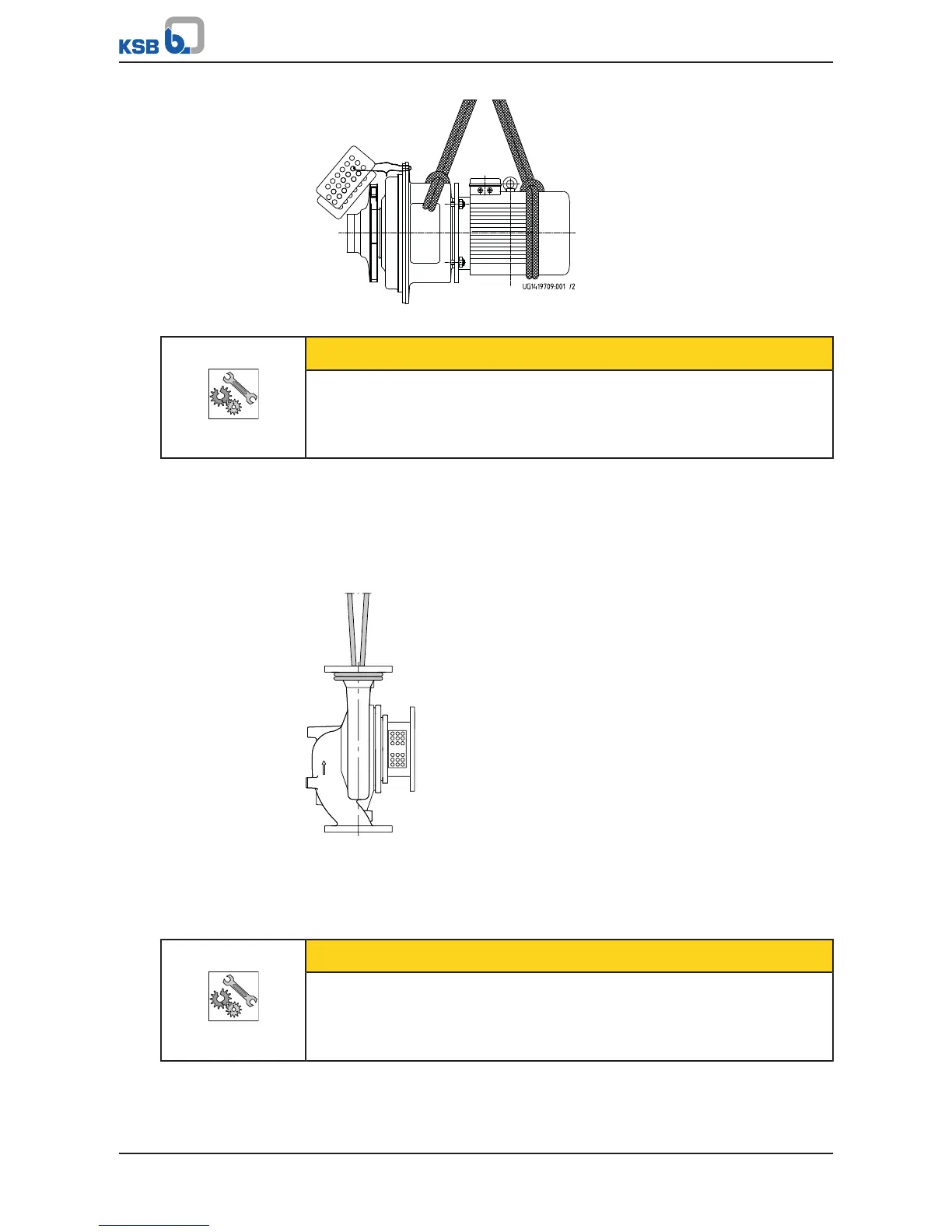

Fig.2: Transporting the back pull-out unit
CAUTION
Incorrect transport of the pump
Damage to the shaft seal!
▷ For transport, lock the pump shaft with a suitable transport lock to prevent any
movement of the shaft.
When transporting the pump without motor, shaft 210 must be locked.
1. Remove the screws on cover plates 68-3, press the cover plates slightly together
and remove from drive lantern 341.
2. Insert lock washer 931.95 into the shaft groove.
3. Tighten hexagon head bolt 901.50.
To transport the pump / pump set suspend it from the lifting tackle as shown.
Fig.3: Transporting the pump
3.3 Storage/preservation
If commissioning is to take place some time after delivery, we recommend that the
following measures be taken for pump (set) storage.
CAUTION
Damage during storage due to humidity, dirt or vermin
Corrosion/contamination of the pump (set)!
▷ For outdoor storage cover the pump (set) or the packaged pump (set) and
accessories with waterproof material.
