9 Related Documents
53 of 64
Etaline
9 Related Documents

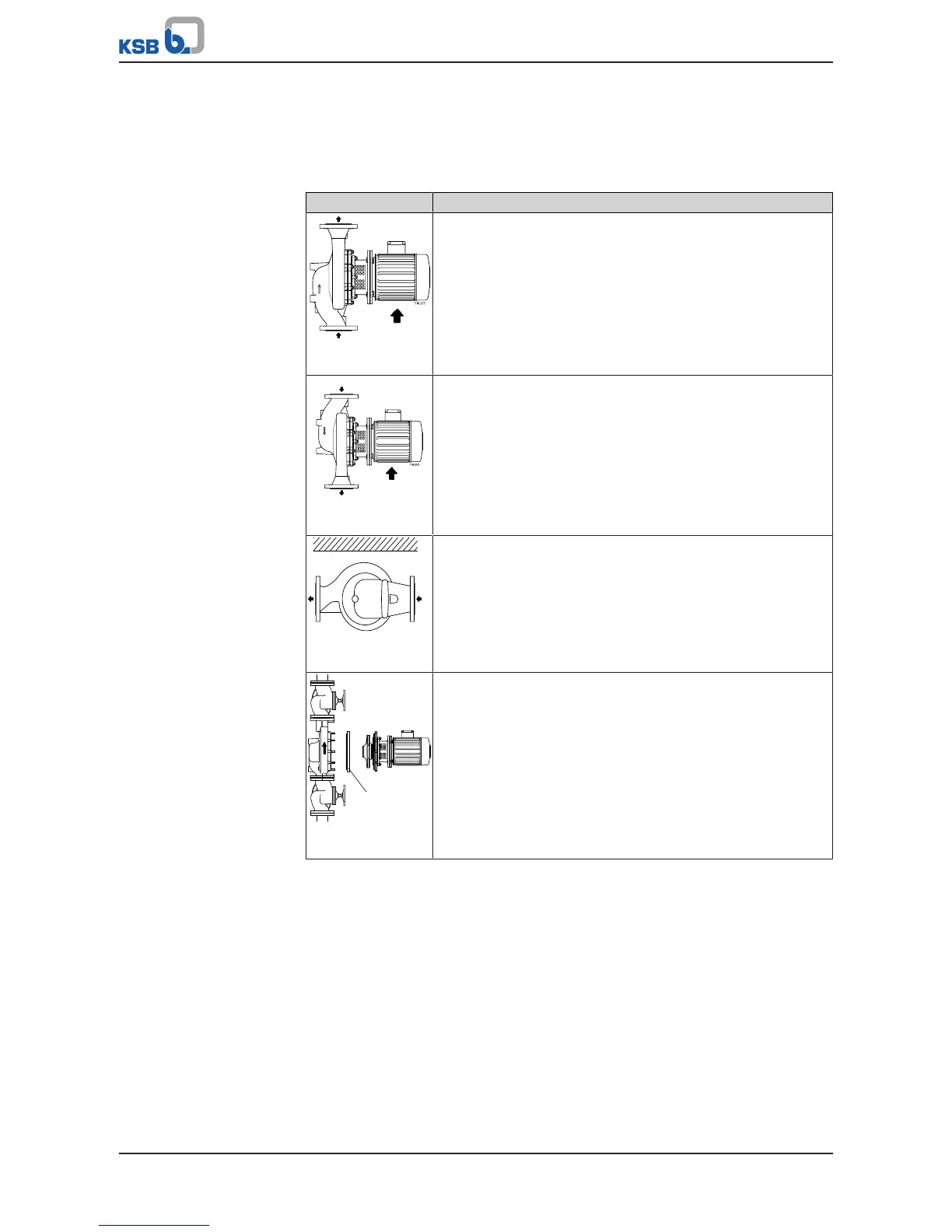

9.1 Typical installation positions
Table22: Horizontal installation
Examples Special aspects
Direction of flow
from bottom to top
Direction of flow from bottom to top
Please note: Motors of size 180 (18.5kW) and above on pump
sets with horizontal motor axis require adequate support! The
foot fastening holes on the motor housing can be used for this
purpose.
Direction of flow
from top to bottom
Direction of flow from top to bottom
The volute casing and/or back pull-out unit must be turned by
180° so that the terminal box remains in its current position on
top.
Please note: Motors of size 180 (18.5kW) and above on pump
sets with horizontal motor axis require adequate support! The
foot fastening holes on the motor housing can be used for this
purpose.
1146:3/1
Horizontal
installation
Horizontal installation (for example under the ceiling)
The volute casing and/or back pull-out unit must be turned by
90° so that the terminal box remains in its current position on
top.
1
Installation with
blind flange
1 = Blind flange (accessories)
If one of the pumps needs to be serviced, the pump chamber
can be shut off by a blind flange so that the system remains
operational.
