Etaline
9.2.3 Variant with pump feet for vertical installation
Table28: This view applies to the following pump sizes:
032-032-160 040-040-160 050-050-160 065-065-160 080-080-160 100-100-125
032-032-200 040-040-250 050-050-250 065-065-250 080-080-200
080-080-250

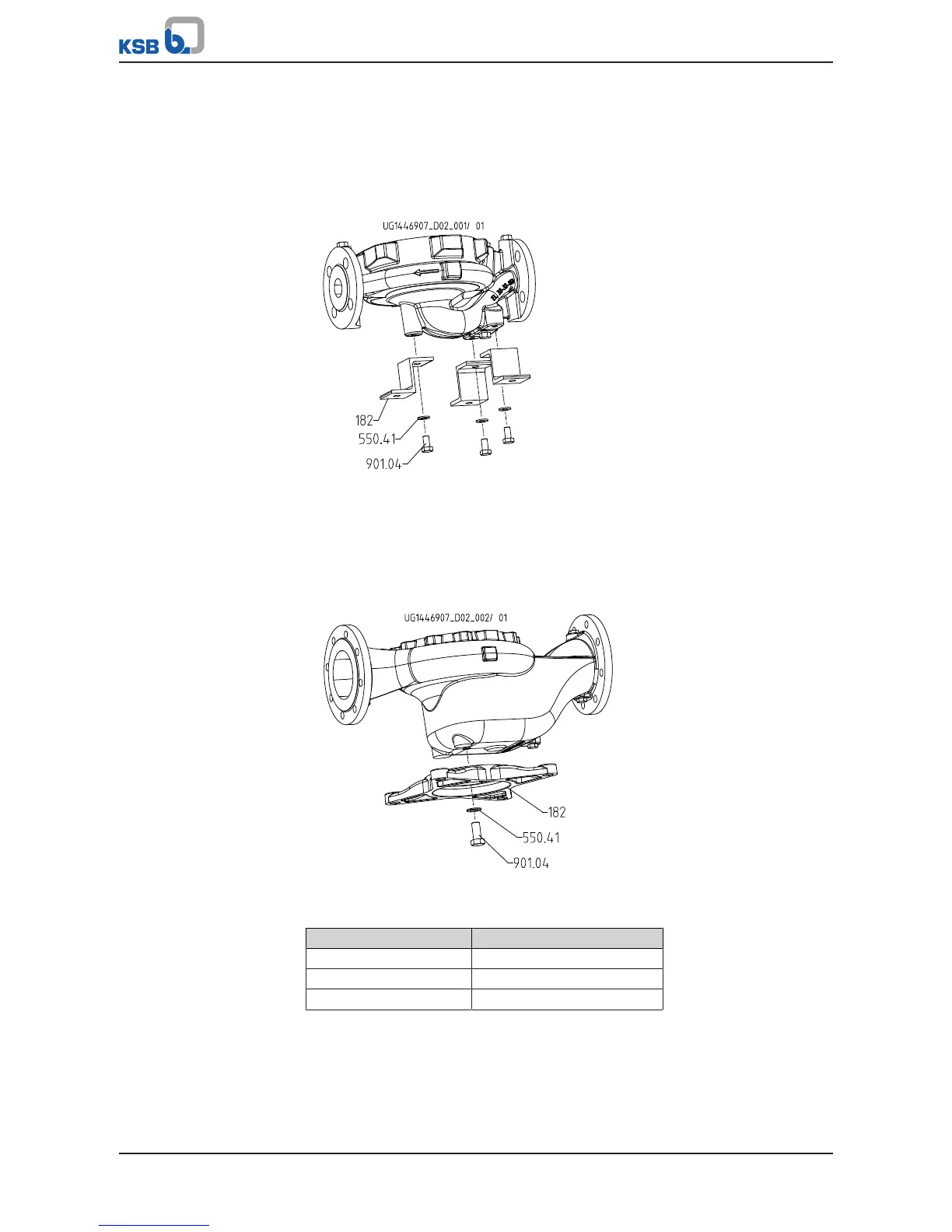

Fig.15: Vertical installation with angle feet
Table29: This view applies to the following pump sizes:
100-100-160 125-125-160 150-150-200 200-200-250
100-100-200 125-125-200 150-150-250 200-200-315
100-100-250 125-125-250
Fig.16: Vertical installation with pump foot
Table30: List of components
Part No. Description
182 Foot
550.41 Disc
901.04 Hexagon head bolt
