Etaline
9.2.2 Variant with clamped casing cover
[ Supplied in packaging units only
Table26: This view applies to the following pump sizes:
32-32-160 40-40-160 50-50-160 65-65-160 80-80-160 100-100-125
100-100-160
100-100-200
125-125-160
125-125-200
150-150-200

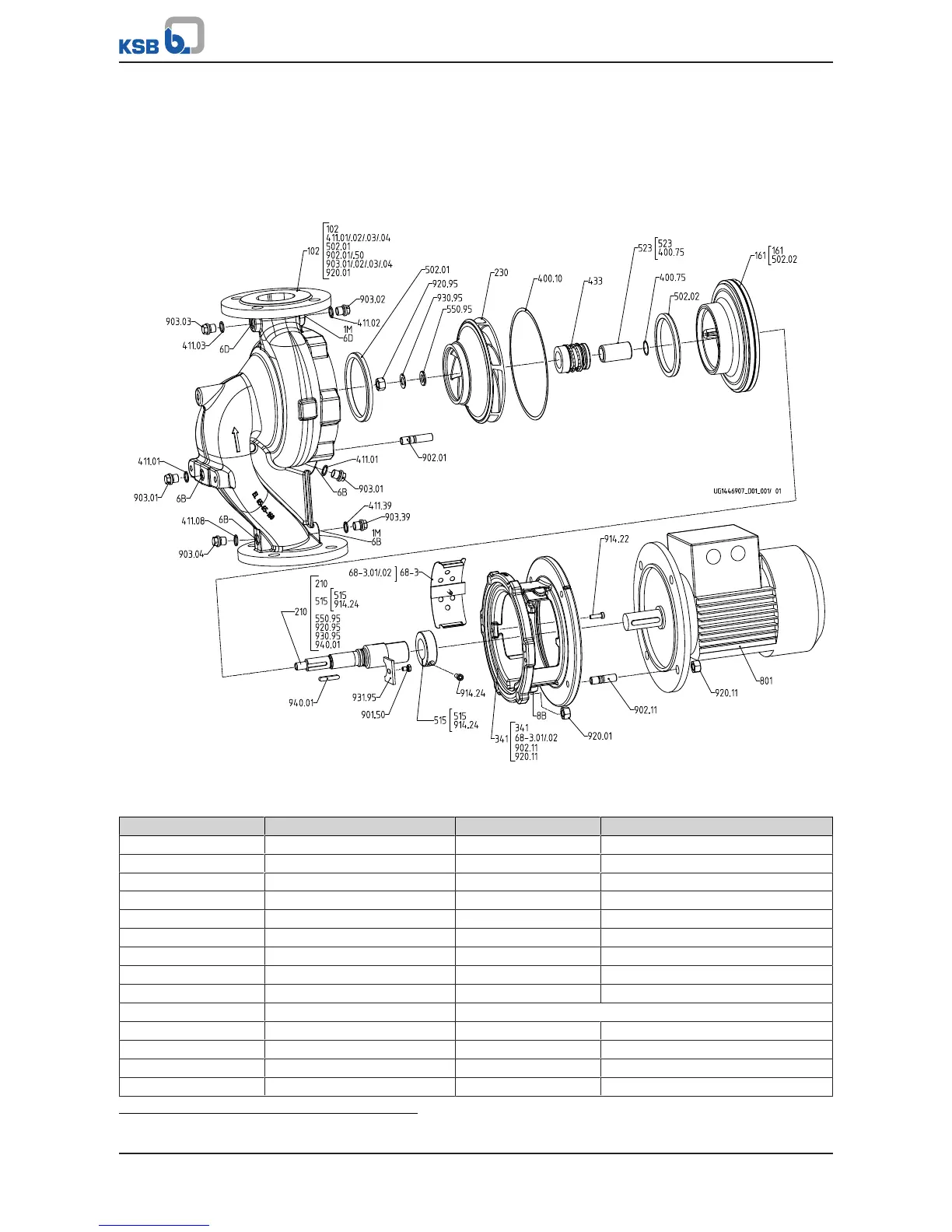

Fig.14: Pump set with single mechanical seal and clamped casing cover
Table27: List of components
Part No. Description Part No. Description
102 Volute casing 901.50 Hexagon head bolt
161 Casing cover 902.01/.11/.50 Stud
210 Shaft 903.01/.02/.03/.04/.08/.39 Screw plug
230 Impeller 914.22/.24 Hexagon socket head cap screw
341 Drive lantern 920.01/.11/.95 Hexagon nut
400.10/.75 Gasket 930.95 Safety device
411.01/.02/.03/.04/.08/.39 O-ring 931.95 Lock washer
433 Mechanical seal 940.01 Key
502.01/.02 Casing wear ring
515 Taper lock ring Auxiliary connections
523 Shaft sleeve 1M Pressure gauge
550.95 Disc
9)
6B Fluid drain
68-3.01/.02 Cover plate 6D Fluid priming and venting
801 Flanged motor 8B Leakage drain
9) For shaft unit 25 only
