KSB Etaline - Exploded View and List of Components; Variant with Bolted Casing Cover

9 Related Documents
55 of 64
Etaline
9.2 Exploded view and list of components
9.2.1 Variant with bolted casing cover
[ Supplied in packaging units only
Table24: This view applies to the following pump sizes:
032-032-200 040-040-250 050-050-250 065-065-250 080-080-200 100-100-250 125-125-250 150-150-250 200-200-250
080-080-250 200-200-315

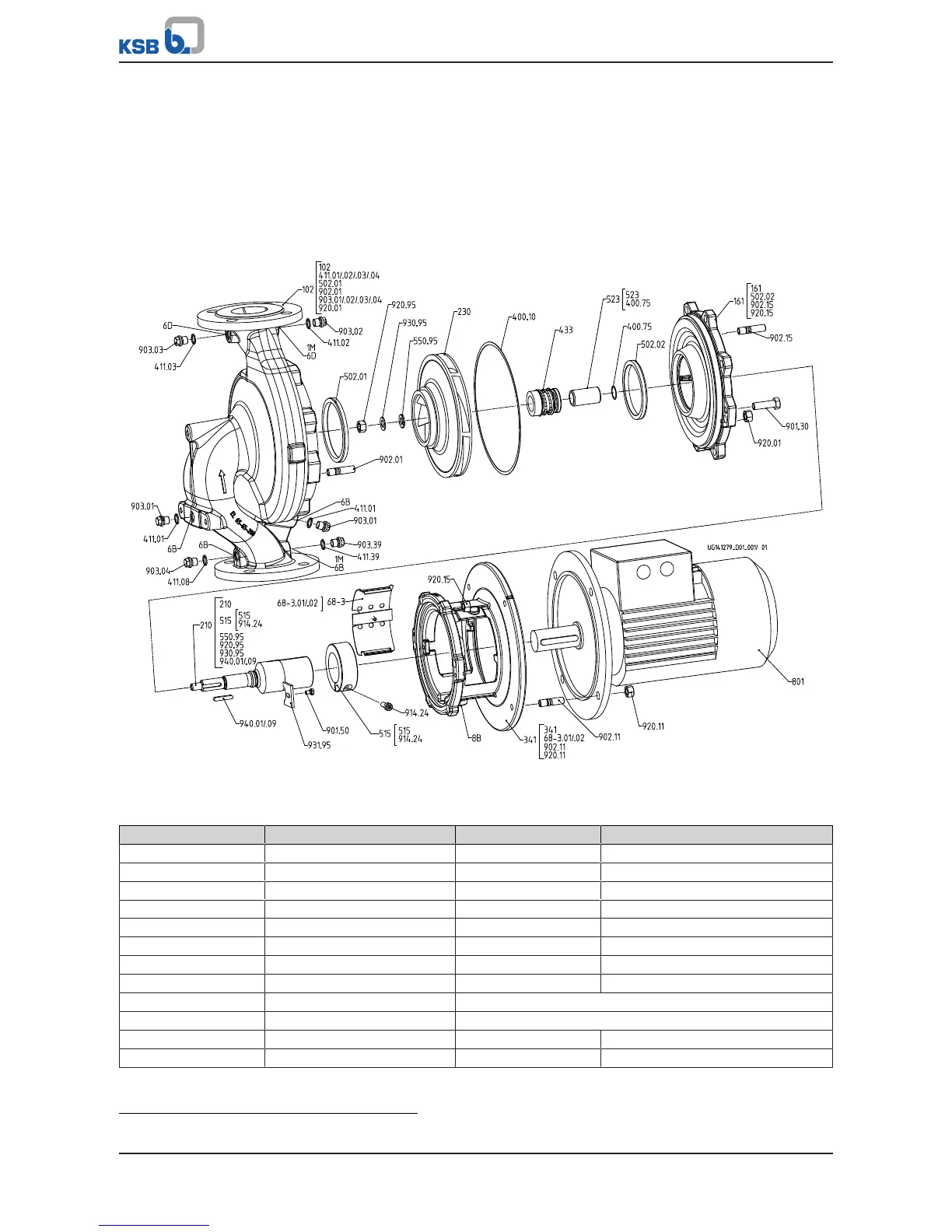

Fig.13: Version with bolted casing cover
Table25: List of components
Part No. Description Part No. Description
102 Volute casing 901.30/.50 Hexagon head bolt
161 Casing cover 902.01/.11/.15 Stud
210 Shaft 903.01/.02/.03/.04/.08/.39 Screw plug
230 Impeller 914.24 Hexagon socket head cap screw
341 Drive lantern 920.01/.11/.15/.95 Hexagon nut
400.10/.75 Gasket 930.95 Safety device
411.01/.02/.03/.04/.08/.39 O-ring 931.95 Lock washer
433 Mechanical seal 940.01/.09 Key
502.01/.02 Casing wear ring
515 Taper lock ring Auxiliary connections
523 Shaft sleeve 1M Pressure gauge
550.95 Disc
8)
6B Fluid drain
8) For shaft unit 25 only
