9 Related Documents
54 of 64
Etaline

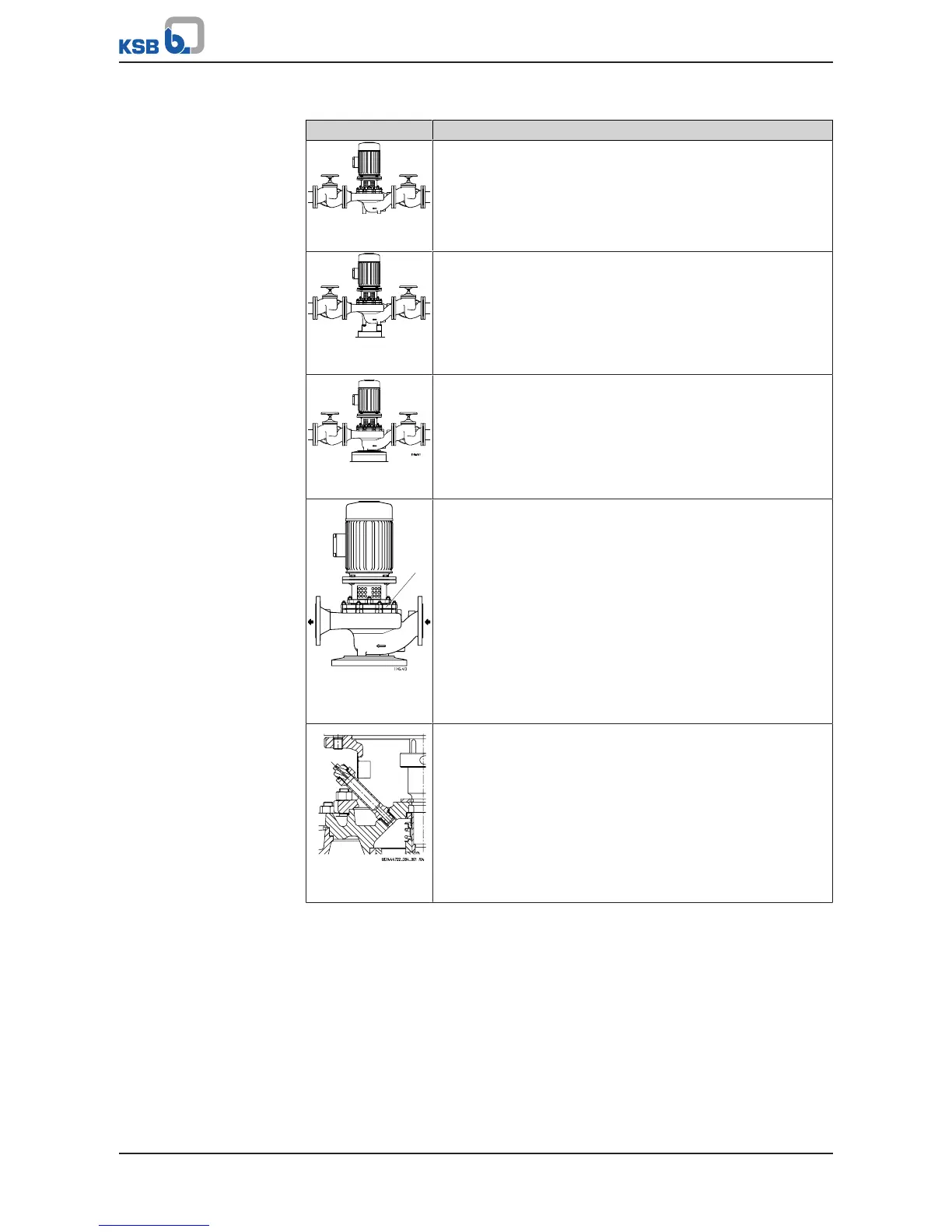

Table23: Vertical installation
Example drawing Particularities
Vertical installation
without feet
Mounted without feet
Sizes 032-032-160 to 100-100-125
Pumps up to size 100-100-125 can be installed directly in the
piping without requiring any additional supports. Always
anchor the pipes in close proximity to the pump in this case.
Vertical installation
with angle feet
Mounted on 3 angle feet (St 37, accessory)
Sizes 032-032-160 to 100-100-125
Vertical installation
with pump foot
Mounted on pump foot (grey cast iron, accessory)
Sizes 100-100-160 to 200-200-315
5B
Vertical installation
– Information
about vent valve
Provide a vent valve to prevent dry running of the mechanical
seal.
(Pumps which have been ordered for vertical installation are
supplied with a vent valve.)
For vertical installation with the motor on top, use connection
5B for venting.
5B
Vent, mechanical
seal chamber
The mechanical seal chamber can be vented with vent valve 5B.
