KSB Etaline - Name Plate Information; Design Details and Features

4 Description of the Pump (Set)
17 of 64
Etaline
Position Code Description
37-39 Efficiency class
40-43 PumpDrive
PD2 PumpDrive2
PD2E PumpDrive2Eco
IFS MyFlow Drive
44 PumpMeter
M PumpMeter
4.4 Name plate
KSB SE & Co. KGaA
Johann-Klein-Straße 9
67227 Frankenthal
ZN 3823 - 217Mat. No. 01216137
ETL 032-0032-160 GG AV11D2
Etaline 01551156 Ø 169 mm
9971234567 000100 / 01
Q 25,00 m³/h H 30,00 m
v 1,0 mm²/s n 2900
1/min
2018
MEI ≥ 0,40
η --,-%
1
2
3
4
5
6
7
8
9
10
11
12

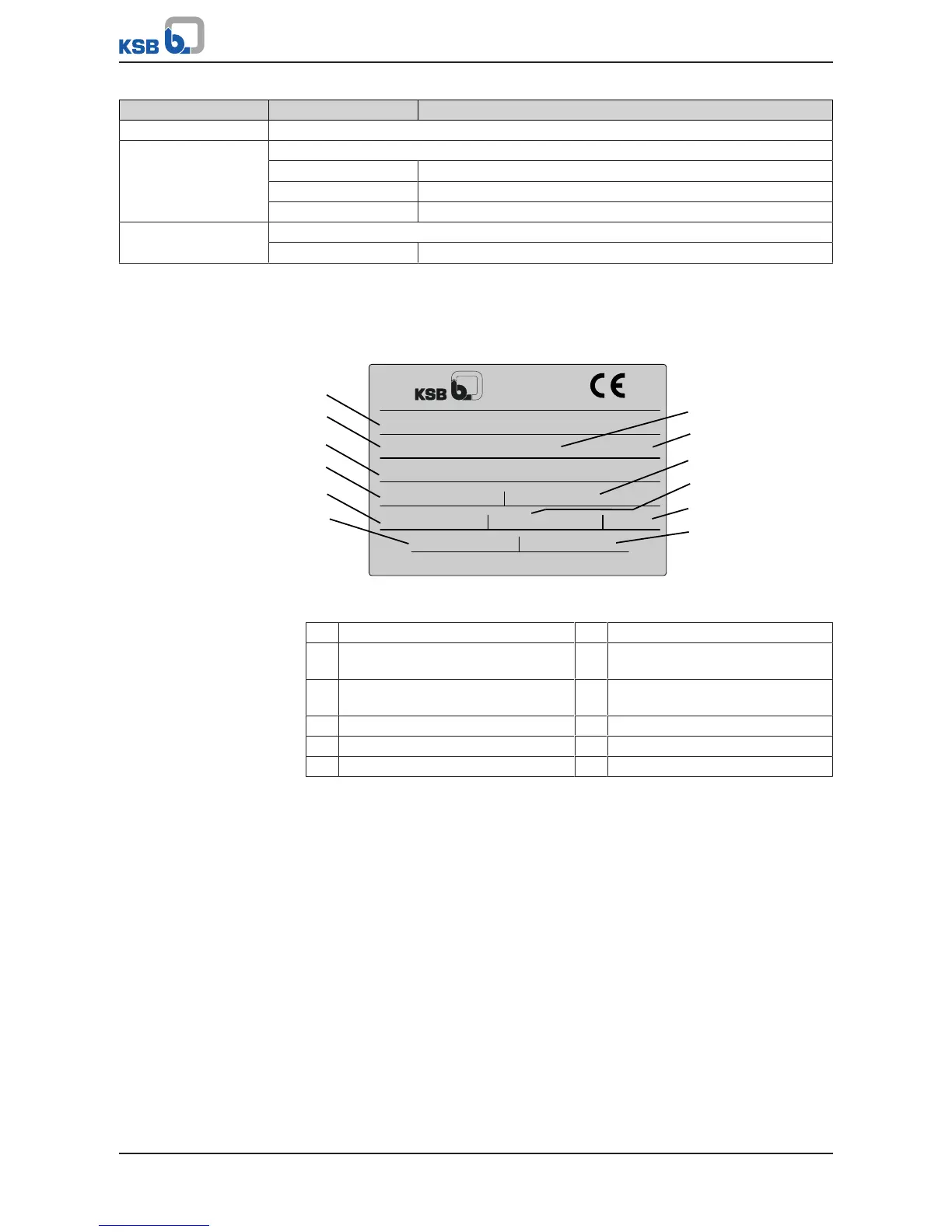

Fig.4: Name plate (example)
1 Type series code, size and version 2 Type series
3 KSB order No., order item No. and
consecutive No.
4 Flow rate
5 Kinematic viscosity of the fluid
handled
6 Minimum efficiency index
7 Material number (if applicable) 8 Impeller diameter
9 Head 10 Speed
11 Year of construction 12 Efficiency (see data sheet)
4.5 Design details
Design
▪ Volute casing pump
▪ Close-coupled design/in-line design
▪ Single-stage
▪ Horizontal/vertical installation
▪ Pump and motor on a common shaft
▪ Rigid connection between pump and motor
▪ Requirements to 2009/125/EC Directive
Pump casing
▪ Radially split volute casing
▪ Replaceable casing wear rings
▪ In-line design
