KSB Etaline - Tightening Torques

7 Servicing/Maintenance
47 of 64
Etaline
7.6 Tightening torques

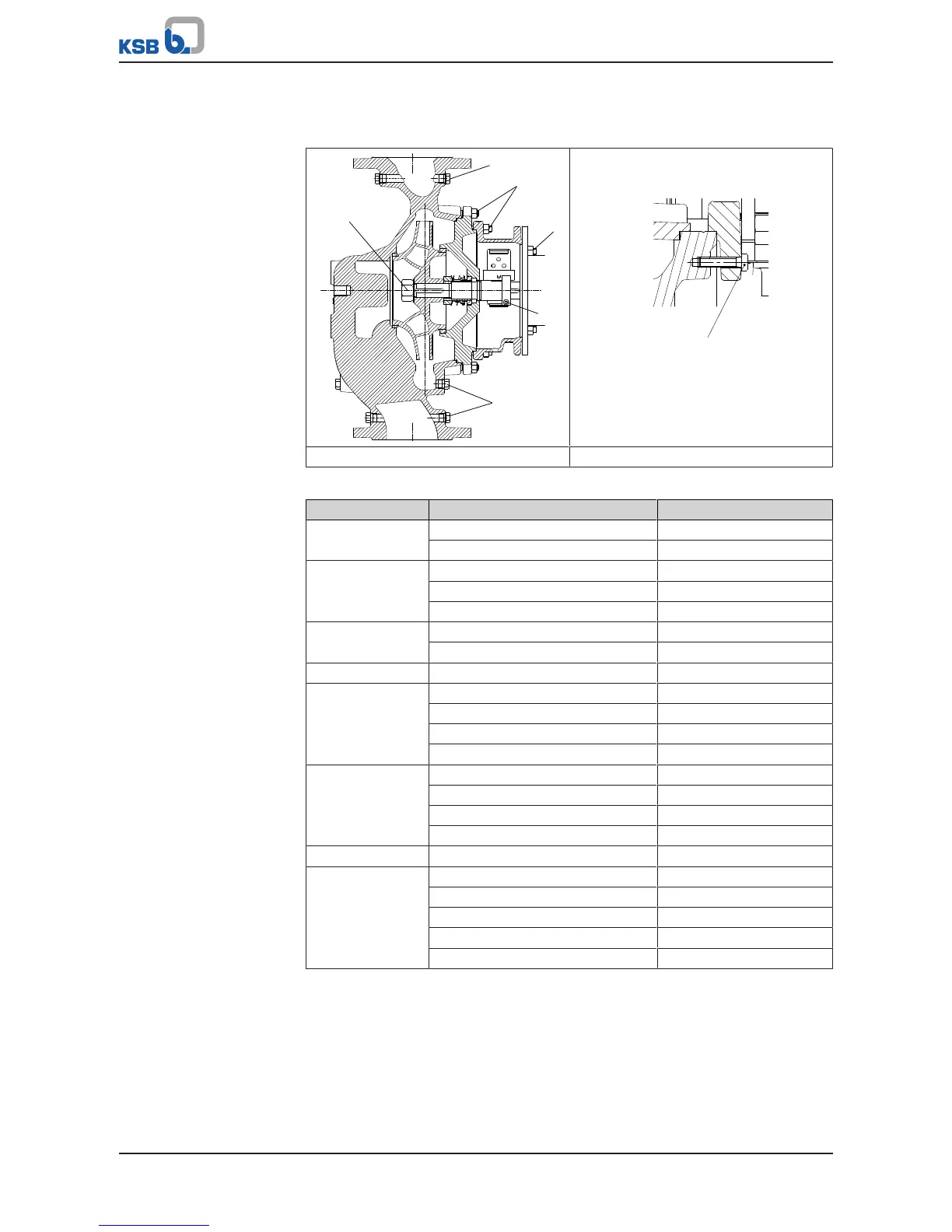

Table16: Tightening points
A
E
F
B
X
X
G
Version with bolted casing cover Version with clamped casing cover
Table17: Tightening torques for bolted/screwed connections at the pump
Position Thread [Nm]
A M12 55
M16 130
B M12 × 1,5 55
M24 × 1,5 130
M30 × 1,5 170
C M8 20
M10 38
D M12 90
E M8 20
M10 38
M12 55
M16 130
F M6 15
M8 38
M10 38
M12 55
G M6 5
X 1/8 25
1/4 55
3/8 80
1/2 130
3/4 220
