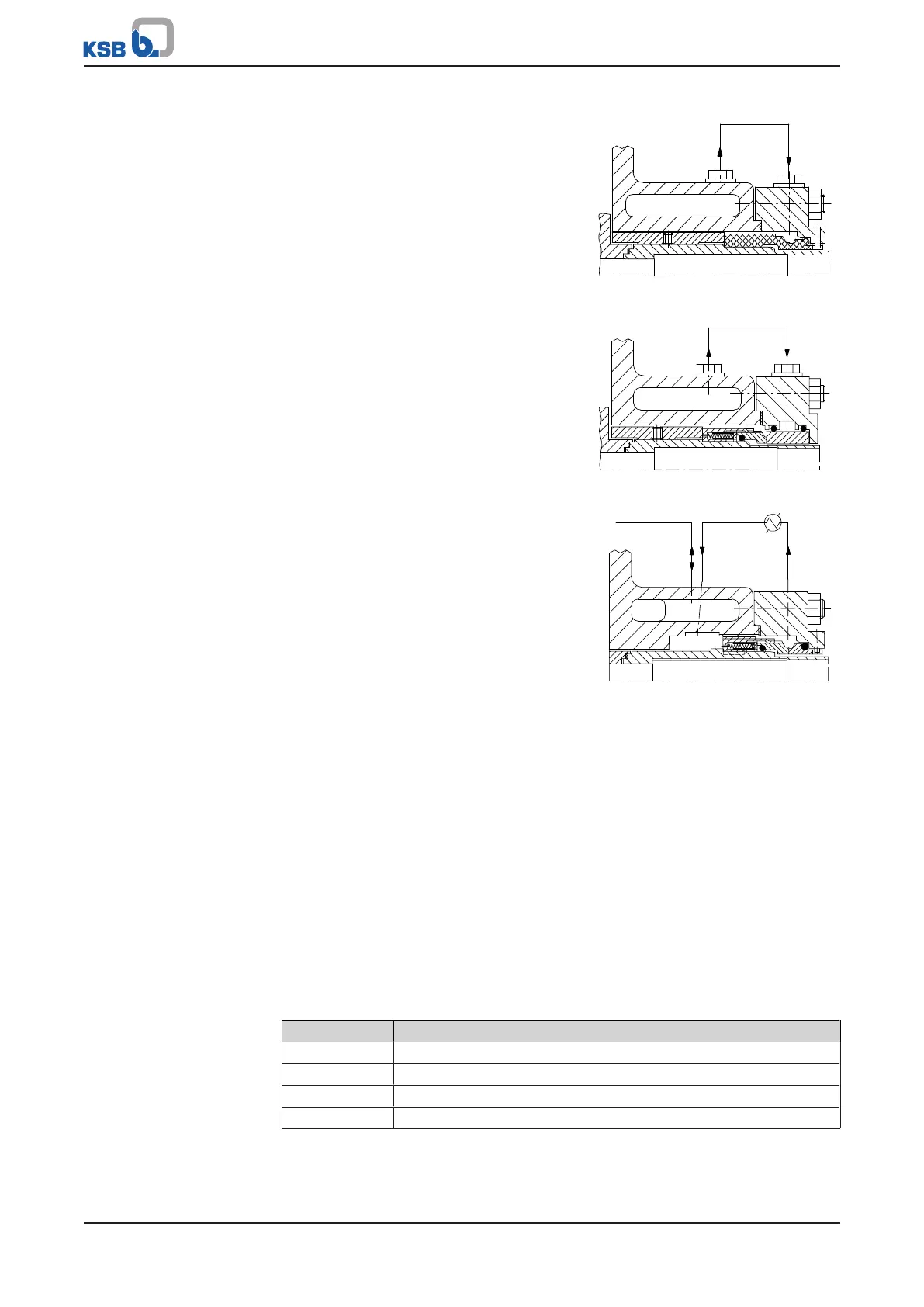

4 Description of the Pump (Set)
19 of 80
HPK
1121.8/06-EN
Mechanical seal with jacket cooling
(operating mode "BM")
Cooled shaft seal with single, balanced
mechanical seal
Cooling of seal chamber via seal housing
Venting via clearance gap
Cooling liquid IN/OUT
Mechanical seal with jacket and seat ring
cooling
(operating mode "BG")
Cooled shaft seal with single, balanced
mechanical seal
Cooling of seal chamber via seal housing
and coolable mating ring
Venting via clearance gap
Cooling liquid IN/OUT
Mechanical seal with jacket cooling and
product circulation through external heat
exchanger
(operating mode "BR")
Cooled shaft seal with single, balanced
mechanical seal
Cooling of seal chamber via seal housing
and product circulation through external
heat exchanger (pumping ring)
Cooling liquid IN/OUT
Circulation
Bearing assembly
Design specifications Drive-end bearing:
Fixed bearing
Paired angular contact ball bearings
Axial movement of the rotor limited to 0.5 mm maximum
Oil lubrication
Pump-end bearing:
Radial bearing
Cylindrical roller bearing
Absorbs radial loads only
Oil lubrication
Bearing bracket designation Example: P04as
Table7: Bearing bracket designation
Designation Description
P Bearing bracket
04 Size code (based on dimensions of seal chamber and shaft end)
a Reinforced (next bearing size up)
s Paired angular contact ball bearings (motor end)
Refer to the data sheet to find your bearing design.
