▪ Check the alignment of pump and motor.
▪ Align the pump with the piping.
▪ Install and align the coupling.
▪ Connect the piping.
▪ Perform precision alignment of pump and motor.
▪ Remove any transport locks.
5.3.1 Type of installation 3E
DANGER
The pump or individual components could slip out of the suspension arrangement
Danger to life from falling parts!
▷ Always transport the pump or components in the specified position.
▷ Never attach the suspension arrangement to the free shaft end of the pump.
▷ Refer to the weights indicated for the individual components.
▷ Observe the applicable local health and safety regulations.
▷ Use suitable, permitted lifting accessories.

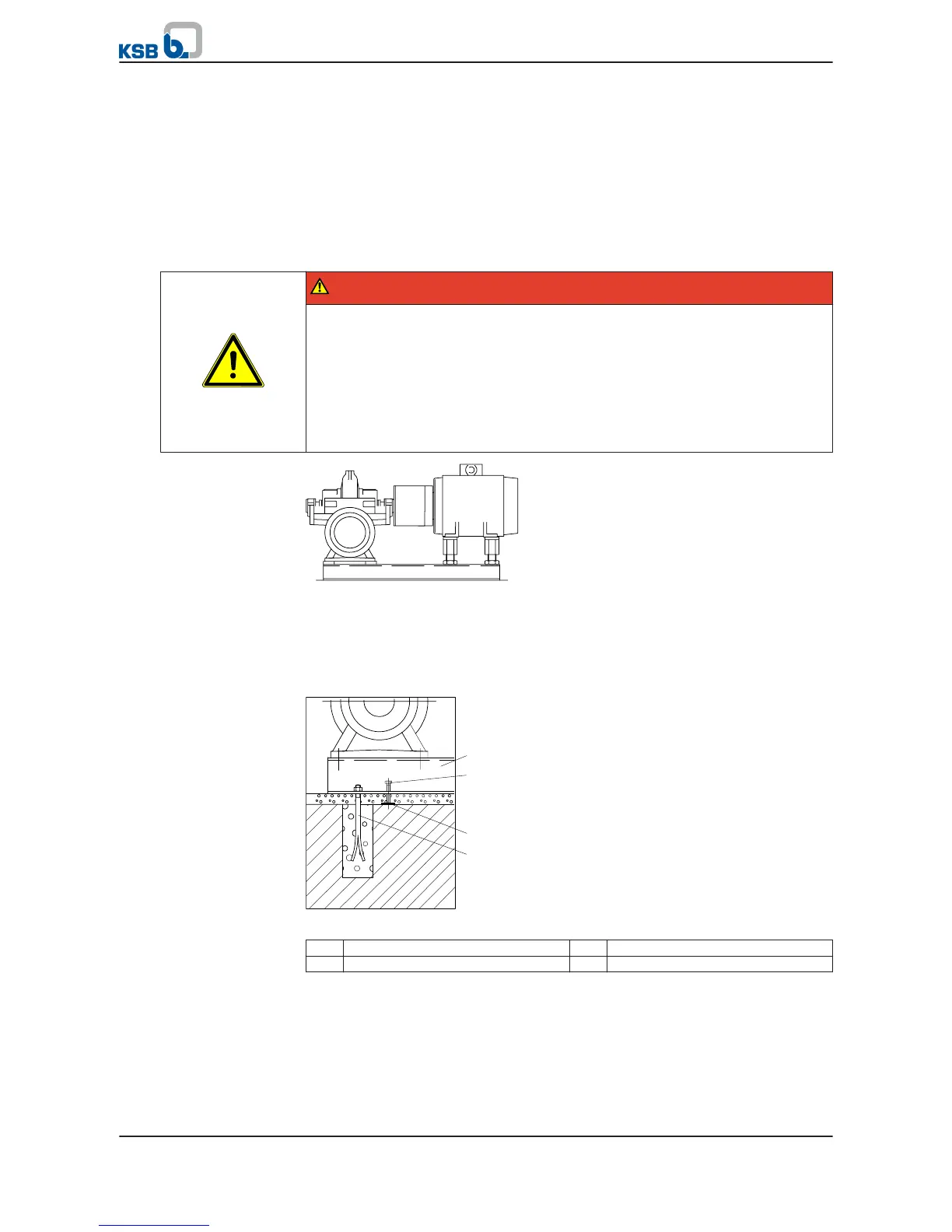

Fig. 4: 3E installation — pump and motor on a common base frame
✓ The relevant general arrangement drawing is available.
✓ The foundation has the required strength and characteristics.
✓ The foundation has been prepared in accordance with the dimensions given in
the outline drawing.
Fig. 5: Installation drawing
1
Base frame, part No. 891 2 Adjusting screw, part No. 901.05
3 Shim, part No. 89-4.03 4 Foundation bolt, part No. 900.01
1. Screw adjusting screws (2) into the threaded holes provided in the base frame
(1).
2. Insert the foundation bolts (4) into the drilled holes of the base frame (1).
3. Place the shim (3) next to the holes for the foundation bolts (4) in accordance
with the general arrangement drawing.
4. Align the pump with the piping.
5 Installation at Site
24 of 94
Omega / Omega V
