5. Place the base frame (1) with the inserted foundation bolts (4) and the screwed-
in adjusting screws (2) on the shims (3). Use the adjusting screws to align the
base frame.
6. Grout the holes for the foundation bolts with a quick-setting, low-shrinkage
concrete mixture
5)
.
7. When the concrete has set, tighten the foundation bolts evenly until no
clearance remains between the nuts and the base frame.
8. Grout the base frame with a quick-setting, low-shrinkage concrete mixture
5)
.
Make sure that the base frame is completely grouted and that no cavities
remain.
9. When the concrete has set, tighten the foundation bolts.
10. Lift the motor (if not already mounted) onto the base frame with suitable
lifting equipment. Align the shafts with each other. Mount the motor as
described in the motor manufacturer's operating manual.
11. Connect the piping to the pump without transmitting any stresses or strains.
(⇨ Section 5.4 Page 30)
12. Align the coupling as described in the coupling manufacturer's operating
manual.
5.3.2
Type of installation DJ
DANGER
The pump or individual components could slip out of the suspension arrangement
Danger to life from falling parts!
▷ Always transport the pump or components in the specified position.
▷ Never attach the suspension arrangement to the free shaft end of the pump.
▷ Refer to the weights indicated for the individual components.
▷ Observe the applicable local health and safety regulations.
▷ Use suitable, permitted lifting accessories.

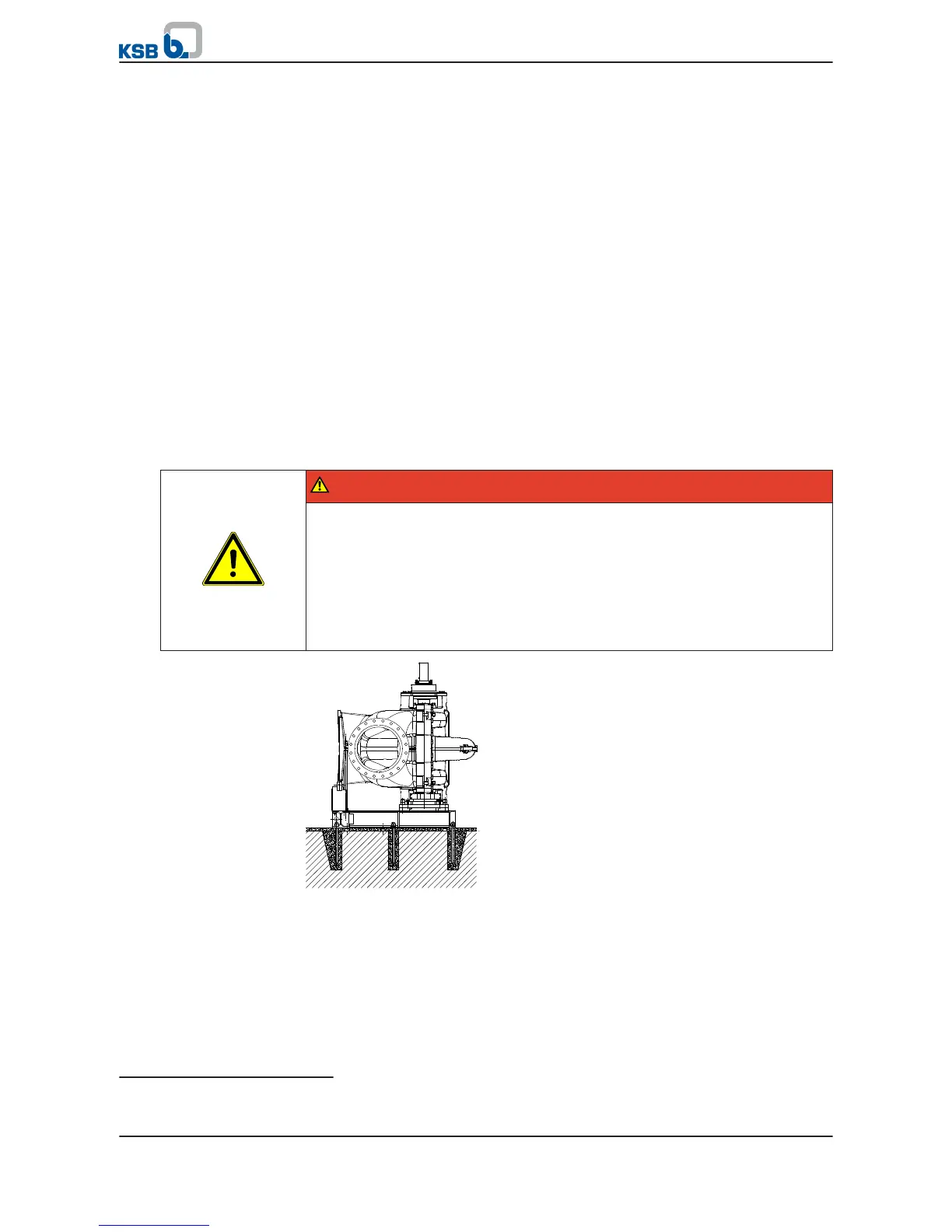

Fig. 6: Pump on its own foot (baseplate), drive on a different construction level
✓ The relevant general arrangement drawing is available.
✓ The foundation has the required strength and characteristics.
✓ The foundation has been prepared in accordance with the dimensions given in
the general arrangement drawing.
✓ The motor is installed on a separate base frame which is arranged on a higher
level in the building in accordance with the motor manufacturer's operating
instructions.
5)
Minimum strength class C2
5 Installation at Site
Omega / Omega V
25 of 94
