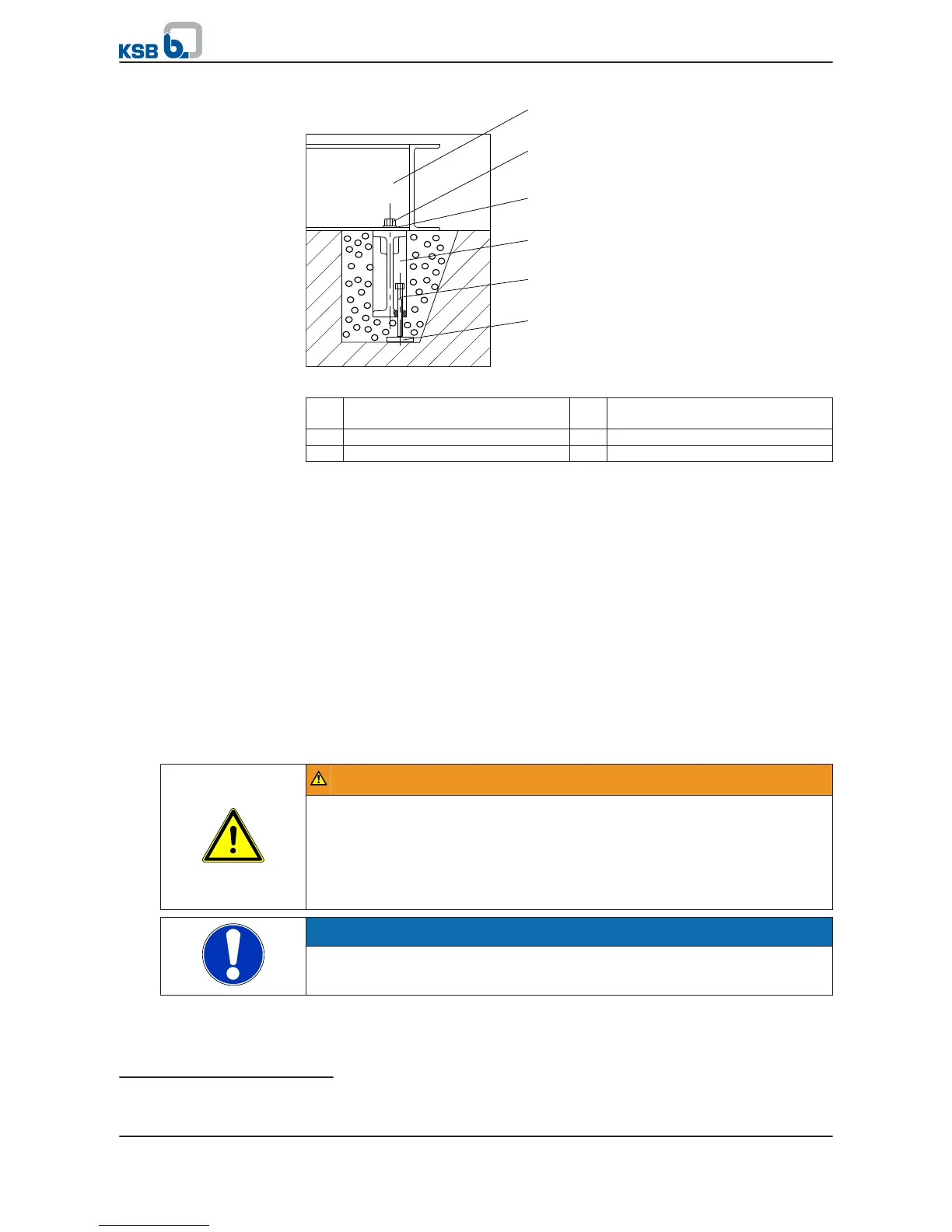

Fig. 7: Installation drawing
1
Foot, part No. 182 2 Hexagon head bolt, part No.
901-11
3 Disc, part No. 550.05 4 Foundation block, part No. 898.01
5 Adjusting screw, part No. 901.10 6 Shim, part No. 89-4.04
1. Screw the foundation blocks (4) with hexagon head bolts (2) and discs (3) to the
foot (1).
2. Screw the adjusting screws (5) into the foundation blocks (4).
3. Place the shim (6) into the recesses for the foundation blocks (4) in accordance
with the general arrangement drawing.
4. Align the pump with the piping.
5. Place the foot (4) including the foundation blocks (1) with the adjusting screws
(5) on the shims (6). Use the adjusting screws to align the foot.
6. Grout the holes for the foundation blocks with a quick-setting, low-shrinkage
concrete mixture.
6)
7. When the concrete has set, tighten the foundation bolts (2) evenly.
8. Connect the piping to the pump without transmitting any stresses or strains.
(⇨ Section 5.4 Page 30)
5.3.3
Installation type DJ with cardan shaft
WARNING
Exposed rotating coupling or universal-joint shaft
Risk of injury by rotating shafts!
▷ Always operate the pump set with a coupling guard.
If the customer specifically requests not to include a coupling guard in KSB's
delivery, then the operator must supply one!
▷ Observe all relevant regulations for selecting a coupling guard.
NOTE
If the customer specifically requests not to include a cardan shaft guard in our
delivery, then the operator must supply one.
For installing and aligning the cardan shaft refer to the technical product literature
of the cardan shaft manufacturer.
6)
Minimum strength class C25/30
5 Installation at Site
26 of 94
Omega / Omega V
