KSB Omega User Manual

5.3.4 Type of installation DB and DK
DANGER
The pump or individual components could slip out of the suspension arrangement
Danger to life from falling parts!
▷ Always transport the pump or components in the specified position.
▷ Never attach the suspension arrangement to the free shaft end of the pump.
▷ Refer to the weights indicated for the individual components.
▷ Observe the applicable local health and safety regulations.
▷ Use suitable, permitted lifting accessories.

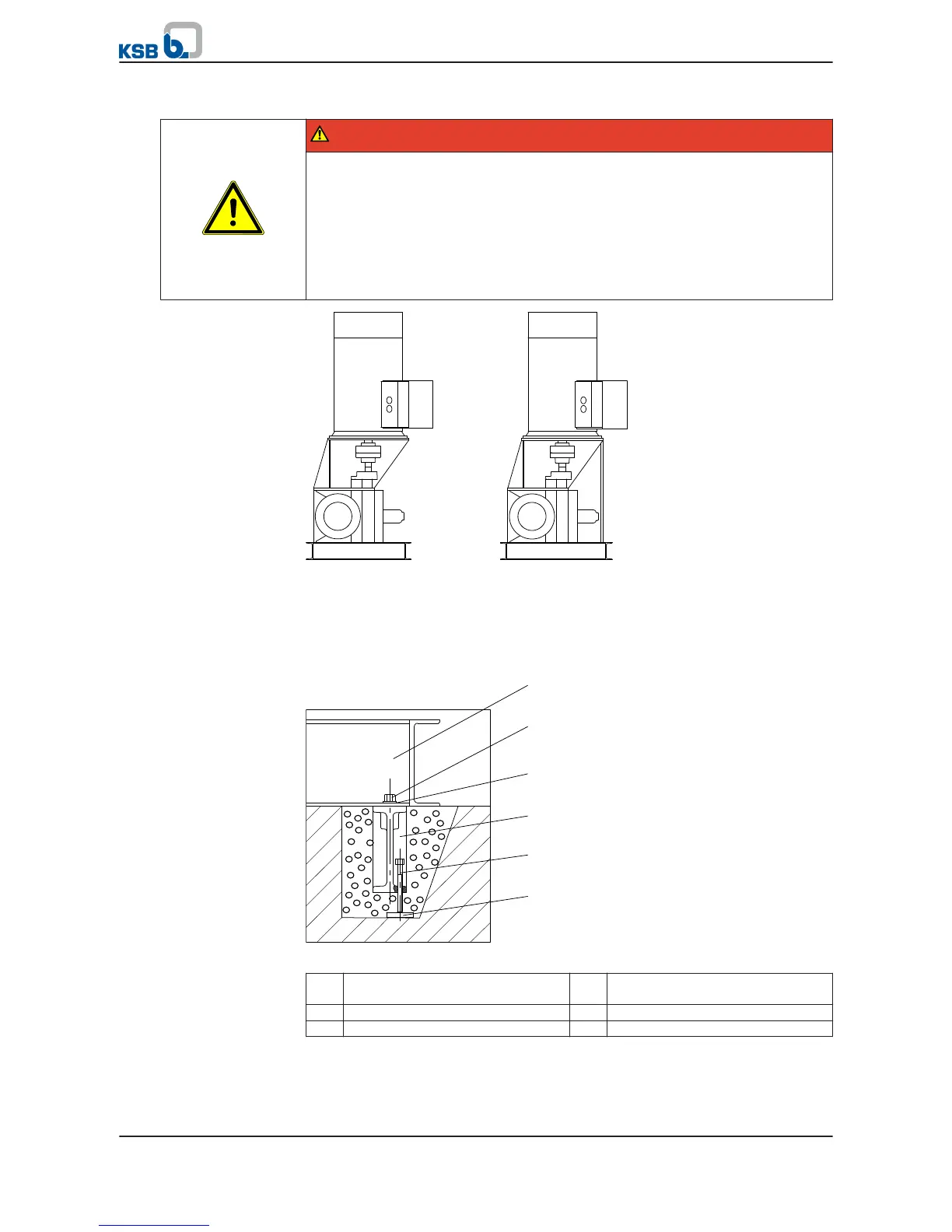

Fig. 8: DB and DK installation
✓ The relevant general arrangement drawing is available.
✓ The foundation has the required strength and characteristics.
✓ The foundation has been prepared in accordance with the dimensions given in
the general arrangement drawing.
1
2
3
4
5
6
Fig. 9: Installation drawing
1
Foot, part No. 182 2 Hexagon head bolt, part No.
901-11
3 Disc, part No. 550.05 4 Foundation block, part No. 898.01
5 Adjusting screw, part No. 901.10 6 Shim, part No. 89-4.04
1. Screw the foundation blocks (4) with hexagon head bolts (2) and discs (3) to the
foot (1).
2. Screw the adjusting screws (5) into the foundation blocks (4).
5 Installation at Site
Omega / Omega V
27 of 94

KSB Omega Specifications

General

Application	Water supply, irrigation
Operating pressure	Up to 16 bar
Speed	2900 rpm, 1450 rpm
Connection Size	DN 32 to DN 400
Housing Material	Cast iron, stainless steel
Impeller Material	Bronze, stainless steel, cast iron
Seal Type	Mechanical seal
Operating Temperature	-10°C to +120°C
