KSB Omega User Manual

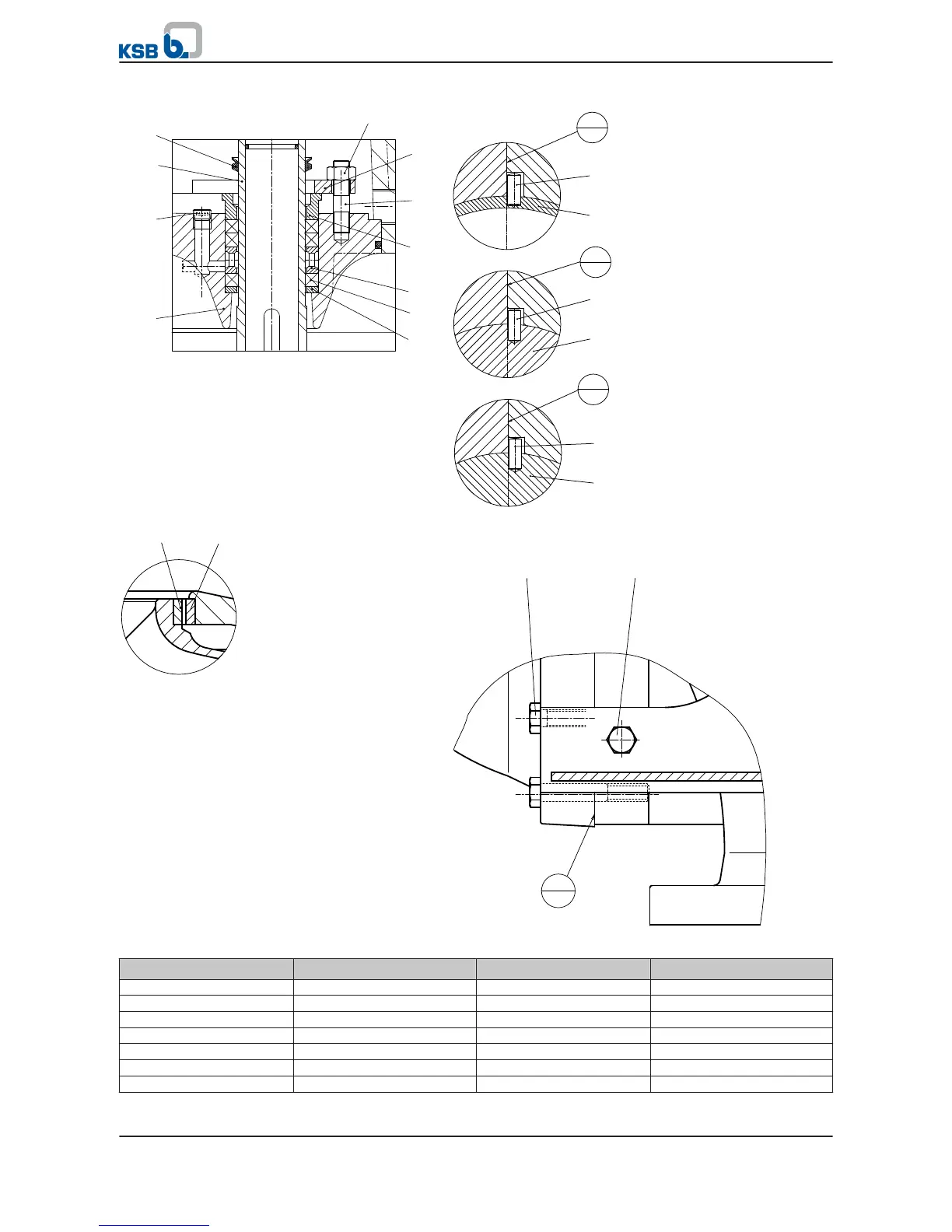

Detailed view: gland packing Detailed view: pin position
411.01
524.01
903.02
441
920.02
452
902.01
455
458
461
457
561.01
502
561.02
441
561.04
350.02
L
5203
L
5203
L
5203
Detailed view: casing wear ring / impeller wear ring Detailed view: bolts at the casing split flange
503
502
901.03
901.02
901.01
901.13
901.12
L
5203
Table 23: List of components
Part No. Description Part No. Description
102 Volute casing 503 Impeller wear ring
160 Cover 524.01/.02 Shaft protecting sleeve
182 Foot 525.01/.02 Spacer sleeve
211 Pump shaft 545 Bearing bush
234 Impeller 550.01/.02/.03/.04/.05 Disc
321 Radial ball bearing 561.01/.02/.04 Grooved pin
350.01/.02 Bearing housing 593 Rail
9 Related Documents
Omega / Omega V
79 of 94

KSB Omega Specifications

General

Application	Water supply, irrigation
Operating pressure	Up to 16 bar
Speed	2900 rpm, 1450 rpm
Connection Size	DN 32 to DN 400
Housing Material	Cast iron, stainless steel
Impeller Material	Bronze, stainless steel, cast iron
Seal Type	Mechanical seal
Operating Temperature	-10°C to +120°C
