15 WHEELS, TIRES 119
309487-11

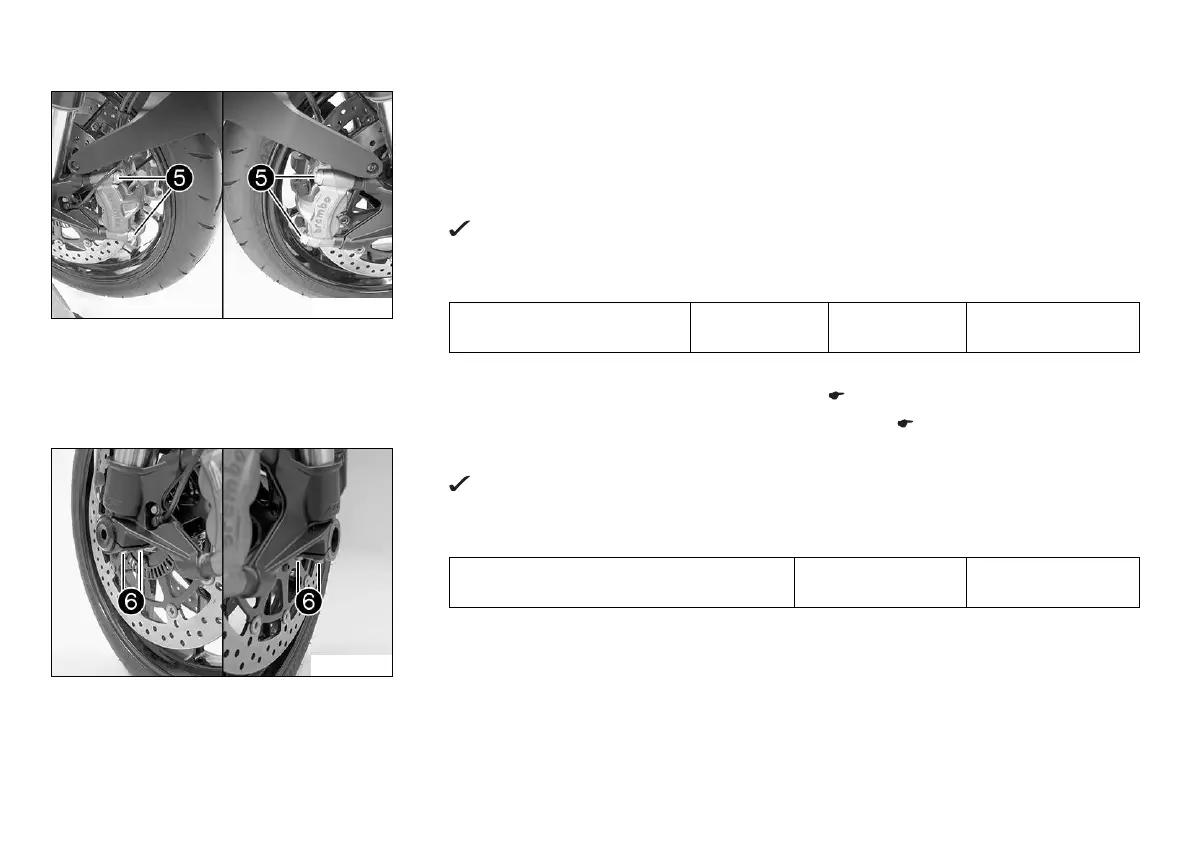

– Position the brake calipers and check that the brake linings are seated correctly.
–
Mount screws
on both brake calipers but do not tighten yet.
– Operate the hand brake lever repeatedly until the brake linings are in contact with the
brake disc and there is a pressure point. Fix the hand brake lever in the activated posi-
tion.
The brake calipers straighten.
–
Tighten screws
on both brake calipers.
Guideline
Screw, front brake caliper M10 45 Nm
(33.2 lbf ft)
Loctite
®
243™
– Remove the fixation of the hand brake lever.
– Take the motorcycle from the front lifting gear. ( p. 91)
– Remove the rear of the motorcycle from the lifting gear. ( p. 89)
309493-10
– Pull the front brake and compress the fork forcefully a few times.
The fork legs straighten.
–
Tighten screws
.
Guideline
Screw, axle clamp M8 15 Nm
(11.1 lbf ft)
