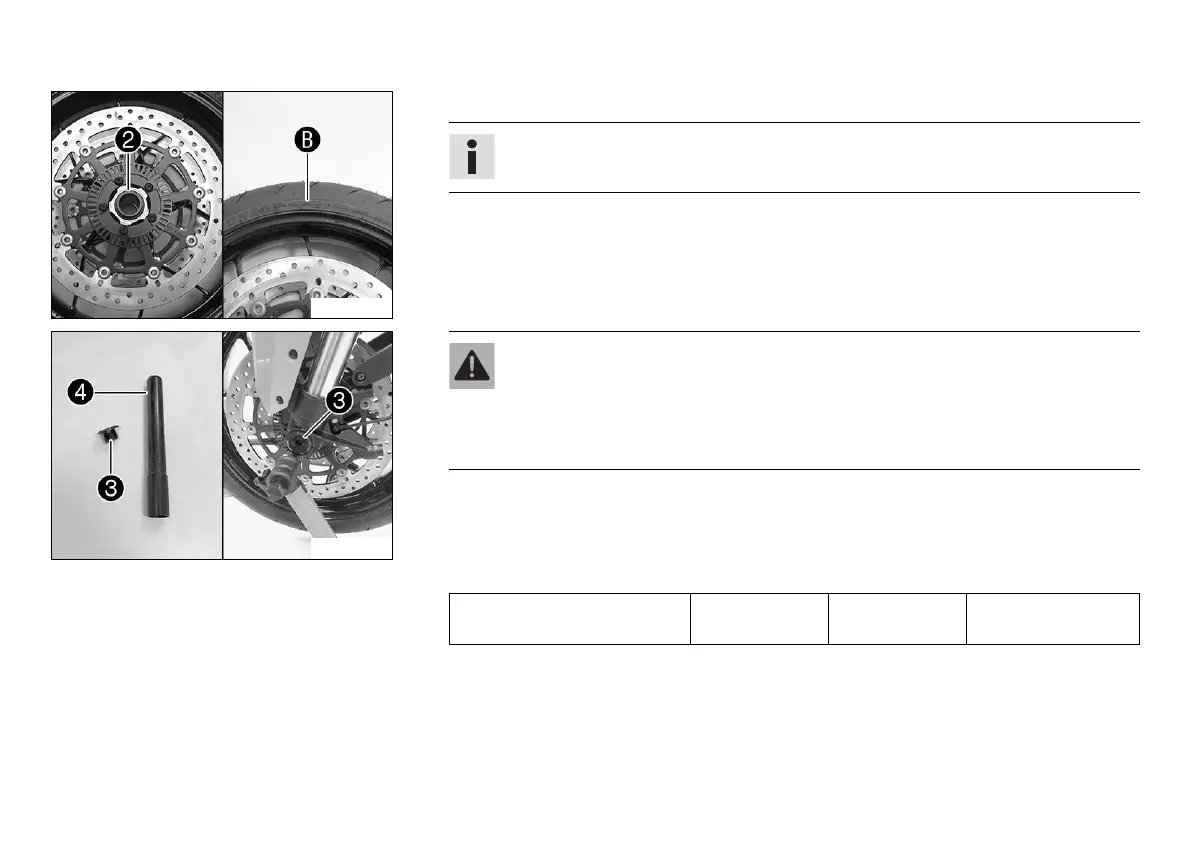

15 WHEELS, TIRES 118
309491-10
–
Insert the wide spacer
on the left in the direction of travel.
Info
The arrow
indicates the direction of travel of the front wheel.
– Insert the narrow spacer on the right in the direction of travel.
309492-10
Warning
Danger of accidents Reduced braking efficiency due to oil or grease on the
brake discs.
– Always keep the brake discs free of oil and grease, and clean them with
brake cleaner when necessary.
–
Clean screw
and wheel spindle
.
– Lift the front wheel into the fork, position it, and insert the wheel spindle.
–
Mount and tighten screw
.
Guideline
Bolt, front axle M25x1.5 45 Nm
(33.2 lbf ft)
Thread greased
To Next Page
