KTM 2016 690 DUKE R User Manual

13 BRAKE SYSTEM 108
Guideline
Nut, push rod, foot brake lever M6 6 Nm (4.4 lbf ft)
–
Mount and tighten screw

.
Guideline
Screw, ball joint of push
rod on foot brake cylinder
M6 10 Nm
(7.4 lbf ft)
Loctite
®
243™
–

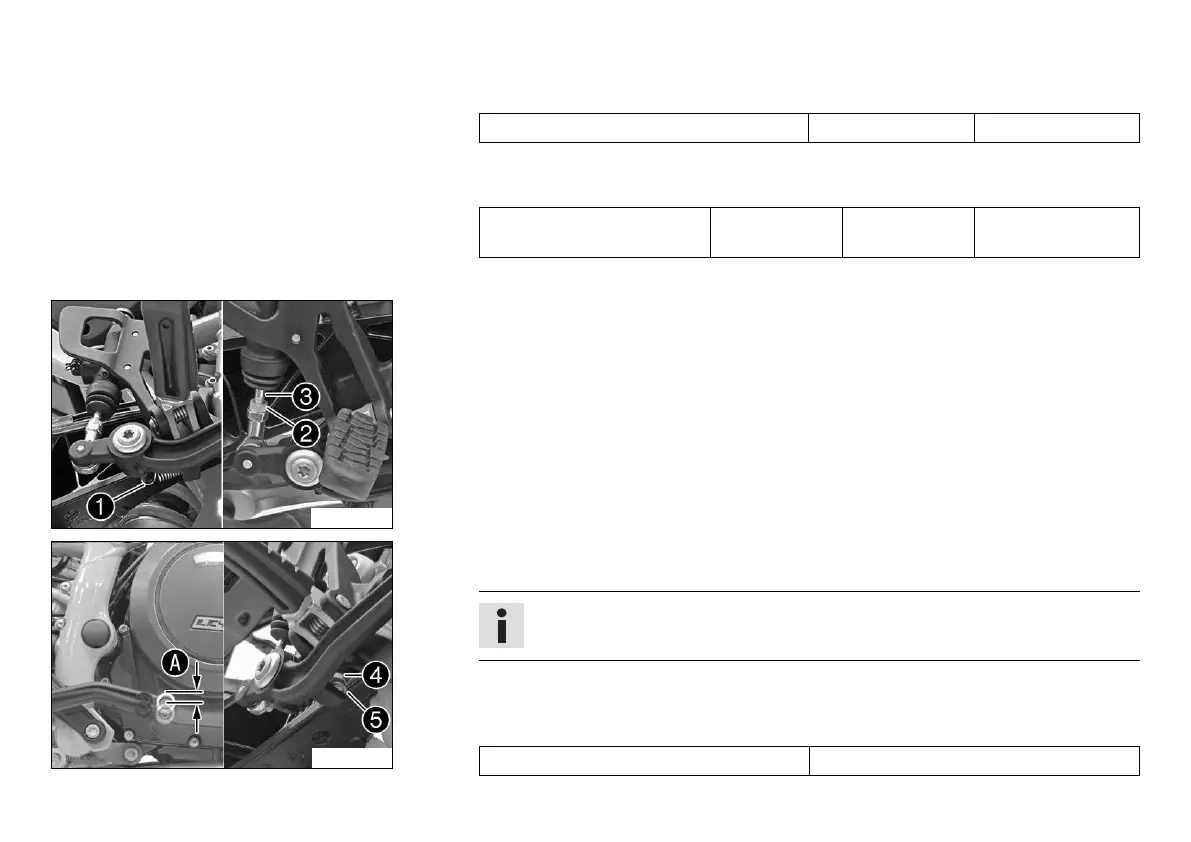

Attach spring

.
602581-10
(Duke R)
–
Disconnect spring

.
–
Loosen nut

and screw in push rod

until you have maximum free travel.
V00055-10
– To adjust the basic position of the foot brake lever to individual requirements,
loosen nut

and turn screw

accordingly.
Info
The range of adjustment is limited.
–
Turn push rod

accordingly until you have free travel

. If necessary, adjust the
basic position of the foot brake lever.
Guideline
Free travel at foot brake lever 3… 5 mm (0.12… 0.2 in)
