KTM 2016 690 DUKE R - Removing the Passenger Seat; Mounting the Passenger Seat

12 SERVICE WORK ON THE CHASSIS 86

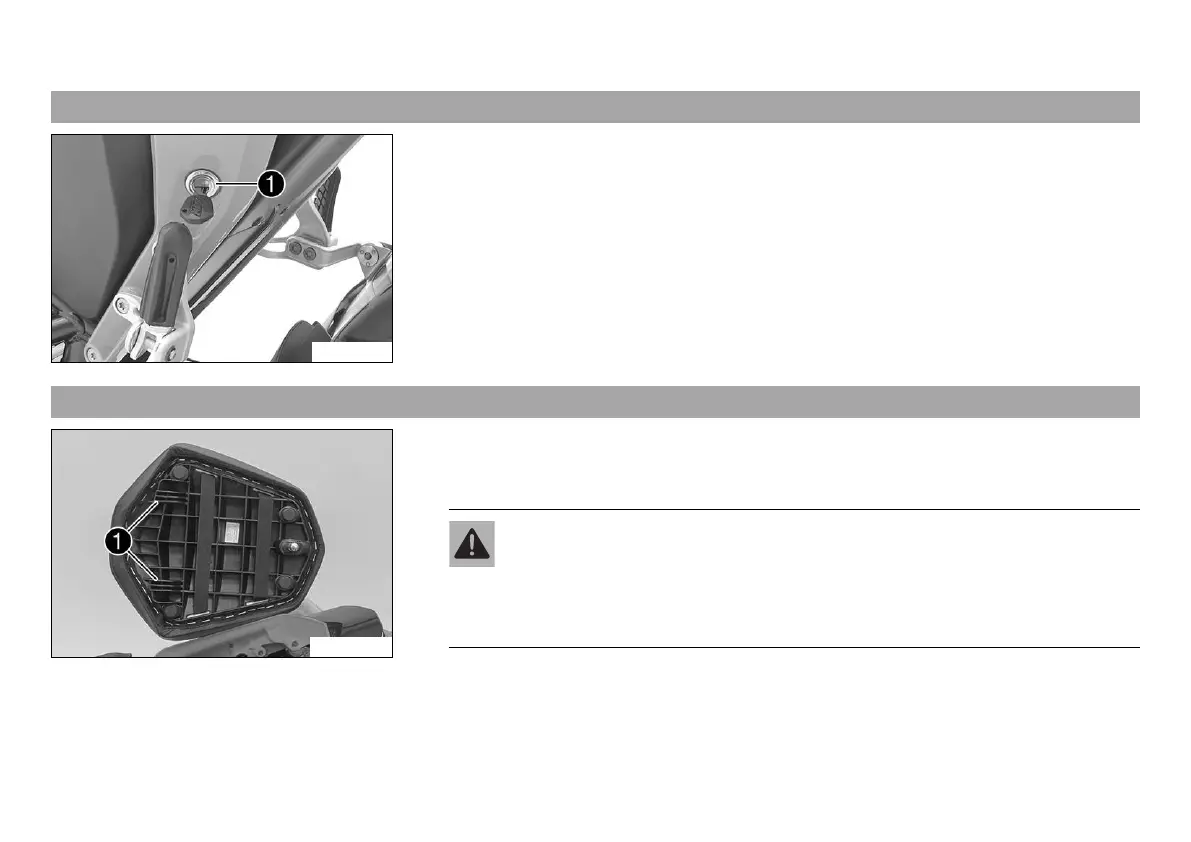

12.5 Removing the passenger seat
V00043-10
–
Insert the ignition key in seat lock

and turn it clockwise.
– Raise the rear of the passenger seat, push it towards the rear, and remove it upward.
– Remove the ignition key from the seat lock.
12.6 Mounting the passenger seat
K00421-10
–
Hook catches

of the passenger seat onto the storage compartment, lower the rear,
and simultaneously push forward.
– Press down the passenger seat until it clicks into place.
Warning
Danger of accidents The passenger seat can come loose from the anchoring if it
is not mounted correctly.
– After mounting the passenger seat, check that it is locked correctly by
pulling up.
– Finally, check that the passenger seat is correctly mounted.
