13 BRAKE SYSTEM 109
–

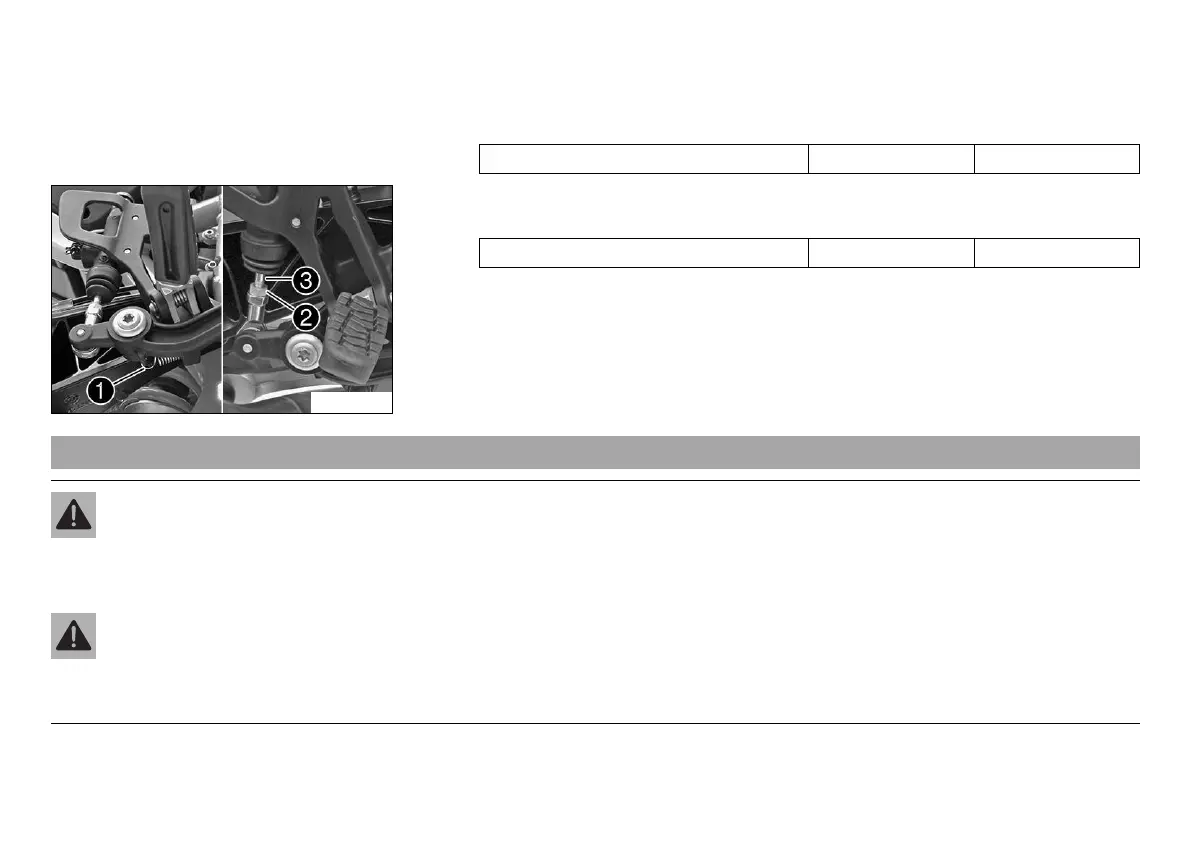

Hold screw

and tighten nut

.
Guideline
Remaining nuts, chassis M6 10 Nm (7.4 lbf ft)
602581-10
–
Hold push rod

and tighten nut

.
Guideline
Nut, push rod, foot brake lever M6 6 Nm (4.4 lbf ft)
–
Attach spring

.
13.9 Checking rear brake fluid level
Warning
Danger of accidents Failure of the brake system.
– If the brake fluid level falls below the MIN mark, this indicates a leakage in the brake system or worn-out brake linings. Check
the brake system and do not continue riding. (Your authorized KTM workshop will be glad to help.)
Warning
Danger of accidents Reduced braking efficiency due to old brake fluid.
– Change the brake fluid of the front and rear brake according to the service schedule. (Your authorized KTM workshop will be
glad to help.)
