12 SERVICE WORK ON THE CHASSIS 95

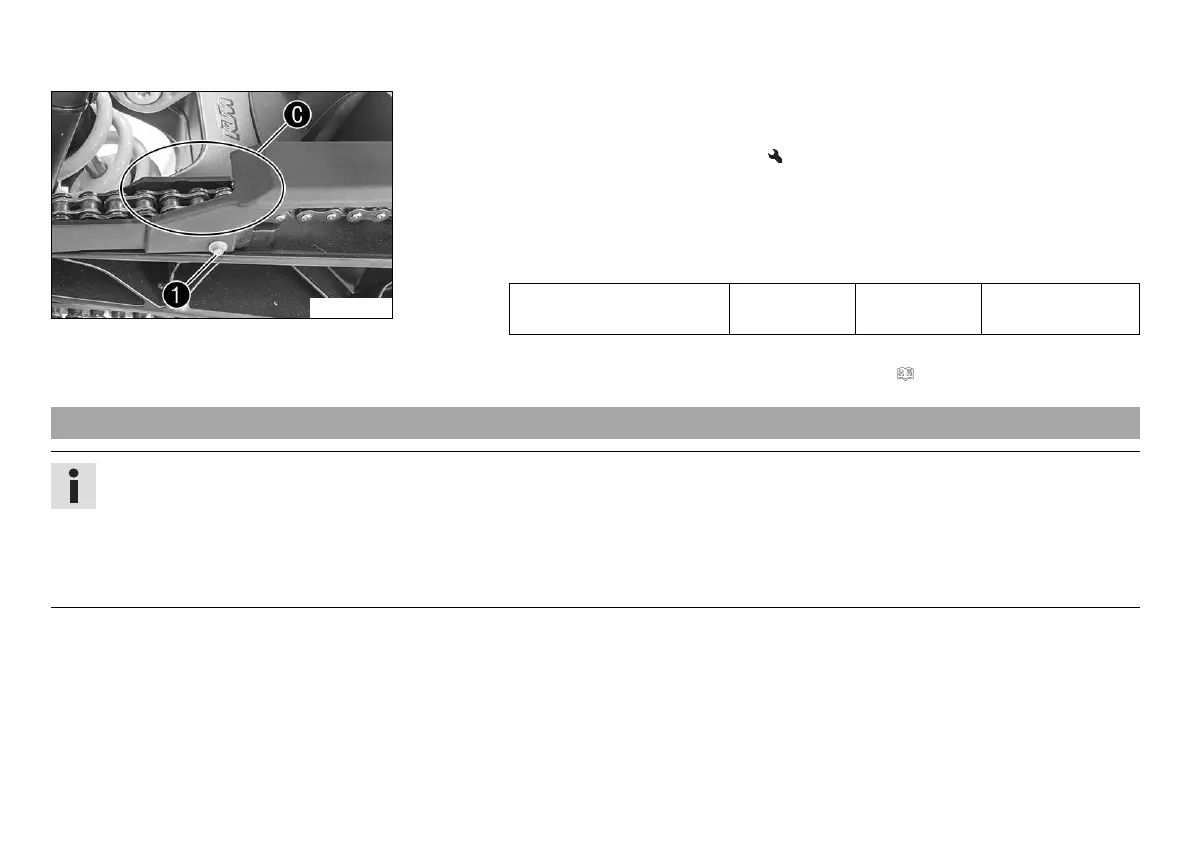

K00378-10
Check the chain sliding guard for wear.
»
If in area
by the chain sliding guard screw
is visible from above:
Replace the chain sliding guard.
Check that the chain sliding guard is firmly seated.
» If the chain sliding guard is loose:
Tighten the screw of the chain sliding guard.
Guideline
Screw, chain sliding
guard
M6 10 Nm
(7.4 lbf ft)
Loctite
®
243™
Finishing work
Remove the rear of the motorcycle from the lifting gear. ( p. 83)
12.14 Adjusting the basic position of the clutch lever
Info
Turn the adjusting screw clockwise to increase the distance between the clutch lever and the handlebar.
Turn the adjusting screw counterclockwise to decrease the distance between the clutch lever and the handlebar.
The range of adjustment is limited.
Turn the adjusting screw by hand only, and do not apply force.
Do not make any adjustments while riding!
