15 ELECTRICAL SYSTEM 135

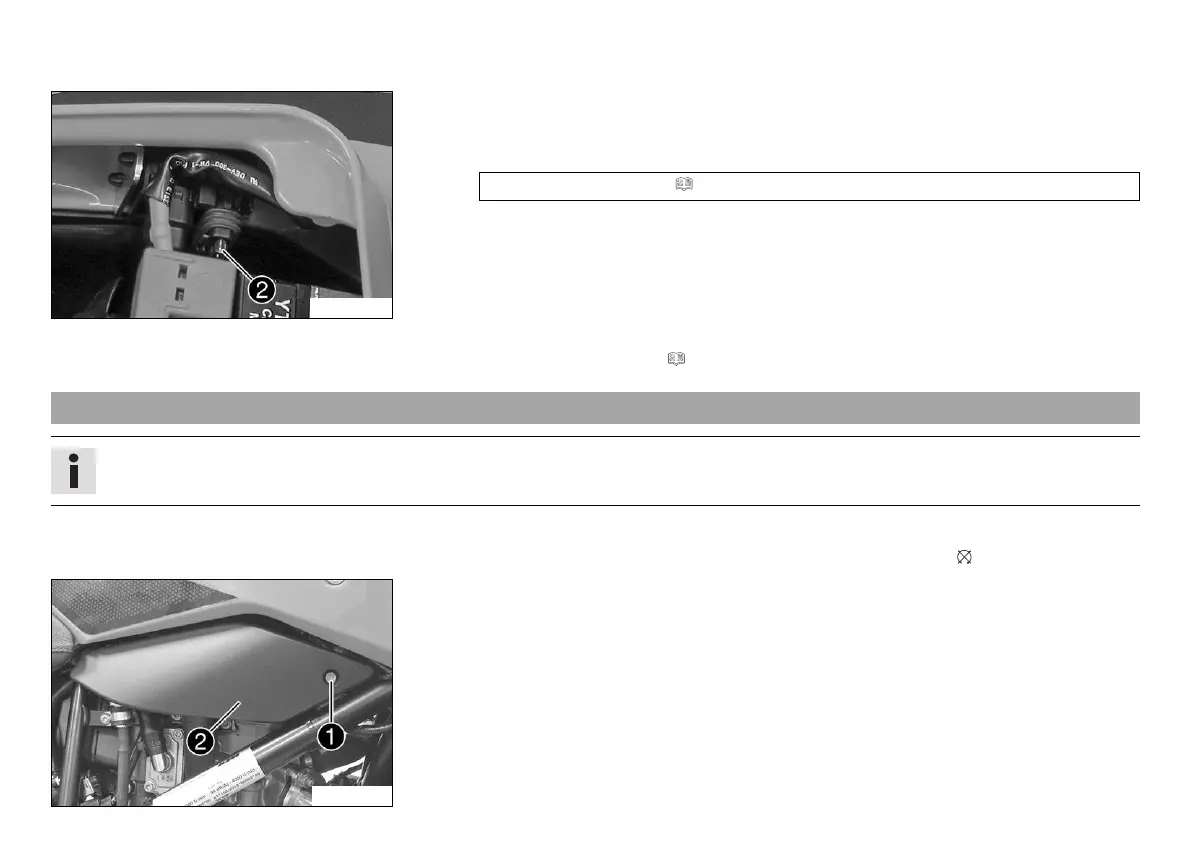

K00363-10
To change the fuse of the ABS return pump:
–
Remove the protection cap and fuse

.
– Insert a new fuse.
Fuse (58011109125) ( p. 181)
– Mount the protection cap.
Finishing work
– Mount the passenger seat. ( p. 86)
15.6 Changing the fuses of individual power consumers
Info
The fuse box containing the fuses of individual power consumers is located on the right under the fuel tank.
Preparatory work
– Switch off the ignition by turning the ignition key to the position .
V00084-10
Main work
–
Remove screw

.
–
Remove

the trim.
