KTM 2016 690 DUKE R - Installing the Front Wheel

14 WHEELS, TIRES 114
602546-10
–

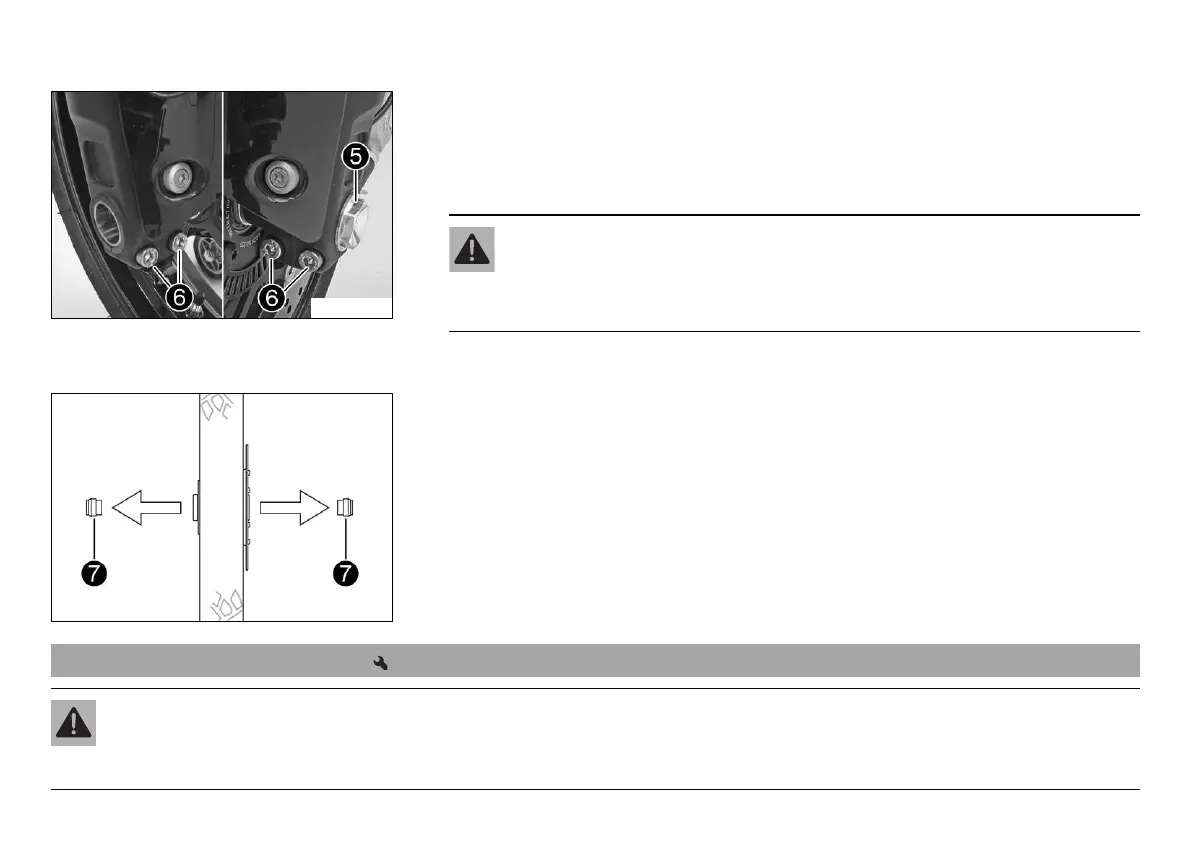

Loosen screw

by several rotations.
–
Loosen screws

.
–
Press on screw

to push the wheel spindle out of the axle clamp.
–
Remove screw

.
Warning
Danger of accidents Reduced braking effect caused by damaged brake discs.
– Always lay the wheel down in such a way that the brake discs are not dam-
aged.
– Hold the front wheel and remove the wheel spindle. Take the front wheel out of the
fork.
H00934-12
–
Remove spacers

.
14.2 Installing the front wheel
Warning
Danger of accidents Reduced braking efficiency due to oil or grease on the brake discs.
– Always keep the brake discs free of oil and grease, and clean them with brake cleaner when necessary.
