14 WHEELS, TIRES 115

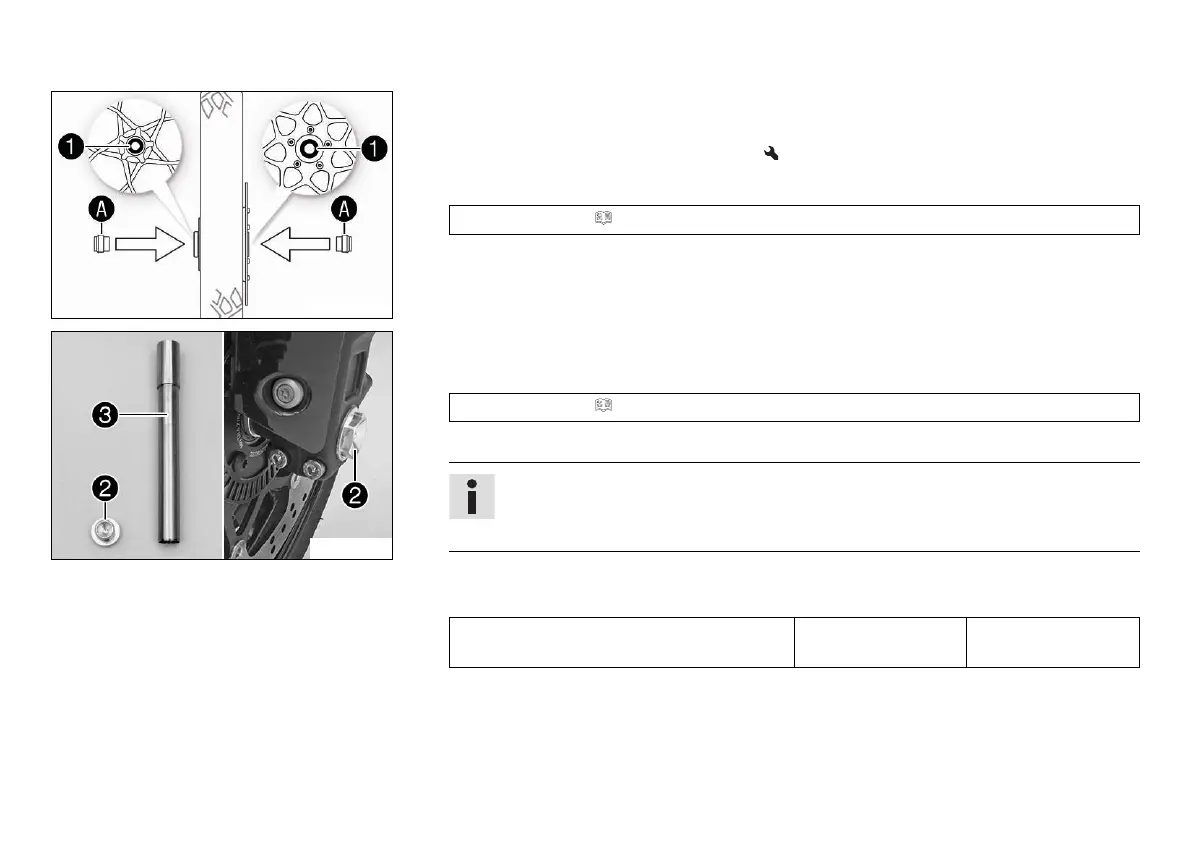

H01071-10
– Check the wheel bearing for damage and wear.
» If the wheel bearing is damaged or worn:
– Change the front wheel bearing.
–
Clean and grease shaft seal rings
and mating surfaces
of the spacers.
Long-life grease ( p. 193)
– Insert the spacers.
K00430-10
–
Clean screw
and wheel spindle
.
–
Grease wheel spindle
.
Long-life grease ( p. 193)
– Lift the front wheel into the fork, position it, and insert the wheel spindle.
Info
The arrow on the rim, near the hub, shows the direction of travel.
The brake disc is located on the left in the direction of travel.
–
Mount and tighten screw
.
Guideline
Screw, front wheel spindle M24x1.5 45 Nm
(33.2 lbf ft)
